Today, I will introduce to youZhang Zhang/Wang Lei Team from Tangdu Hospital, Air Force Medical UniversitySharing of TEVAR Surgery with In-situ Reconstruction of Aortic Arch Branches Using Only 0.018" CTO Guidewire Soft Tip. The patient had an aortic arch aneurysm, with a diameter expansion of 51mm located in the anterior wall of the aortic arch. The lesion extended proximally to involve the root of the left subclavian artery, leaving an insufficient proximal anchoring zone. It was necessary to extend the proximal anchoring zone and reconstruct the left subclavian artery branch. However, the distance between the left common carotid artery and the left subclavian artery was only 6mm. What surgical plan should be chosen to effectively occlude the aneurysm lesion and efficiently reconstruct the left subclavian branch while ensuring long-term prognosis? Zhang Zhang/Wang Lei's team applied the Percutek Therapeutics thoracic aortic stent graft to effectively occlude the aortic arch aneurysm lesion. They used only the 0.018" CTO guidewire soft tip and completed the reconstruction of the left subclavian artery efficiently through the in-situ fenestration technique. The patient had a good postoperative outcome.
Age:64 years old
Gender:Male
Chief Complaint:Pulmonary nodules found for over 3 years.
History of Present Illness:A left lung nodule was discovered in another hospital 3 years ago. Two days ago, a chest CT performed at another hospital due to high blood pressure indicated malignant changes in the left lung and aneurysmal dilation of the aortic arch. The patient was subsequently admitted to our hospital for further diagnosis and treatment, and was enrolled in the outpatient department with "lung mass."
Past Medical History:Previously healthy. Has a history of hypertension for over 20 years, with the highest blood pressure recorded at 180/90 mmHg. Regular medication has kept it under control. History of coronary heart disease for 6 years. Underwent cholecystectomy for gallstones at another hospital more than twenty years ago.
Preoperative Diagnosis:Aortic aneurysm, Hypertension grade 3 (very high risk), Coronary heart disease, Pulmonary mass (upper left).
Detailed Explanation of CTA:Localized aneurysm-like dilation of the aortic arch, with a diameter of approximately 51*42mm, and the proximal end has involved the root of the left subclavian artery. The left subclavian artery is tortuous, with its root located on the anterior wall of the aortic arch, forming an acute angle of only 30° with the aorta. The distance between the left common carotid artery and the left subclavian artery is only 6mm. Multiple calcified plaques, non-calcified plaques, and mixed plaques have formed in the walls of the aortic arch and descending thoracic aorta, causing mild local lumen stenosis. Central-type lung cancer with obstructive pneumonia. Calcified plaques are present in the coronary artery pathways bilaterally.

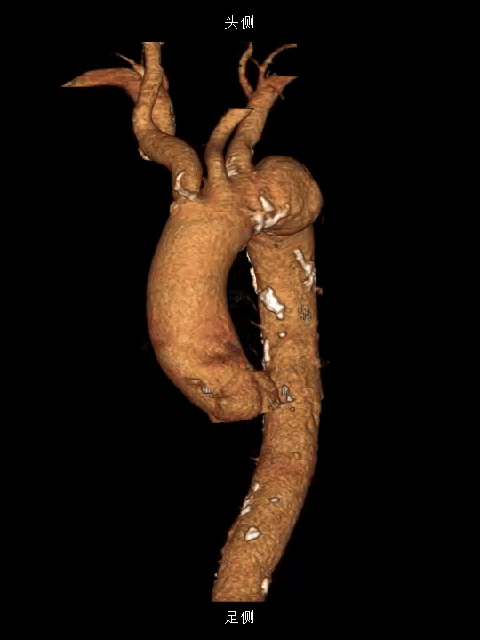

Preoperative Three-dimensional Reconstruction

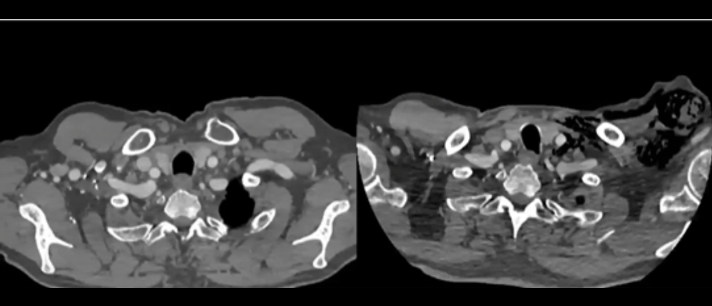

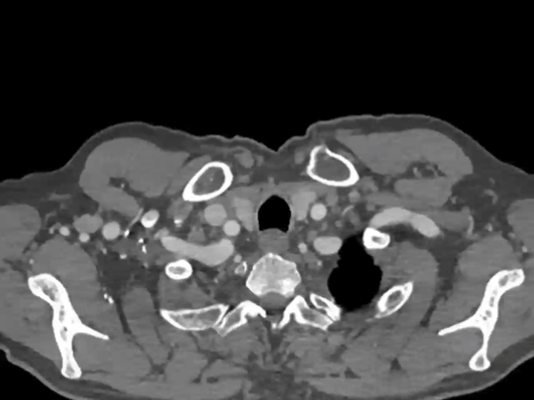

Preoperative CTA Cross-Section

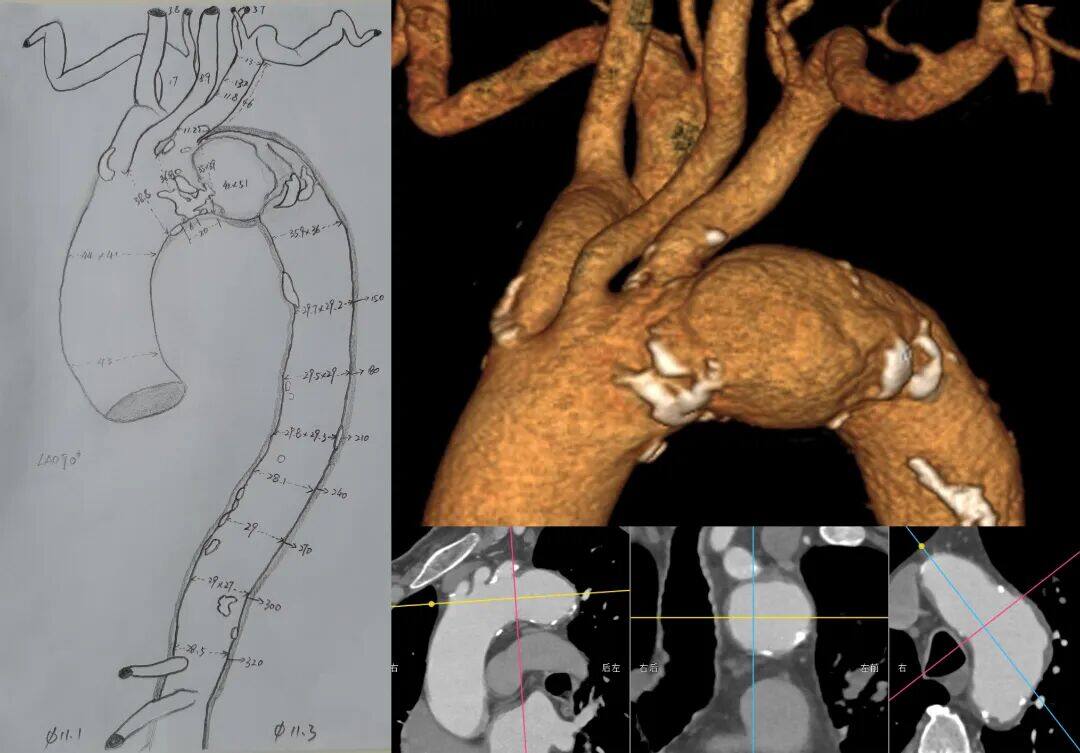

Measurement Data
Aneurysm of the aortic arch, located at the anterior wall of the arch, with the proximal end already involving the root of the left subclavian artery. The proximal anchoring zone is significantly insufficient, and the distance between the left common carotid artery and the left subclavian artery is only 6mm. It is necessary to extend the anchoring zone proximally and reconstruct the left subclavian artery.
The left subclavian artery originates from the anterior wall of the aortic arch, with tortuosity, stenosis, and angulation, forming an acute angle with the aortic arch. This presents challenges for in-situ fenestration angle control during surgery. Additionally, common covered stents on the market pose significant difficulties for fenestration.
The diameter of the aortic arch aneurysm is significantly enlarged, requiring high proximal sealing performance for the thoracic aortic stent graft.
Multiple calcifications in the aortic arch should be handled with gentle manipulation.
Surgical Plan Strategy
Endovascular Repair of Thoracic Aortic Stent Graft Directly Covering the Left Subclavian Artery:The operation is simple and the effect is clear, but covering the left subclavian artery may cause clinical manifestations of posterior circulation ischemia and upper limb ischemia in patients.
Endovascular Repair of Thoracic Aortic Stent Graft + Left Subclavian Artery Chimney Technique:The surgical procedure is relatively simple, but the left subclavian artery is tortuous and stenotic, with a high risk of endoleak and occlusion, and the mid-to-long term outcomes are suboptimal.
Endovascular Repair of Thoracic Aortic Stent Graft with In Vitro Fenestration:The closure effect of the lesion is good, which can preserve the original hemodynamic characteristics, but the operation is complex. The stent needs to be modified according to the measurement results before the surgery, which takes a long time; during the surgery, precise positioning of the ultra-selection window is required, posing higher risks.
Single-branched Stent Thoracic Endovascular Aortic Repair:The lesion closure effect is good, but the left subclavian artery is angulated, increasing the risk of branch stent occlusion in the long term.
Endovascular Repair of Thoracic Aortic Stent Graft + In-situ Fenestration:The lesion closure is effective, and there is no need to modify the stent before surgery. However, the in-situ fenestration of traditional aortic covered stents has higher requirements for interventional devices, necessitating special membrane-piercing instruments such as in-situ fenestration needles, lasers, and biopsy needles.
The proximal end of the main body of Percutek Therapeutics' thoracic aortic stent graft can be easily fenestrated in situ using only a 0.018" CTO guidewire with a soft tip. Considering the mid-to-long term treatment outcomes and the simplicity of intraoperative manipulation, after comprehensive evaluation, the Zhang Zhang/Wang Lei team chose Percutek Therapeutics' Tianyi.®Endovascular repair of the thoracic aorta with a covered stent graft and reconstruction of the left subclavian artery using in-situ fenestration technology.
Endovascular Repair of Thoracic Aortic Aneurysm + Single-Stent In-situ Fenestration
01. The patient was placed in the supine position, routinely disinfected, and covered with sterile drapes. After successful general anesthesia, the right femoral artery was punctured, and a short sheath was introduced for standby use. The left brachial artery was incised, and a guidewire was inserted through puncture. An 8.5F steerable sheath was placed, and a gold-marker pigtail angiography catheter was guided to the ascending aortic level for angiography, which showed a large aneurysm-like dilation of the aortic arch, consistent with the preoperative CT.

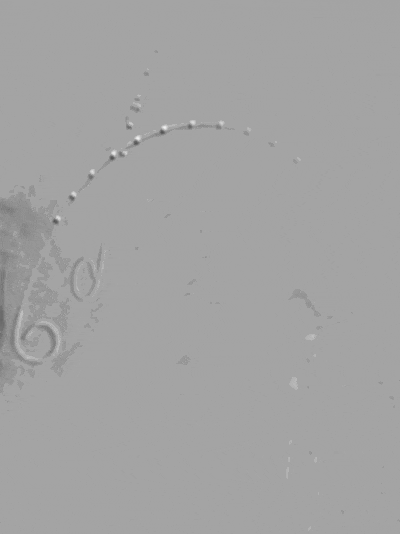

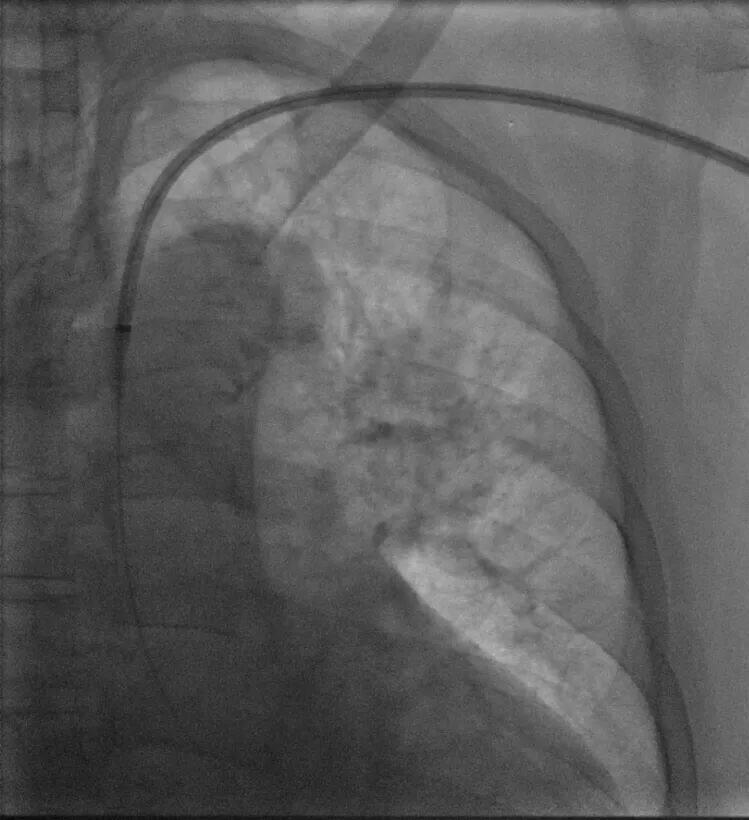

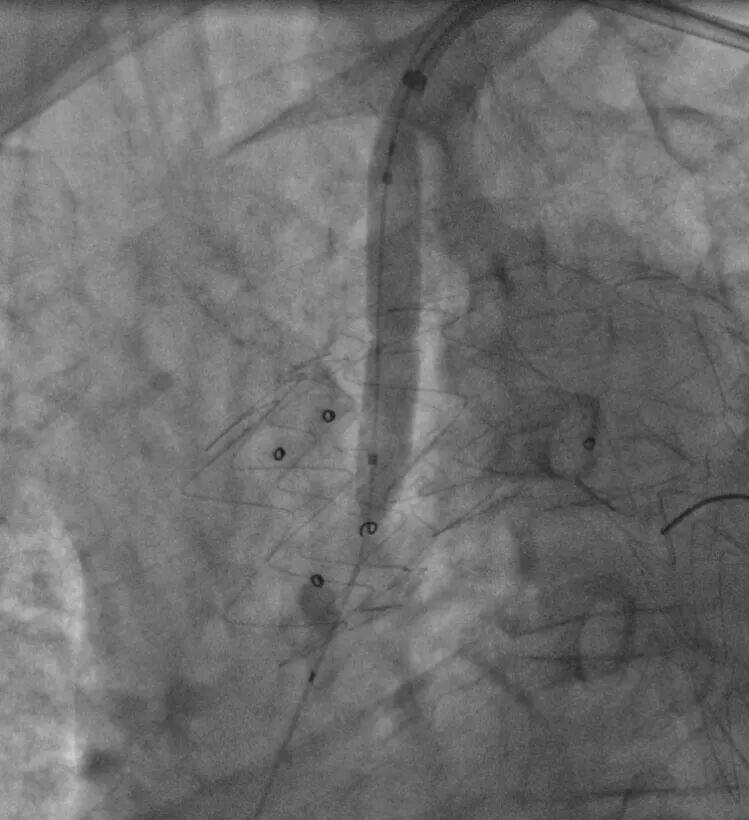

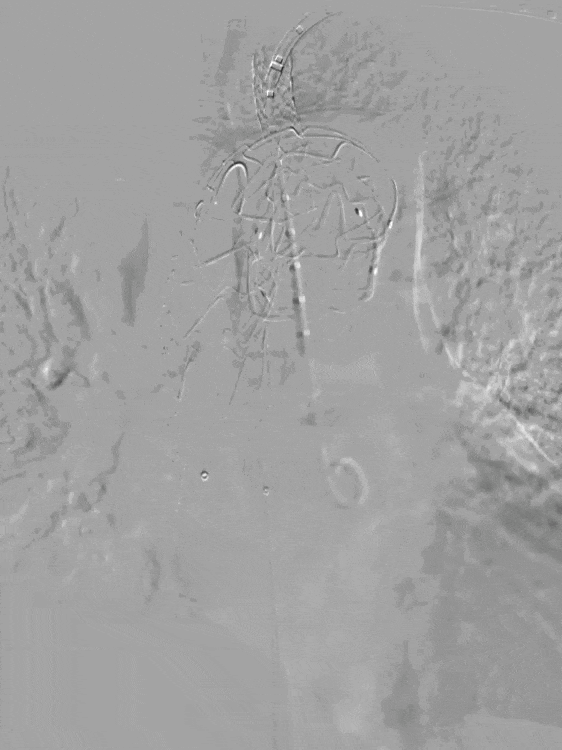

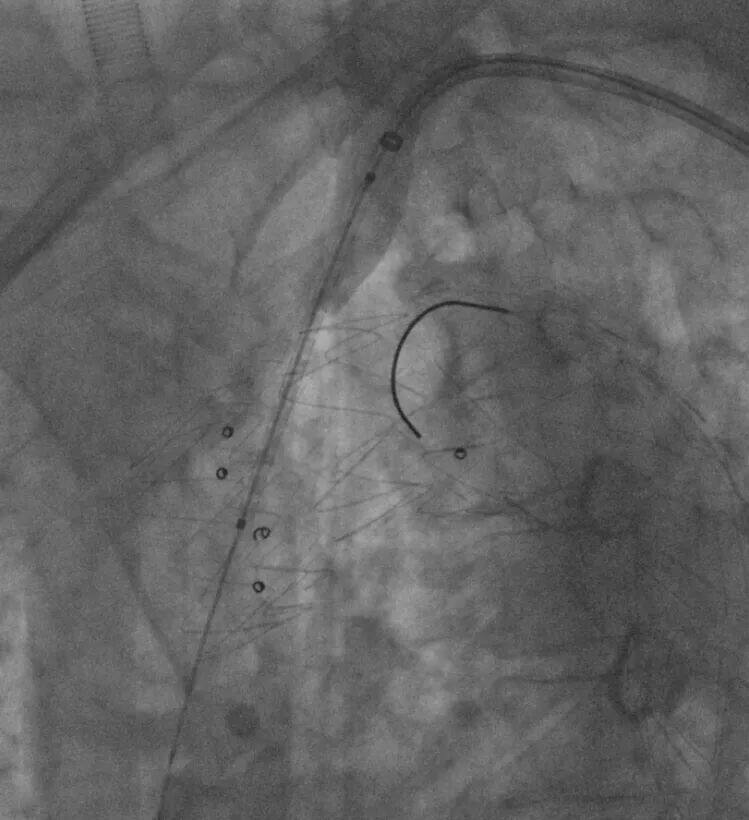

LAO Angiography

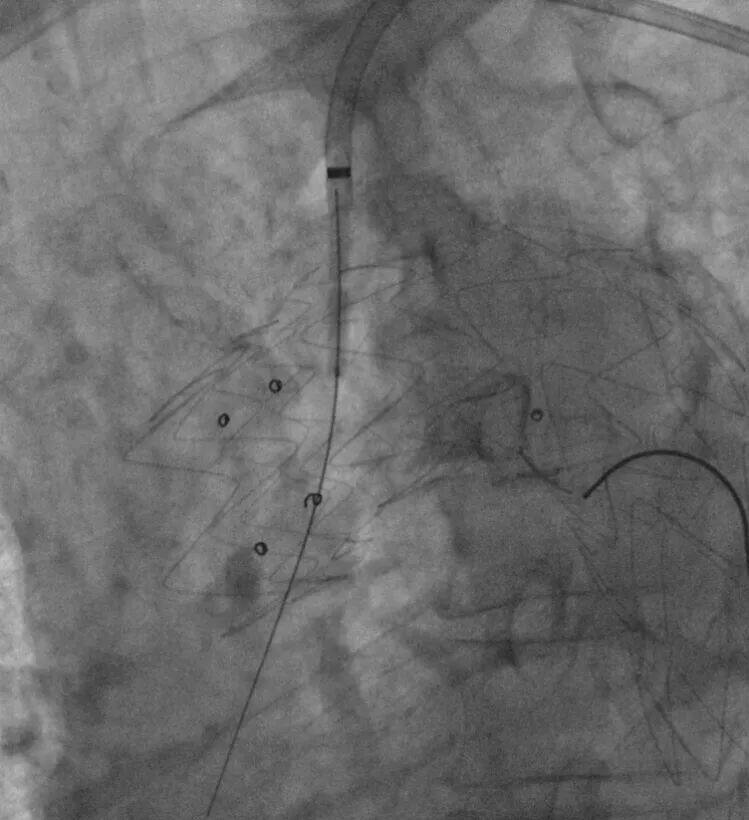

RAO Angiography
02. Accurately measure the aortic diameter at the distal end of the root of the left common carotid artery during the operation to determine the model of the Percutek Therapeutics thoracic aortic stent graft. Introduce the Lunderquist super-stiff guidewire through the right femoral artery, withdraw the gold-marker pigtail catheter, and deliver the Percutek thoracic aortic stent graft system. Precisely position it at the distal end of the root of the left common carotid artery, release 2-3 segments, confirm the position again, then release the entire stent and the post-release bare stent. Another angiography showed: precise stent positioning, good expansion, no angular deformity, good blood supply to the left common carotid artery, and no significant endoleak.
Implantation of Percutek Thoracic Stent
Proximal positioning at the distal root of LCCA
Slow Release 2 Sections to Confirm Position Again

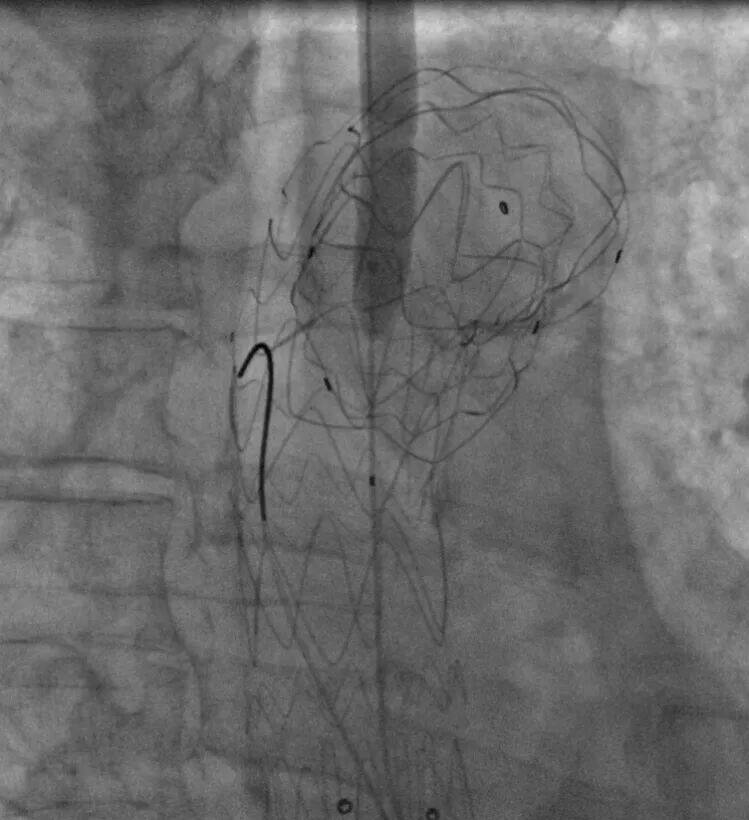

Full Release Stent
03. A single-bend catheter was introduced via the left brachial artery sheath, with the tip positioned at the covered stent in the aortic arch. A 250T guidewire was inserted and used in conjunction with the single-bend catheter to successfully perform an in-situ fenestration at the root of the left subclavian artery. Hand-injected contrast confirmed that the guidewire had entered the covered stent.

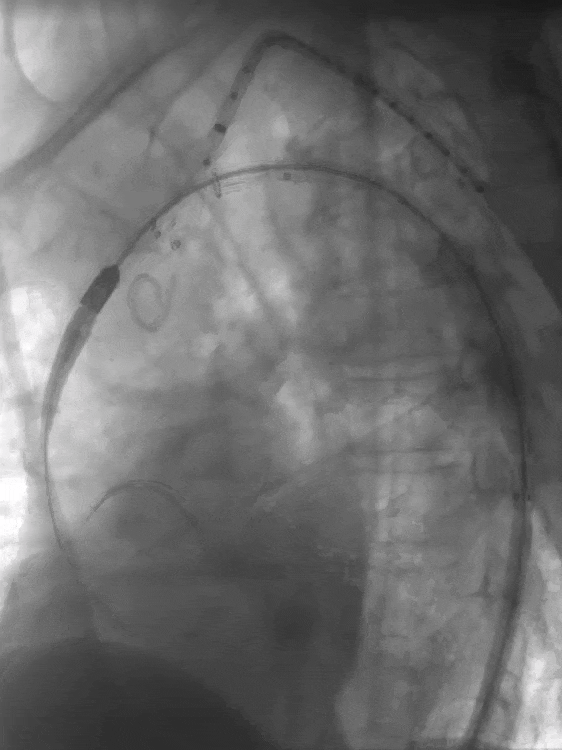

Insert single-bend catheter and 250T guidewire

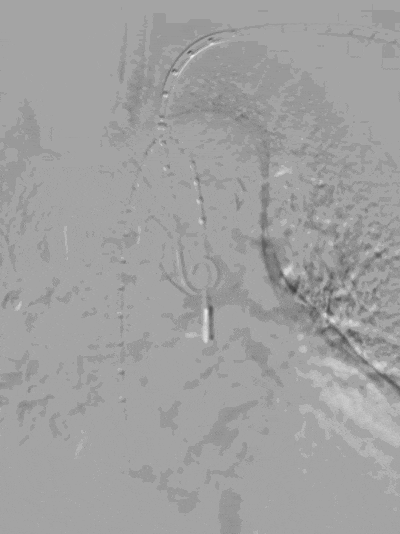

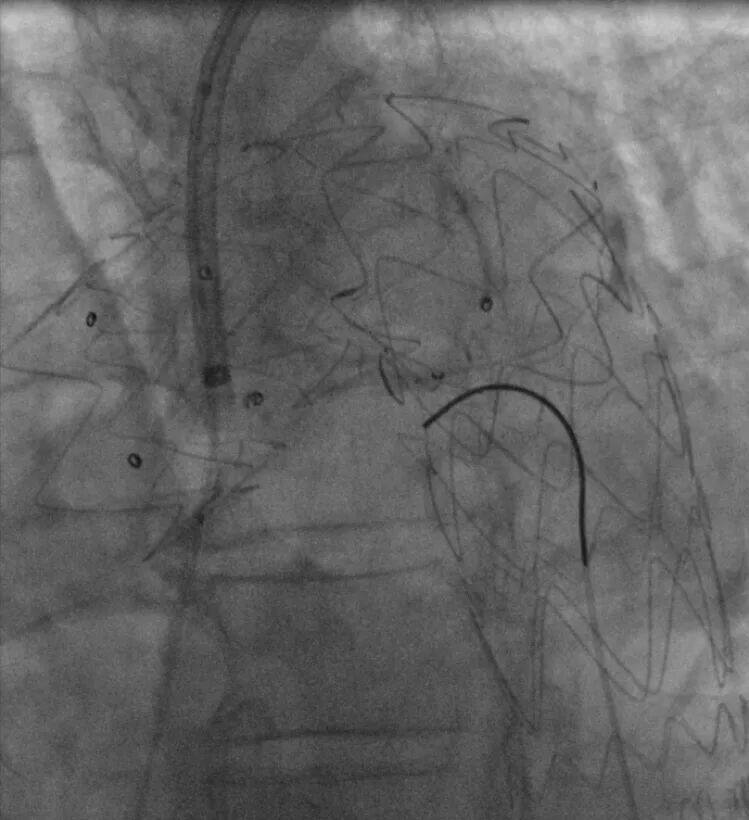

250T Guidewire Successfully Penetrates the Membrane at the Root of LSA
04. Sequentially dilate the fenestration using 3-30mm Sterling balloons and 8-40mm Mustang balloons, and pass through the aortic fenestration site using the balloon-with-sheath technique.

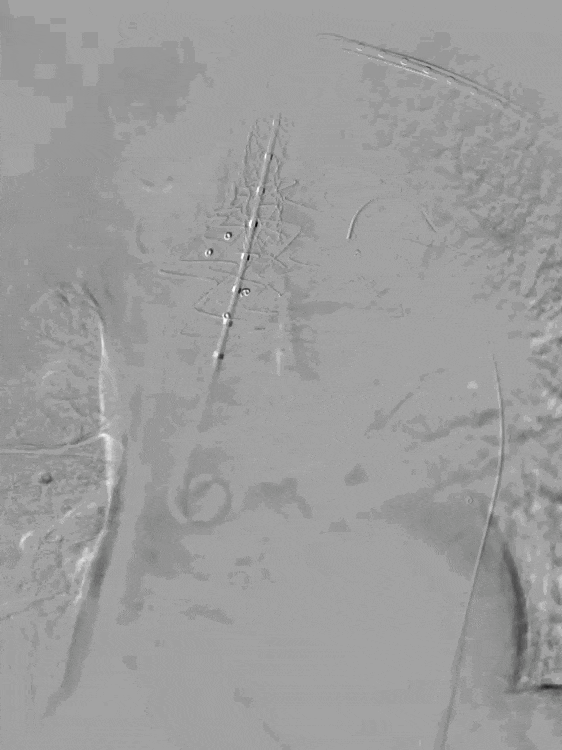

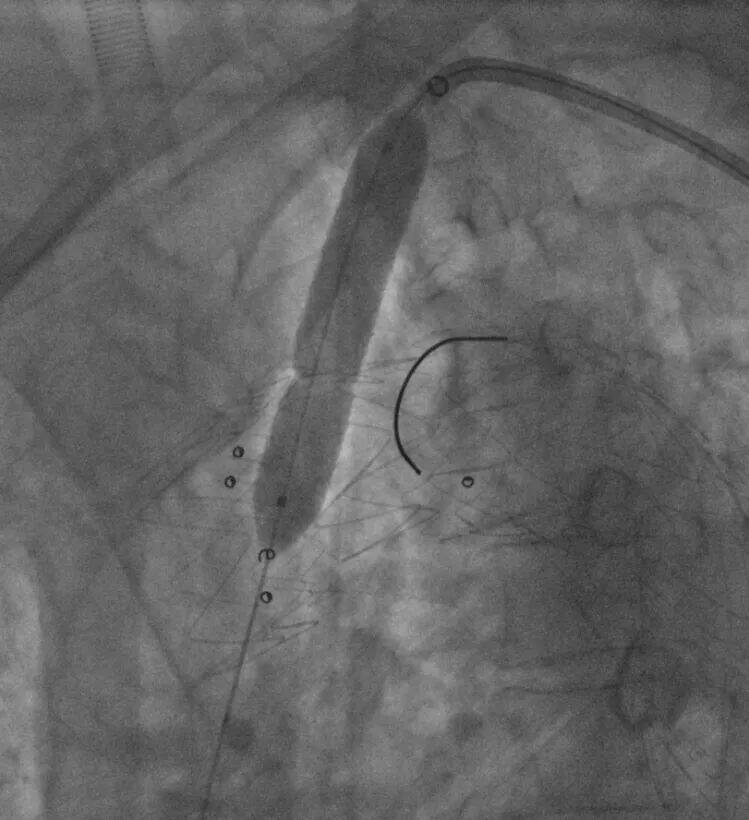

3-30mm Balloon Dilation

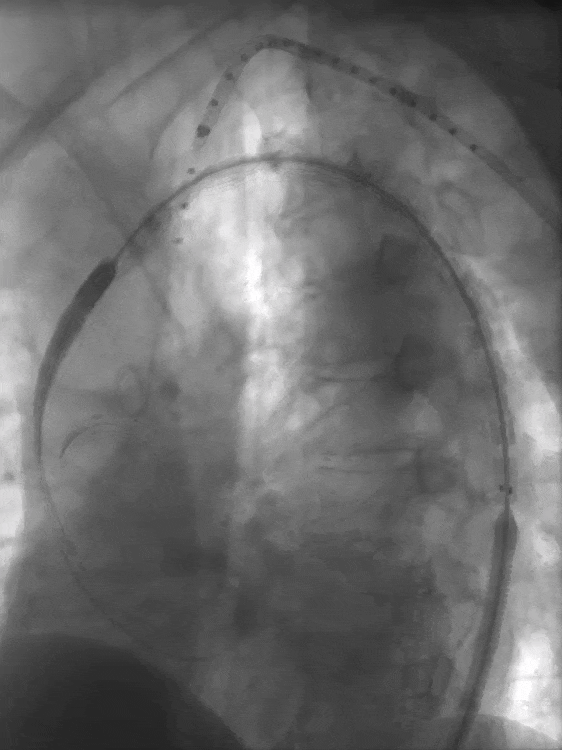

8-40mm Balloon Dilation

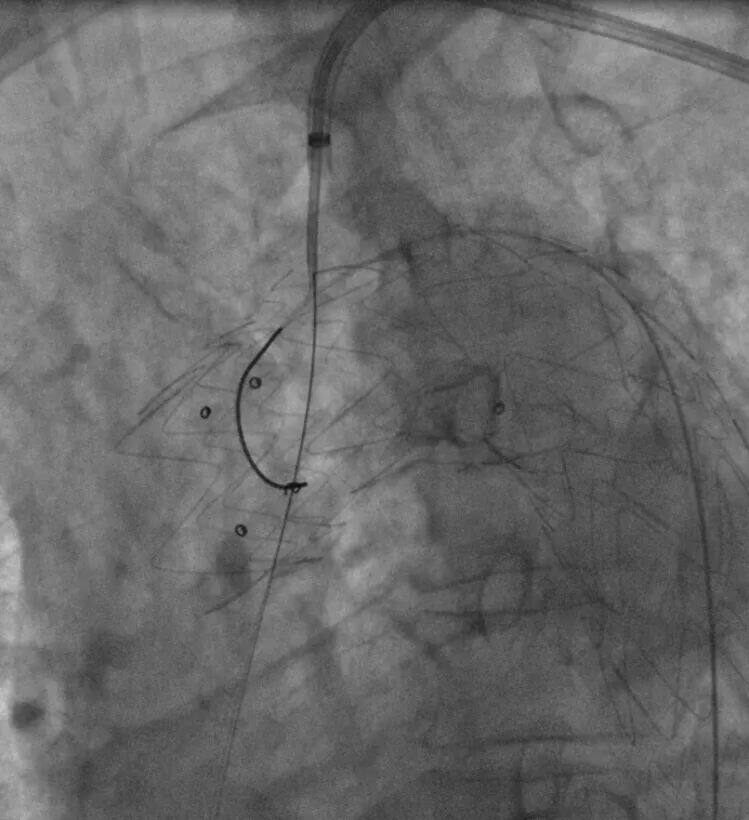

RAO Confirmation
Balloon with sheath into the membrane
05. Angiography of the left subclavian artery showed: Minimal contrast agent leakage from the left subclavian artery. A 12-58mm Lifestream balloon-expandable covered stent was implanted and deployed.
Import LifeStream Stent
Balloon-Expandable LifeStream Stent
06. The final angiography showed satisfactory results, with the thoracic aortic stent in good position, smooth blood flow, no significant endoleak, good blood supply to the three branches above the arch, positive blood flow in the left subclavian artery, and good visualization of the bilateral carotid arteries, vertebral arteries, and intracranial arteries.

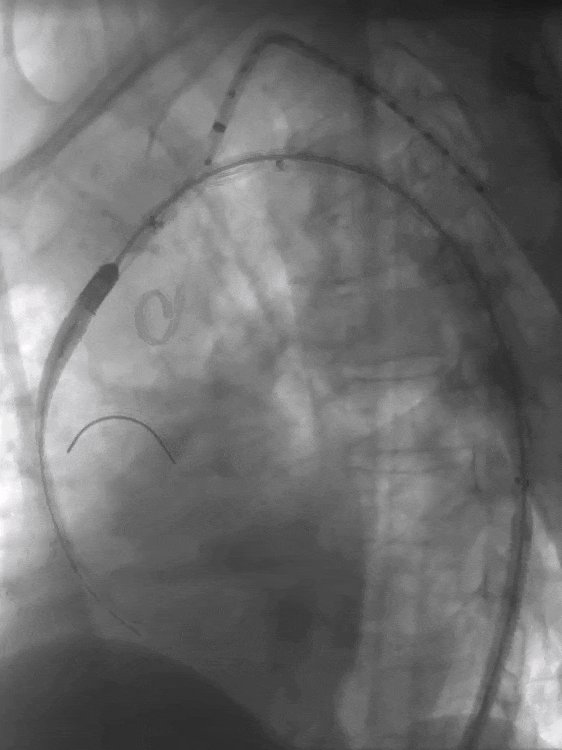

Angiography after LAO surgery

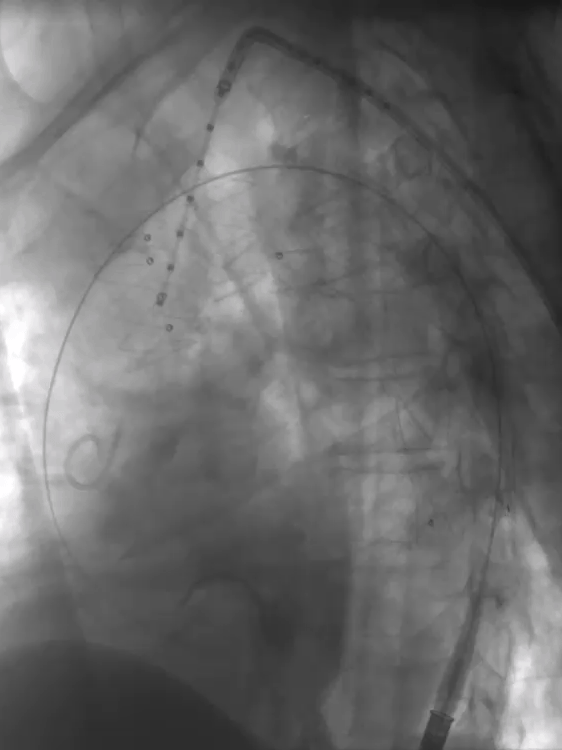

Angiography after RAO surgery
07. Withdraw the stent delivery system, catheters, guidewires, and other interventional treatment facilities. Inspect the left brachial artery, suture the arterial puncture site, close the surgical incision, and apply pressure dressing to the puncture site and surgical incision. The surgery is completed, achieving the expected preoperative outcome.
One-month postoperative review compared with preoperative

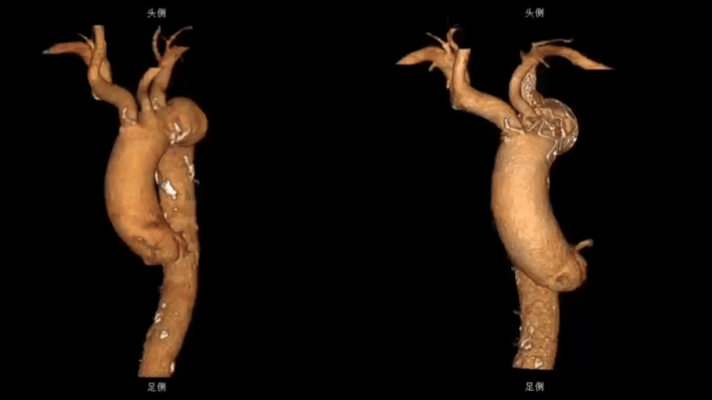

Preoperative/Postoperative 3D Reconstruction
Preoperative/Postoperative CTA Cross-Section
Two weeks after the surgery, the patient underwent tumor resection in the thoracic surgery department and was followed up. One month after the surgery, the复查 showed good recovery, with no signs of cerebral infarction or cerebral ischemia. The aortic arch aneurysm was completely isolated, and the branch stent was patent with a good morphology.
Summary of Case Experience
This case study involves a patient with an aortic arch aneurysm, where the lesion's proximal end has extended to the root of the left subclavian artery, leaving an insufficient proximal anchoring zone. Additionally, the distance between the left common carotid artery and the left subclavian artery is only 6mm, necessitating the extension of the proximal anchoring zone and reconstruction of the left subclavian artery. Moreover, the left subclavian artery originates from the anterior wall of the aortic arch, with tortuosity, stenosis, and angulation, forming an acute angle with the aortic arch, which presents challenges for in-situ fenestration angle control during surgery. After careful consideration of the surgical plan, including the selection of the procedure type and stent graft, the Zhang Zhang/Wang Lei team chose the Percutek Therapeutics thoracic stent graft system for this case. Using only a 0.018" 250T CTO guidewire with a soft tip, they successfully punctured the membrane, efficiently completing the supra-aortic reconstruction of the left subclavian artery. The Percutek Therapeutics thoracic aortic stent graft demonstrated precise proximal positioning, with the fenestration area being easily penetrable and expandable. The membrane could be instantly punctured using just the soft tip of the CTO guidewire. The balloon dilation process was simple, safe, and reliable, and after stent implantation, the morphology was excellent with good sealing of the lesion, no endoleak, clear outcomes, and favorable patient prognosis. Ultimately, the supra-aortic reconstruction results aligned with preoperative planning expectations.
