Case Report by Professor Liao Dan's Team: Combined Mechanical and Pharmacological Approach Using Dissolve™ AV Scoring Drug-Coated Balloon for Refractory Intimal Hyperplasia in AVF
DK Medtech
Vascular Interventional Balloon Product Developer
Stenosis of autologous/artificial arteriovenous fistula (AVF/AVG) is the most common complication in hemodialysis patients. Percutaneous transluminal angioplasty (PTA) has become the primary method for maintaining dialysis access. However, the blunt and irregular tearing of the intima and part of the media by traditional balloons during PTA can cause excessive damage to the endothelial vessels, leading to intense proliferation of vascular smooth muscle cells and macrophages, which rapidly results in restenosis.
In recent years, there has been continuous international exploration and clinical research on drug-coated balloons and other devices for PTA treatment of dialysis access. DK Medtech has developed the Dissolve™ AV Scoring Drug Balloon, which integrates the three features of "scoring," "high pressure," and "drug coating." This is the world's first third-generation drug balloon:
Directional Scoring: Uniform and regular tearing of the intima to reduce damage from blunt splitting.
High Burst Pressure: For high-resistance lesions, improving technical success rate.
Paclitaxel Coating: Effectively Inhibits Excessive Proliferation of Smooth Muscle Cells.
DK MedtechSpecial Launch[Mianyang Central Hospital - Professor Liao Dan's Team: A Case of AVF Refractory Intimal Hyperplasia and Stenosis - Soft and Hard Combined] Case Presentation, demonstrating the meticulous operation of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, perioperative management, etc., the aim is to promote the standardization of diagnosis and treatment for hemodialysis access stenosis, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future hemodialysis access diagnosis and treatment, benefiting more clinical patients.
Combination of Soft and Hard
A Case of Refractory Intimal Hyperplasia and Stenosis in AVF
Liao Dan, Mianyang Central Hospital
Patient Information
Basic Information:Male, 57 years old.
Chief Complaint:More than 5 years of maintenance hemodialysis, poor function of the internal fistula for over 10 days.
History of Present Illness:More than 5 years ago, the patient was diagnosed with "uremia" at another hospital and underwent the creation of an autologous arteriovenous fistula in the left forearm. After the fistula matured, the patient began maintenance hemodialysis treatment, which has continued to the present. During this period, poor blood flow in the fistula was noted, and the patient underwent multiple "fistula balloon dilation procedures." About 10 days ago, while undergoing dialysis, the patient noticed reduced blood flow and reported that the thrill of the fistula felt weaker upon touch, with only slight pulsation and thrill detectable. For further diagnosis and treatment, the patient visited our hospital and was admitted to the department with a diagnosis of "arteriovenous fistula stenosis."
Past Medical History:A history of "hypertension" and "diabetes" for over 10 years, regular dialysis treatment (multiple instances of poor blood flow found on Mon, Wed, Fri during the week, underwent "fistula balloon dilation"), denies history of trauma, denies history of blood transfusion, denies history of drug or food allergies.

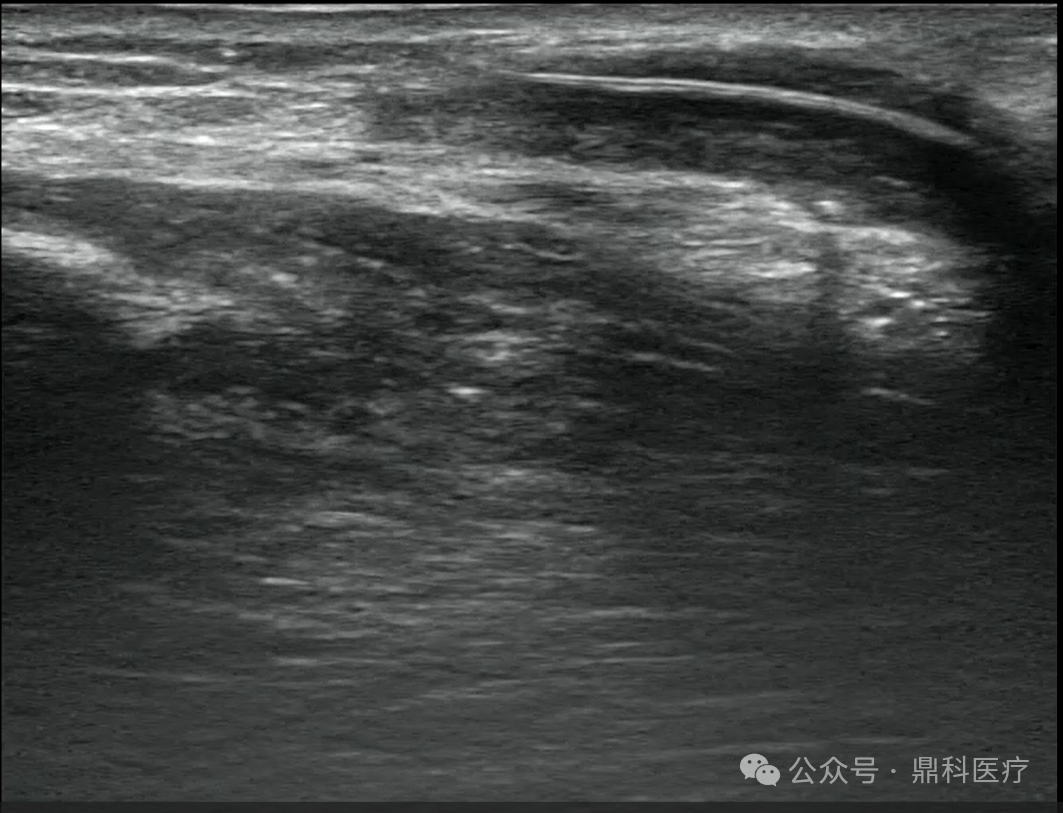

Physical Examination:Visual Examination: A longitudinal surgical scar approximately 2.5 cm in length is visible 2 cm above the transverse wrist crease on the left upper limb. Two puncture scars with pigmentation are visible on the forearm, without obvious tumor-like dilation or skin lesions. Palpation: Normal skin temperature on both upper limbs; a distinct pulse and weak thrill can be palpated at the arteriovenous fistula anastomosis site and 3 cm above it. Auscultation: A unidirectional blowing murmur can be heard at the arteriovenous fistula anastomosis site, and a high-pitched blowing murmur can be heard approximately 3 cm above the anastomosis.
Admission Diagnosis:
Stenosis of Arteriovenous Fistula;
Chronic Kidney Disease Stage 5;
Type 2 Diabetes;
Grade 3 Hypertension, Very High Risk.
Previous interventional treatment
Time | Main Treatment Process |
2019.6 | Left Upper Limb Autologous Arteriovenous Fistula |
2020.4 | Stenosis of arteriovenous fistula in the left upper limb, underwent PTA treatment (specific balloon usage unknown) at another hospital. |
2021.6 | Stenosis of arteriovenous fistula in the left upper limb, underwent PTA treatment (specific balloon usage unknown) at another hospital. |
2022.6 | Thrombosis of arteriovenous fistula in the left upper limb, PTA treatment performed (specific balloon usage unknown) at another hospital. |
2022.12 | Stenosis of arteriovenous fistula in the left upper limb, underwent PTA treatment (specific balloon usage unknown) at another hospital. |
2023.4 | Stenosis of arteriovenous fistula in the left upper limb, PTA treatment performed (specific balloon usage unknown) at another hospital. |
2023.7 | Thrombosis of arteriovenous fistula in the left upper limb with Type I stenosis, treated with PTA (high-pressure balloon 5*40mm + 6*40mm). |
2023.10 | Left Upper Limb Arteriovenous Fistula with Type I Stenosis, Treated with PTA (High-Pressure Balloons 4*40mm + 6*40mm) |
Preoperative Analysis
Preoperative Analysis:The patient has a lesion in the arteriovenous fistula of the left upper limb, with intimal hyperplasia and stenosis, and has undergone PTA treatment seven times in the past. The effect of the last PTA treatment only lasted for three months, and changing the treatment method is required to improve the therapeutic effect for the next dilation. This time, the use of a scoring drug-coated balloon is being considered.
Surgical Objective:
Main Objectives:Addressing the issue of insufficient patient flow by increasing vascular diameter through PTA treatment with a scored drug-coated balloon.
Secondary Objectives:Extend the interventional interval for patients, reduce the number of interventions, suppress intimal hyperplasia, and improve fistula patency rate.
Surgical Strategy/Plan:
B-ultrasound-guided percutaneous transluminal balloon angioplasty of left upper limb arteriovenous fistula (Dissolve™ AV).

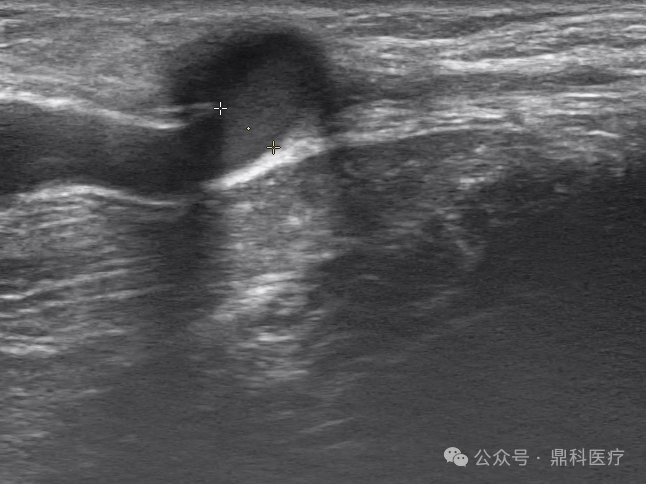

S：0.7mm
S: 0.7mm; Length 29mm
Proximal A Diameter 3.2mm

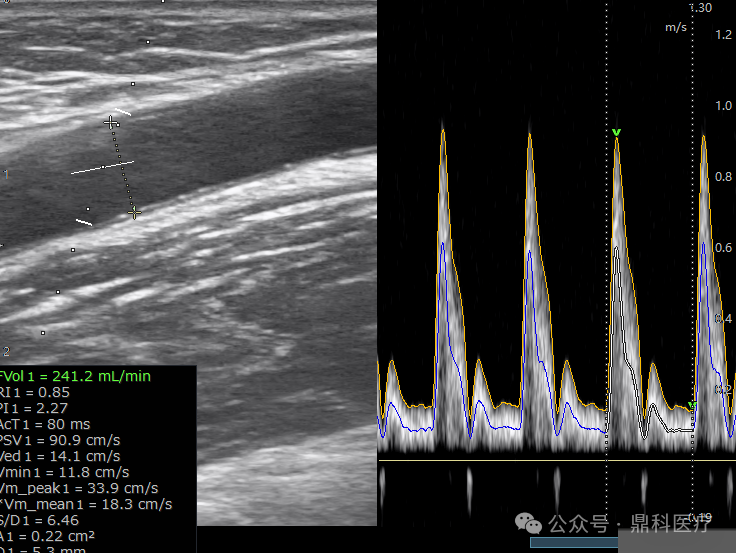

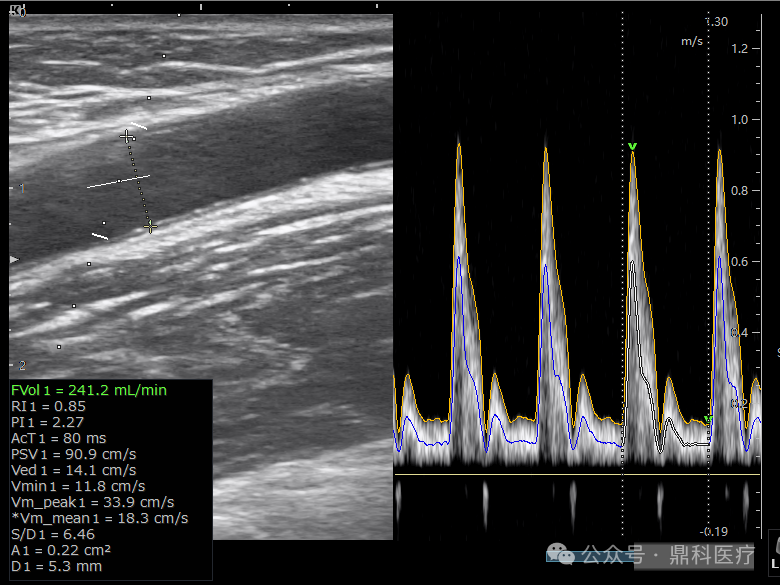

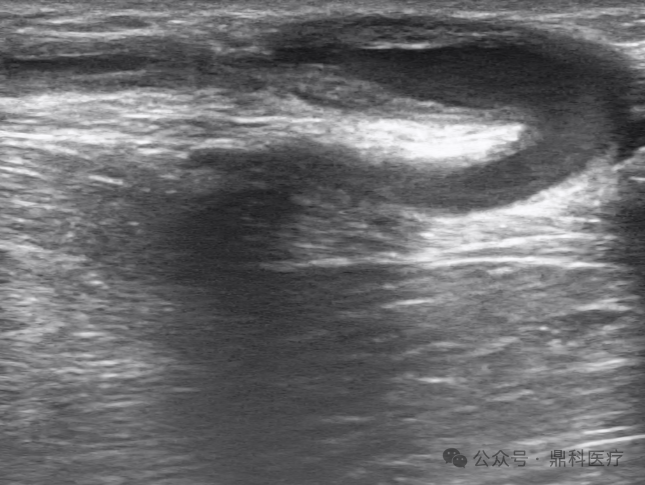

Preoperative brachial artery flow: 241.2ml/min, RI: 0.85
Surgical Procedure

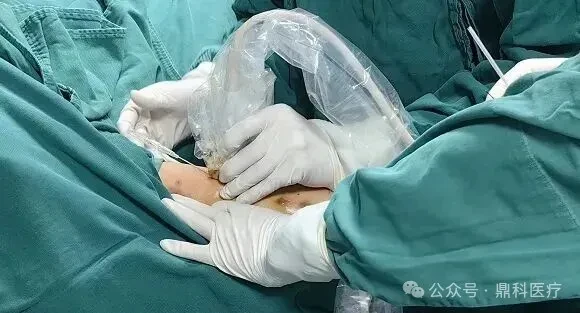

Under color Doppler ultrasound guidance, retrograde puncture of the median cubital vein was performed to establish access. After successful puncture, a 7F vascular sheath was inserted.
The guidewire passes through the stenotic segment of the vessel and enters the proximal radial artery.
Prepare 6mm×6cm scored drug balloon (DK Medtech Dissolve™ AV) with heparin saline flush.
A scoring drug-coated balloon (DK Medtech Dissolve™ AV) was introduced through a vascular sheath. The balloon was expanded at the stenotic site and maintained for 3 minutes. After withdrawing the balloon, the effect of lesion vessel dilation was evaluated.
Postoperative Effect

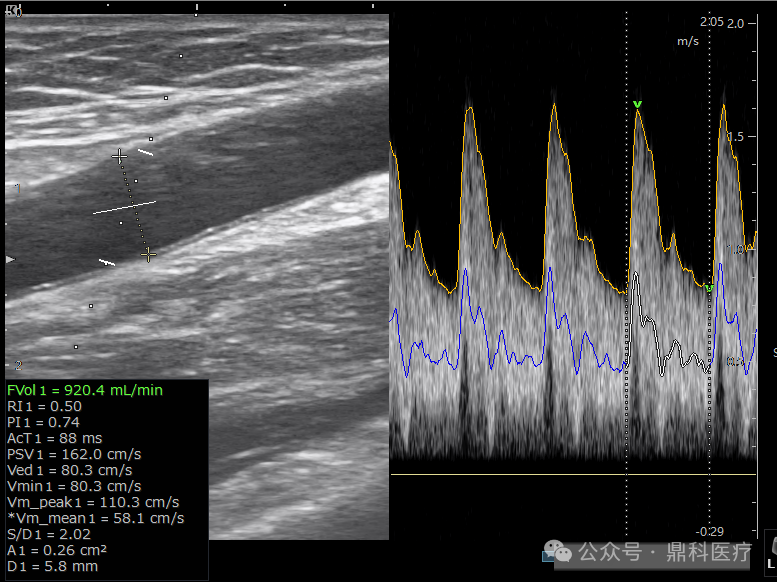

Through the use of a scored drug-coated balloon (DK Medtech Dissolve™ AV), the patient's stenotic area expanded from 0.7mm to 4.1mm; brachial artery flow increased from 241.2ml/min pre-operation (RI: 0.85) to 920.4ml/min post-operation (RI: 0.5).
Follow-up
Discharge Status:Postoperative arteriovenous fistula showed good thrill, no abnormal pulsation was palpated. After the patient was discharged, the dialysis flow rate at the local dialysis center was 240 ml/min. The patient did not report pain at the fistula site or poor flow during dialysis. The patient was instructed to return to the hospital for reexamination one month after the surgery.
Case Summary
Case Characteristics:The patient has Type I stenosis of the arteriovenous fistula in the left upper limb, accompanied by intimal hyperplasia. The patient has previously undergone PTA treatment seven times, with the last dilation lasting for 3 months.

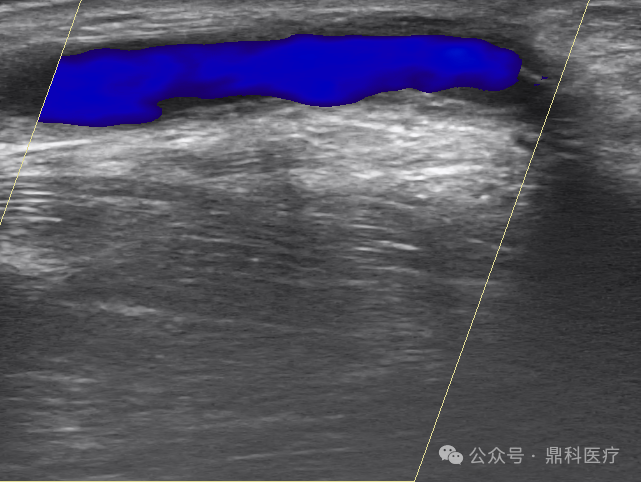

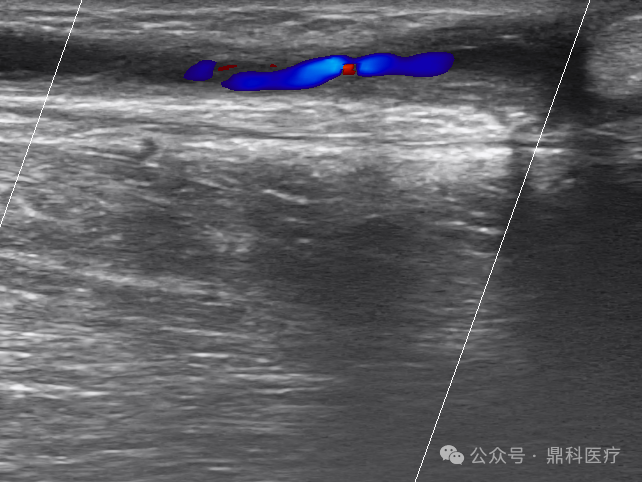

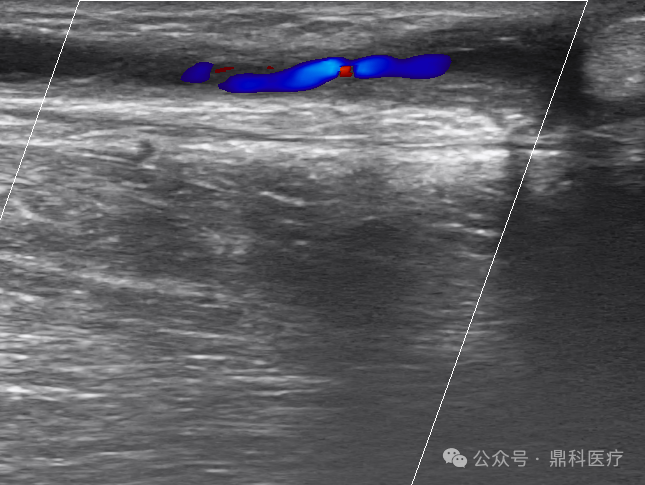

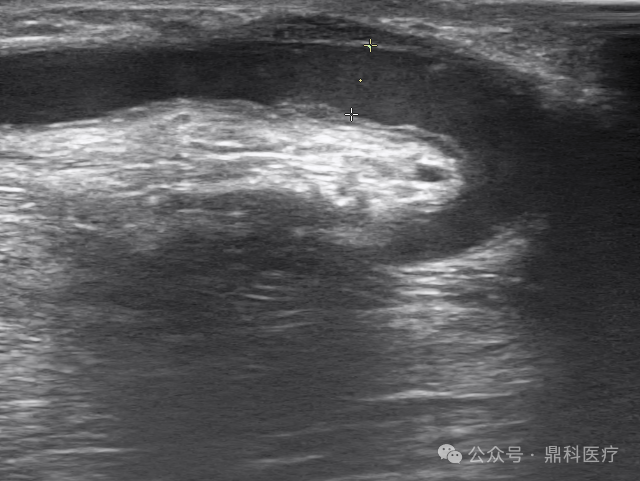

Preoperative Assessment Key Points:Preoperative Assessment and Reasonable Surgical Planning for Proliferation of Intima in Patient's Fistula Vessels. Preoperative ultrasound evaluation: proximal artery inflow diameter 3.2mm, anastomotic diameter 4.7mm, normal outflow tract diameter 5.1mm, brachial artery blood flow.241ml/min. Color Doppler ultrasound showed that the left upper limb was narrowed 3 cm away from the anastomosis, with the narrowest inner diameter of about 0.7 mm and intima thickness of 2.1 mm.
Surgical Strategy/Technical Key Points:
To fully dilate the hyperplastic intima, inhibit postoperative intimal hyperplasia, and address calcified stenotic lesions, the Dissolve™ AV scoring drug-coated balloon is the optimal choice, featuring high pressure, scoring, and drug coating advantages.
This case underwent angioplasty for arteriovenous fistula stenosis in April 2020. The effect was not ideal after using a high-pressure balloon, and multiple restenoses recurred shortly after the surgery.
The AV Peripheral Scoring Balloon Dilation Catheter, in addition to having high-pressure characteristics, features scoring elements on its surface that provide a pressure-focusing scoring effect. This enables effective and precise incision of the intima and fibrous ring, enhancing dilation efficiency and increasing lumen gain. The balloon surface is coated with paclitaxel, which effectively inhibits intimal hyperplasia at the lesion site, improving long-term patency rates.
In this case, it can be seen that the lesion was fully opened when pressurized to 19atm.
Features/Usage Tips of the Device:
The balloon catheter should be flushed with saline solution in the balloon lumen prior to the procedure, without soaking the balloon end, to avoid drug loss.

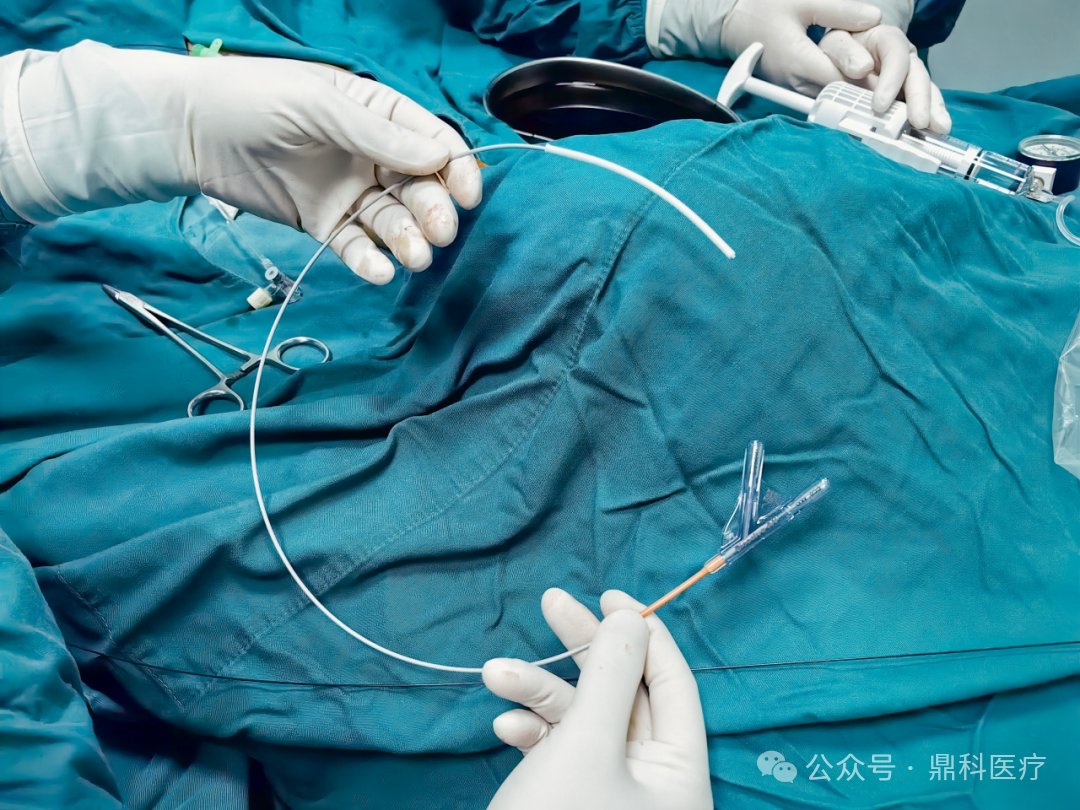

Without removing the coating protective sleeve, advance the balloon along the guidewire to the sheath opening until it is locked at the sheath opening;
The AV Peripheral Scoring Balloon Dilation Catheter is equipped with three nickel-titanium alloy triangular scoring elements on its surface and features a paclitaxel drug coating on the balloon surface. After achieving adequate dilation of the lesion, paclitaxel is used to inhibit the proliferation of the intima. In this case, after using the balloon once, the balloon was rotated approximately 60 degrees and then used again to dilate the lesion, allowing for more comprehensive treatment of the stenotic lesion.
This case adopts a 3-minute pressure retention this time, allowing for better drug adherence.
