Stenosis of autologous/artificial arteriovenous fistula (AVF/AVG) is the most common complication in hemodialysis patients. Percutaneous transluminal angioplasty (PTA) has become the primary method for maintaining dialysis access. However, the blunt and irregular tearing of the intima and part of the media by traditional balloons during PTA excessively damages the endothelial vessels, causing intense proliferation of vascular smooth muscle cells and macrophages, which rapidly leads to restenosis.

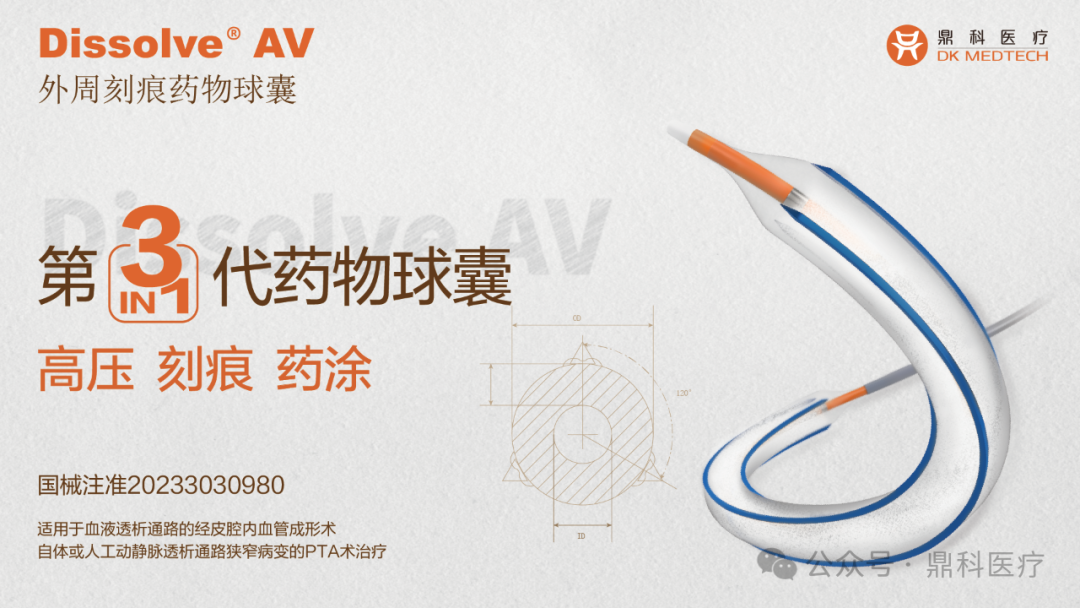

In recent years, there has been continuous international exploration and clinical research on drug-coated balloons for PTA treatment of dialysis access. DK Medtech has developed the Dissolve™ AV Scoring Drug Balloon, which integrates three features—"scoring," "high-pressure," and "drug-coating"—and is the world's first third-generation drug balloon:
Directional Scoring: Uniform and regular intimal tearing to reduce damage from blunt rupture.
High Burst Pressure: For high-resistance lesions, improving technical success rate.
Paclitaxel Coating: Effectively Inhibits Excessive Proliferation of Smooth Muscle Cells.
DK Medtech Special Release[Professor Wu Liang's Access Team: Cutting Balloon Treatment for Refractory AVF Stenosis] Case Presentation, demonstrating the precise operation of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, perioperative management, etc., the aim is to promote the standardization of diagnosis and treatment for vascular stenosis and occlusive diseases, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future diagnosis and treatment, benefiting more clinical patients.
Scored Drug-Coated Balloons for Refractory AVF Stenosis
Zheng Huixiao, Wu Liang from the Second Affiliated Hospital of Xingtai Medical College
Patient Information
Basic Information:Male, 71 years old.
Chief Complaint:Five years of hemodialysis, weakened thrill of arteriovenous fistula for 20 days.
History of Present Illness:The patient was diagnosed with "CKD Stage 5" five years ago and began hemodialysis treatment using an autologous arteriovenous fistula in the left forearm, three times per week. During this period, the patient underwent nine ultrasound-guided PTA procedures on the fistula due to venous outflow stenosis and occlusion.
Past Medical History:Hypertension for 28 years, with a maximum of 190/100 mmHg.
Physical Examination:The murmur and thrill of the left forearm fistula are weakened.
Admission Diagnosis:
Stenosis of Arteriovenous Fistula in Left Forearm.
Chronic Kidney Disease Stage 5 (Uremia);
Maintenance Hemodialysis;
Renal Anemia.
Grade 3 Hypertension (Very High Risk).
Previous interventional treatment
Time | Main Treatment Process |
2021-03-01 | Balloon Angioplasty of Left Forearm Arteriovenous Fistula (High-Pressure Balloon) |
2021-06-27 | Balloon Angioplasty of Arteriovenous Fistula in Left Forearm (High-Pressure Balloon) |
2021-11-08 | Balloon Angioplasty of Left Forearm Arteriovenous Fistula (High-Pressure Balloon) |
2022-06-22 | Balloon Angioplasty of Left Forearm Arteriovenous Fistula (High-Pressure Balloon) |
2022-10-24 | Balloon Angioplasty of Arteriovenous Fistula in Left Forearm (High-Pressure Balloon) |
2023-03-09 | Balloon Angioplasty of Arteriovenous Fistula in Left Forearm (High-Pressure Balloon) |
2023-07-03 | Balloon Angioplasty of Arteriovenous Fistula in Left Forearm (High-Pressure Balloon) |
2023-09-27 | Balloon Angioplasty of Arteriovenous Fistula in Left Forearm (High-Pressure Balloon) |
2024-01-26 | Balloon Angioplasty of Arteriovenous Fistula in Left Forearm (High-Pressure Balloon) |
Preoperative Analysis
Preoperative Analysis:The patient has undergone multiple PTA surgeries on the internal fistula, with severe stenosis in the venous outflow tract. Previous use of high-pressure balloon dilation showed unsatisfactory results. This hospitalization plans to treat the lesion using a high-pressure scoring drug-coated balloon.
Surgical Objective:
Main Objectives:Open up the stenotic lesion to meet the dialysis blood flow requirements.
Secondary Objectives:Prevent rebound, extend the usage time of patients' internal fistulas, and reduce the number of patient interventions.
Surgical Strategy/Plan:PTA was performed again using the DK Medtech Dissolve™ AV Scoring Drug-Coated Balloon.
Preoperative Assessment
Radial artery-cephalic vein fistula, stenosis of the median cubital vein and basilic vein.

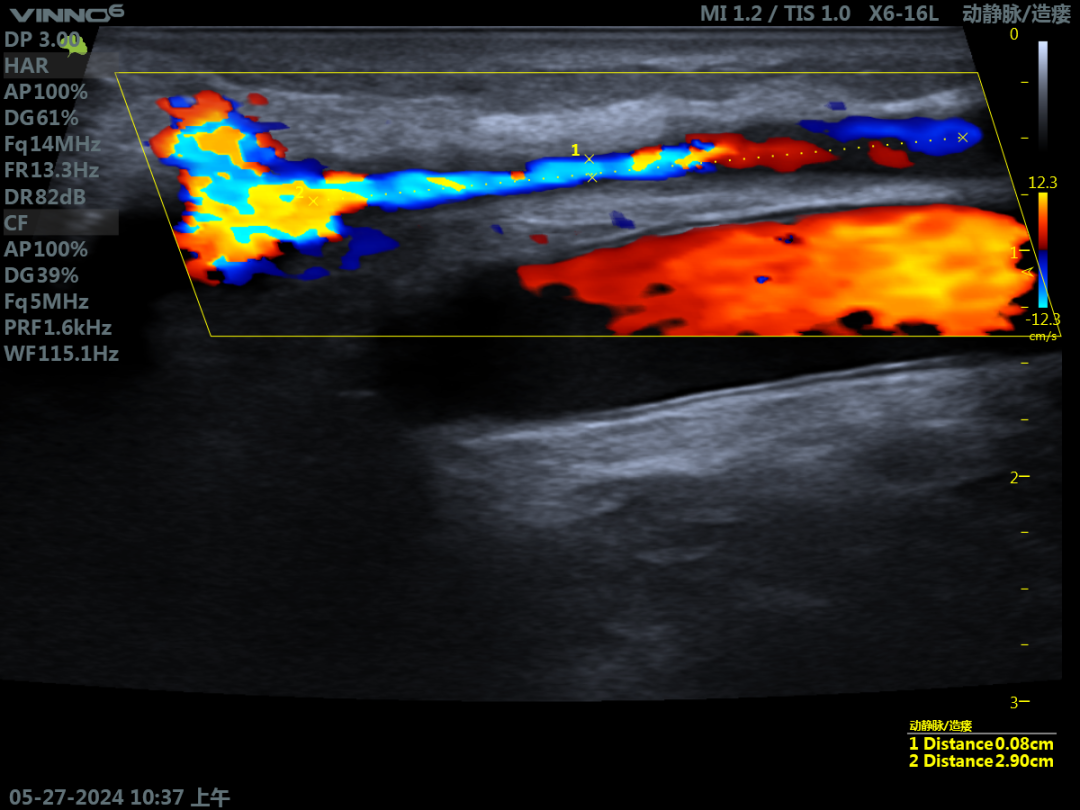

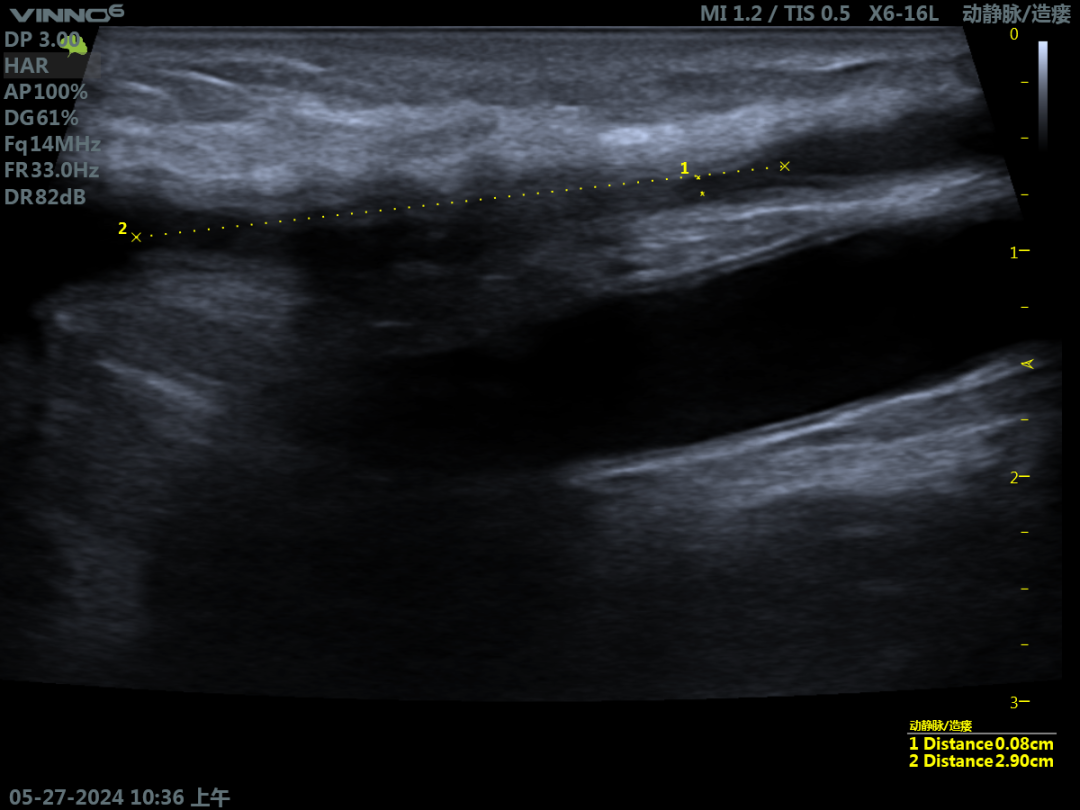

The distance from the stenosis to the anastomosis is 17cm, with the narrowest inner diameter approximately 0.8mm and a length of about 2.89cm.
Blood flow is significantly reduced at the site of stenosis.

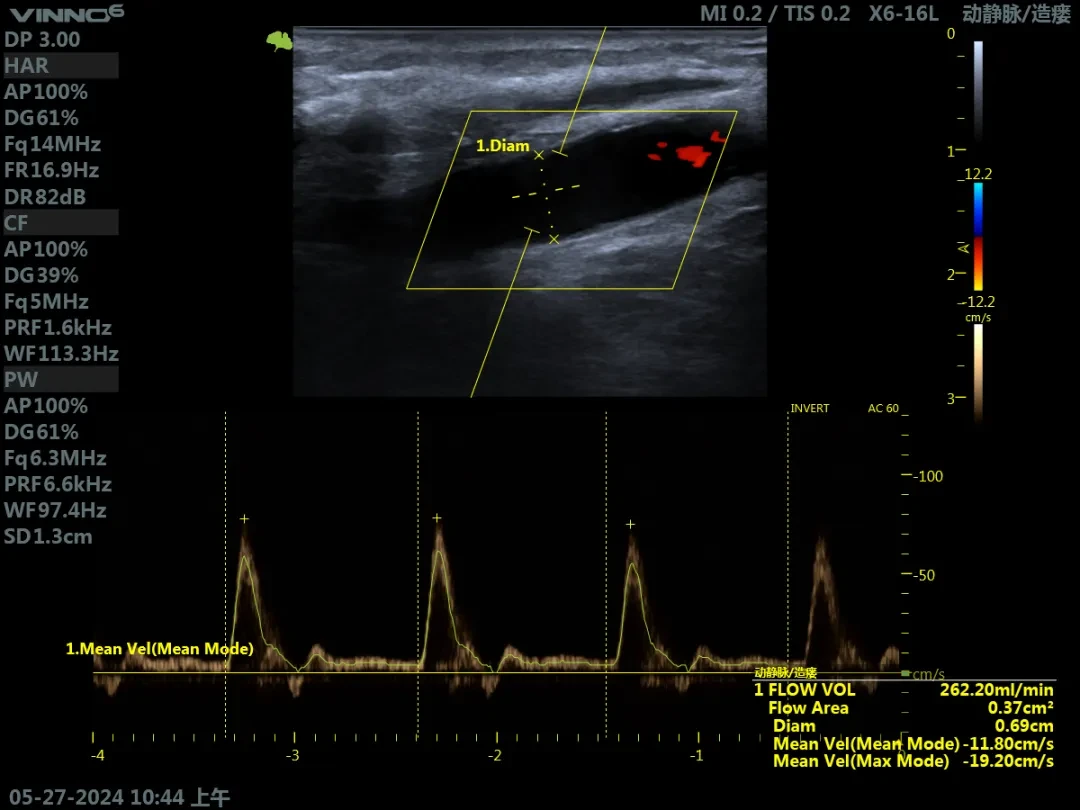

Brachial artery blood flow 262.2 ml/min.
Surgical Procedure

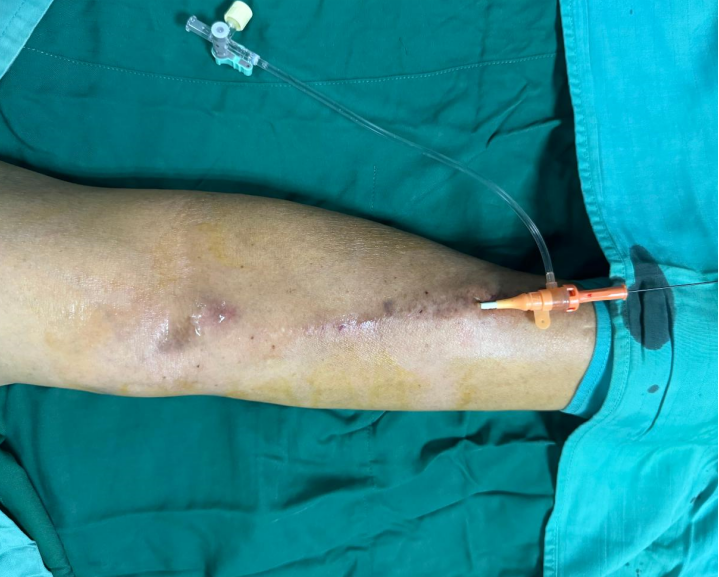

The patient lies in a supine position, with the left forearm abducted. After routine disinfection and draping, brachial plexus anesthesia is administered. The puncture needle is inserted, and upon observing the outflow of arteriovenous fistula blood, a guidewire is advanced. The needle is withdrawn, and a 7F vascular sheath is inserted. Heparin 20mg is then administered intravenously.

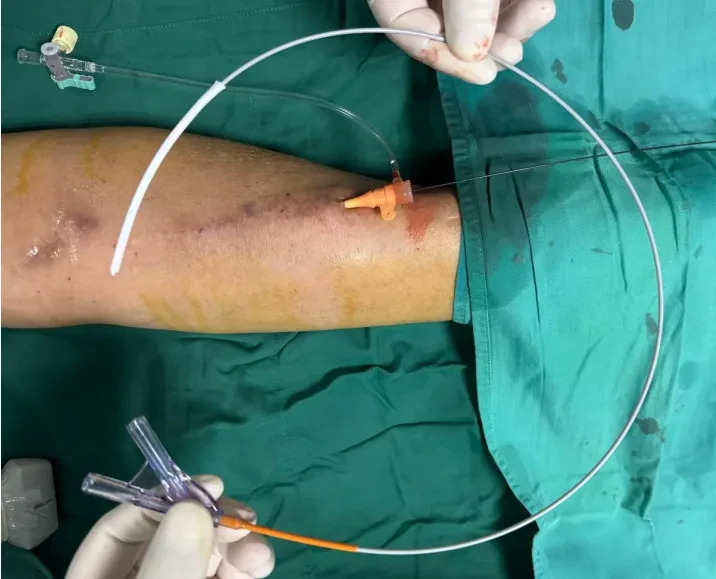

A 6.0*40mm DK Medtech Dissolve™ AV high-pressure scoring drug-coated balloon was advanced over the guidewire.
The balloon was anchored at the stenotic lesion and dilated three times at 20 atm, with the first dilation lasting 3 minutes and the second and third dilations lasting 1 minute each.

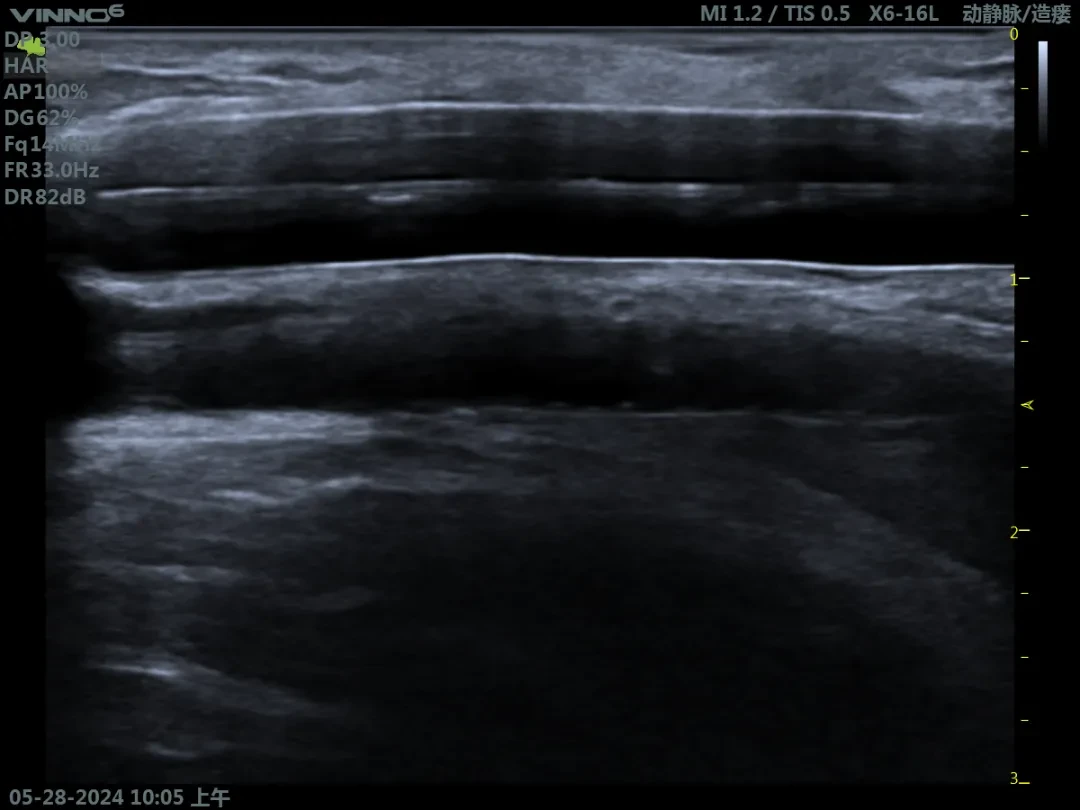

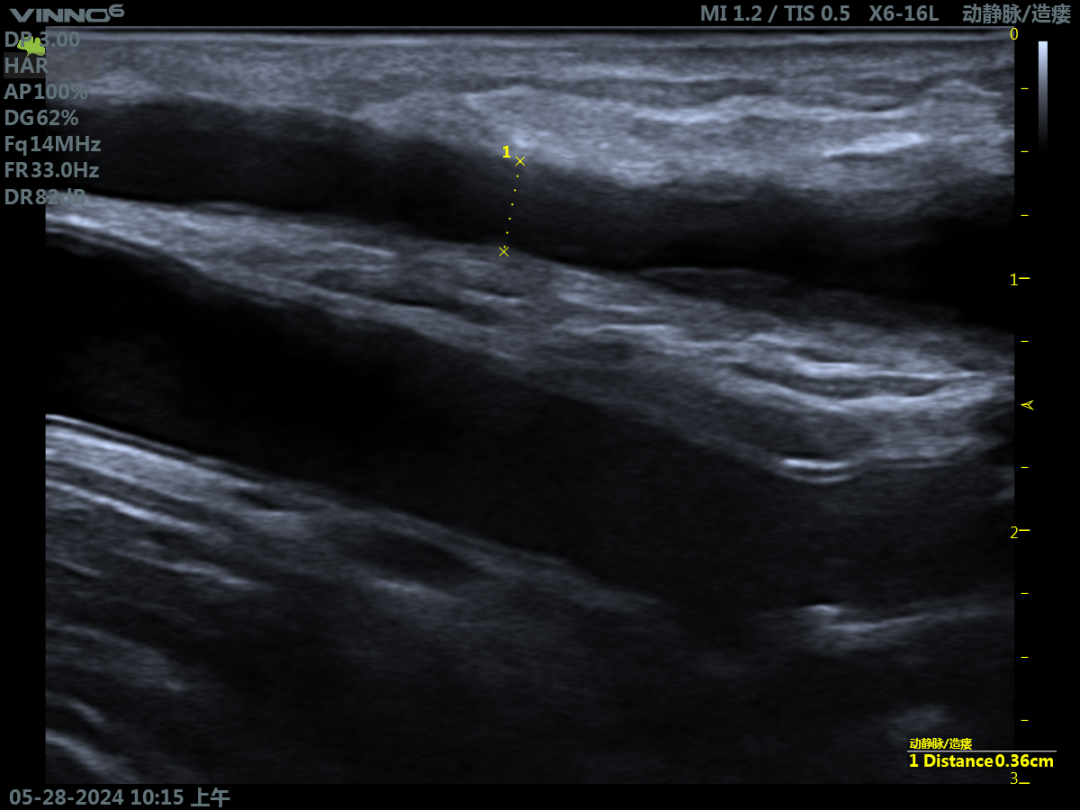

After the dilation was completed, the stenosis inner diameter was remeasured at 3.6mm.

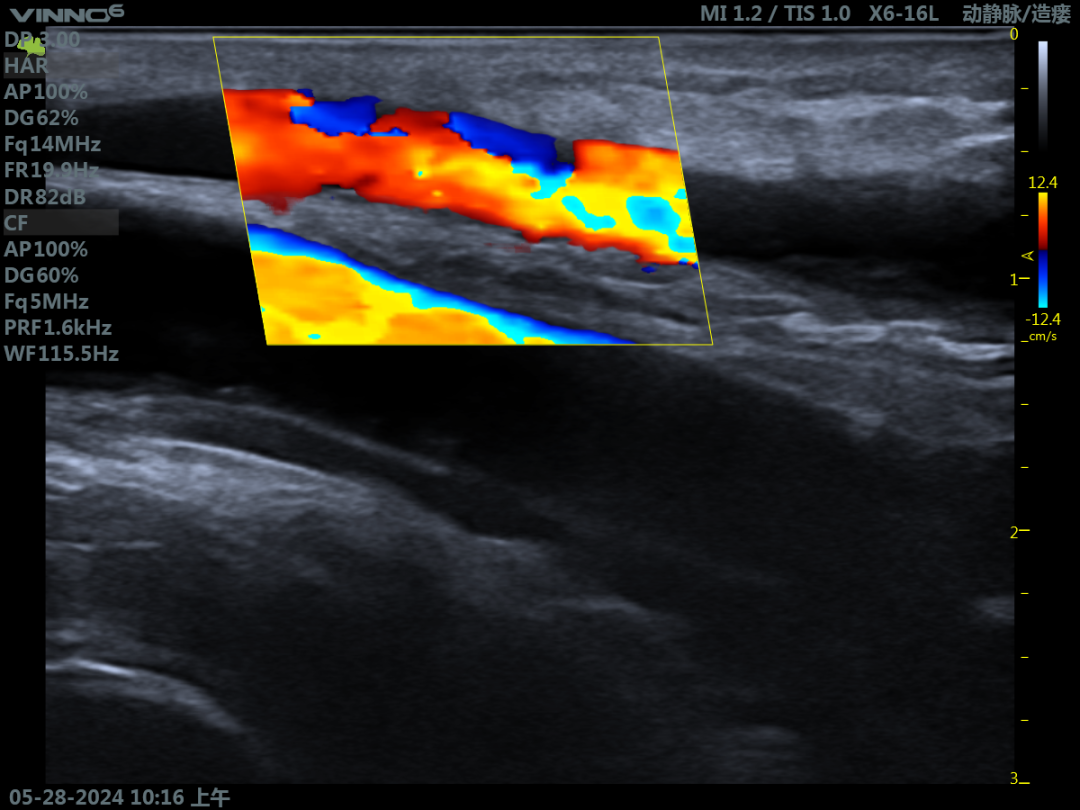

After the dilation was completed, blood flow significantly improved.

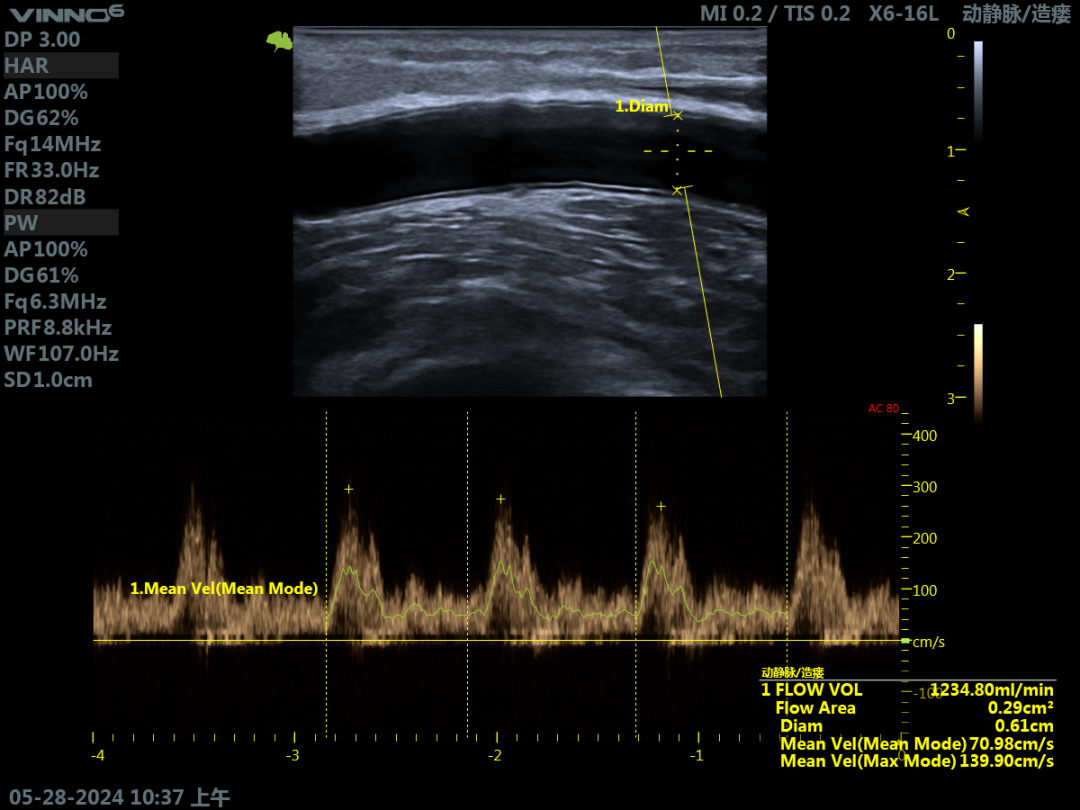

Measurement of brachial artery flow (with sheath) 1234.8 ml/min.
Follow-up
Discharge Status:The patient was discharged smoothly and is currently undergoing regular dialysis with good function of the internal fistula.
Case Summary
Case Characteristics:The patient has been on dialysis for 5 years and has undergone PTA surgery multiple times due to stenosis or occlusion of the arteriovenous fistula. The venous outflow tract has severe stenotic lesions, mainly characterized by venous intimal hyperplastic stenosis. The effect of repeated high-pressure balloon dilatation has been unsatisfactory, with short-term postoperative recurrence of restenosis.
Preoperative Assessment Key Points:Location and degree of stenosis, characteristics of stenosis;Exclude arterial inflow stenosis.
Surgical Strategy/Technical Key Points:Fully open the stenosis, ensure sufficient balloon inflation time to guarantee adequate paclitaxel infiltration.
Features/Usage Tips of the Device:
Smooth balloon passage;
Easily open narrow lesions;
The balloon retraction is good.
