Professor Dai Xianpeng: Application of High-Pressure Scoring Drug-Coated Balloon in Hemodialysis Patients with Arteriovenous Fistula Stenosis
DK Medtech
Vascular Interventional Balloon Product Developer
Stenosis of autologous or artificial arteriovenous fistula (AVF/AVG) is the most common complication in hemodialysis patients. Percutaneous transluminal angioplasty (PTA) has become the primary method for maintaining dialysis access. However, the blunt and irregular tearing of the intima and part of the media by traditional balloons during PTA can cause excessive damage to the endothelial vessels, leading to intense proliferation of vascular smooth muscle cells and macrophages, which rapidly results in restenosis.
In recent years, there have been continuous explorations and clinical studies internationally on drug-coated balloons and other devices used for PTA treatment in dialysis access. DK Medtech has developed Dissolve.®AV Scoring Drug-Coated Balloon, integrating "scoring," "high-pressure," and "drug-coating" three features in one, is the world's first third-generation drug-coated balloon:
Directional Scoring: Uniform and regular tearing of the intima to reduce damage from blunt rupture.
High Burst Pressure: For high-resistance lesions, improving technical success rate.
Paclitaxel Coating: Effectively inhibits excessive proliferation of smooth muscle cells.
DK Medtech Special Release[Professor Dai Xianpeng: Application of High-Pressure Scoring Drug-Coated Balloons in AV Fistula Stenosis in Dialysis Patients] Case Presentation, demonstrating the detailed operations of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, perioperative management, and other aspects, the aim is to promote the standardization of diagnosis and treatment for vascular stenosis and occlusive diseases, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future diagnosis and treatment, benefiting more clinical patients.
High-Pressure Scoring Drug-Coated Balloon Applied in Dialysis Patients with Arteriovenous Fistula Stenosis
The Second Affiliated Hospital of Nanhua University
Dai Xianpeng
Patient Information
Basic Information:Elderly Male.
Chief Complaint:Regular hemodialysis for over 2 years, left forearm arteriovenous fistula dysfunction for 3 days.
History of Present Illness:Two years ago, the patient was diagnosed with chronic renal failure at another hospital due to elevated creatinine and uremic toxin levels. An arteriovenous fistula surgery was performed, followed by regular hemodialysis three times a week, with generally stable conditions. Six months ago, during hemodialysis, it was noted that the flow through the dialysis catheter was suboptimal, but dialysis could still be performed. The patient did not experience nausea, vomiting, abdominal pain, bloating, chest tightness, chest pain, coughing, sputum production, headache, or syncope. Three days ago, the patient became completely unable to undergo dialysis. For further diagnosis and treatment, the patient came to our hospital seeking reconstruction of the dialysis access. The outpatient department admitted the patient to our department under the diagnosis of "chronic renal insufficiency with stenosis and thrombosis of the arteriovenous fistula." Since the onset of the disease, the patient’s mental state, appetite, and sleep have been poor, with daily urine output of about 500-800ml, normal bowel movements, and no significant recent changes in weight.
Past Medical History:History of "hypertension" for over 10 years, with the highest blood pressure recorded at 180/? mmHg. Currently taking "Felodipine 1 tablet qd" regularly to control blood pressure, but blood pressure remains poorly controlled. Denies history of "diabetes, coronary heart disease"; denies history of infectious diseases such as "typhoid, tuberculosis, hepatitis". Has a history of "cervical surgery (details unknown)", and denies history of trauma or blood transfusion. Denies history of food or drug allergies, and vaccination history is unclear.
Physical Examination:A surgical scar of approximately 5cm is visible on the left forearm, with a faint thrill palpable over the arteriovenous fistula.
Admission Diagnosis:
Stenosis and thrombosis of arteriovenous fistula in the left forearm;
Chronic renal insufficiency, uremic stage.
Previous interventional treatment
Time | Main Treatment Process |
2022 | Left Upper Limb Arteriovenous Fistula Surgery |
Preoperative Analysis
Preoperative Analysis:The patient is an elderly male with stenosis of the arteriovenous fistula in the left forearm, and severe stenotic lesions in the venous outflow tract, mainly characterized by hyperplastic venous intimal stenosis.
Surgical Objective:
Main Objectives:Open narrowed lesions, prevent recoil, and meet the blood flow requirements for regular dialysis;
Secondary Objectives:Maintain Long-Term Patency.
Surgical Strategy/Plan:Scored Drug-Coated Balloon for PTA Procedure. Expect the use of a scored balloon to uniformly tear the hyperplastic intima, effectively shape the blood vessel, and simultaneously apply paclitaxel locally to inhibit smooth muscle cell migration and proliferation, preventing restenosis in the medium to long term.。
Surgical Procedure

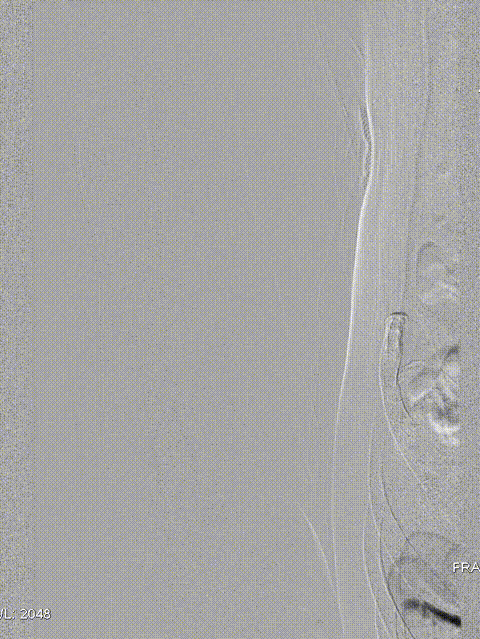

Retrograde puncture of the cephalic vein above the elbow joint, insertion of a 7F vascular sheath, proximal radial artery angiography: significant stenosis at the proximal end of the cephalic vein.

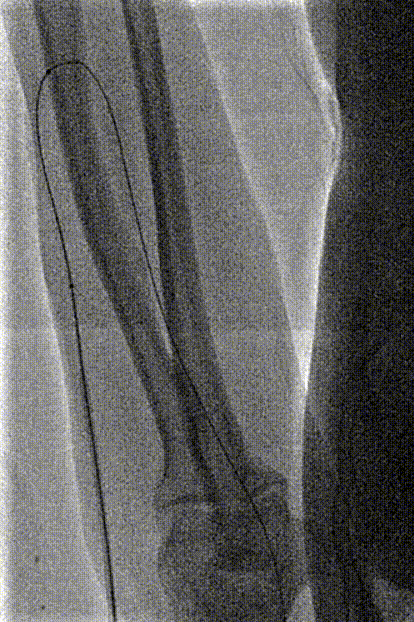

The black mud loach guidewire with a single-bend catheter passed through the radial artery and the occluded segment of the fistula. Angiography suggested an end-to-end anastomosis, with no significant imaging observed distal to the anastomosis.

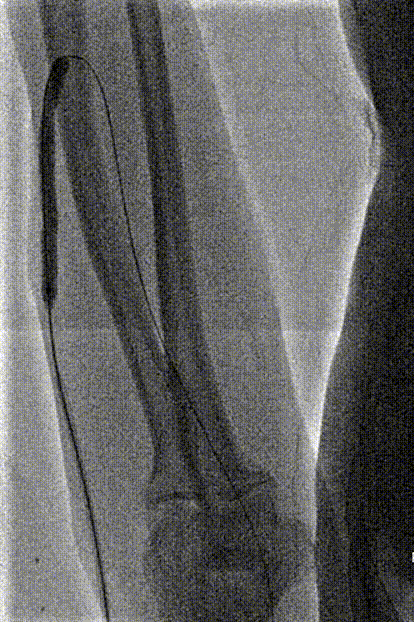

4mm*80mm balloon dilation of the cephalic vein and anastomosis, significant "waist sign" observed during dilation, repeat angiography still shows stenosis of the fistula.

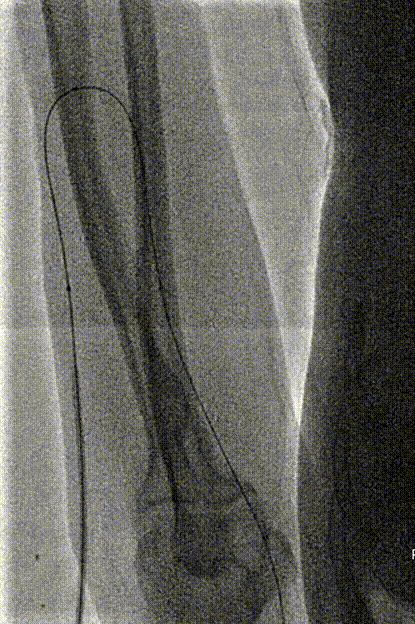

4mm*80mm Balloon Second Expansion

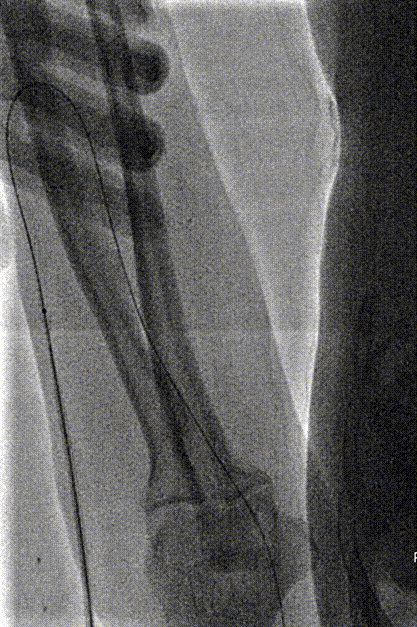

Import 6mm*80mmHigh-Pressure Scoring Drug-Coated BalloonDilation, pressure 20atm, maintained for 2min
High-Pressure Scoring Drug-Coated BalloonAfter depressurization, reinflate to 20 atm and maintain for 3 minutes for secondary dilation.

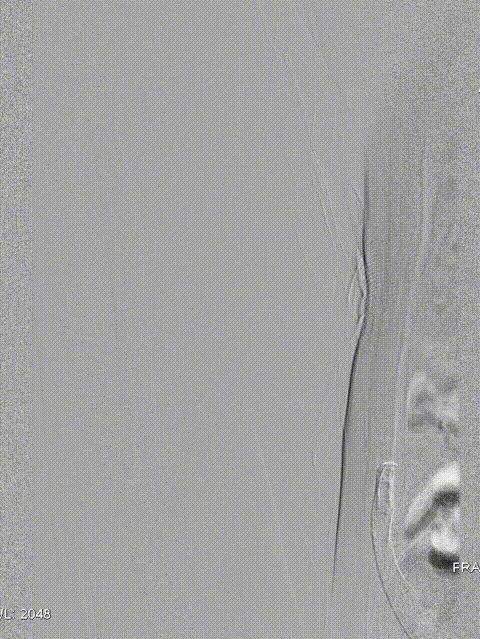

Angiography shows that the stenotic segment of the cephalic vein has been fully dilated, with significant improvement in blood flow.
Follow-up
Discharge Status:A significant thrill could be palpated at the site of the fistula post-surgery, with obvious vascular murmurs heard during auscultation. On the second day after surgery, the patient underwent hemodialysis, and the dialysis effect was satisfactory.
Case Summary
Case Characteristics:Internal fistula failure, severe stenotic lesions in the venous outflow tract, mainly manifested as venous intimal hyperplastic stenosis.
Key Points of Preoperative Assessment：
Location, length, and degree of stenosis, characteristics of stenosis;
Exclude arterial inflow tract and central venous stenotic lesions.
Surgical Strategy/Technical Key Points:
Single-bend catheter with guidewire passing through the stenotic segment;
Select the appropriate balloon for pre-dilation;
The pressure maintenance time of the scored drug-coated balloon should be more than 2 minutes to ensure the opening of the stenosis and the full permeation of paclitaxel.
Features/Usage Tips of the Device:
Select the appropriate puncture sheath;
Smooth balloon passage;
Easily open narrow lesions;
The balloon retraction is good.
