With the vigorous development of China's peripheral vascular intervention market, common balloons tend to cause complications such as excessive vascular injury, flow-limiting dissections, and hematomas when treating the increasing number of highly resistant stenotic lesions. However, pressure-concentrating balloons utilize cutting/notching elements between the vessel wall and the balloon’s outer diameter during expansion to enhance localized pressure and achieve efficient directional dilation, thereby reducing vascular elastic recoil. This represents a new direction in the evolution of vascular intervention balloons.

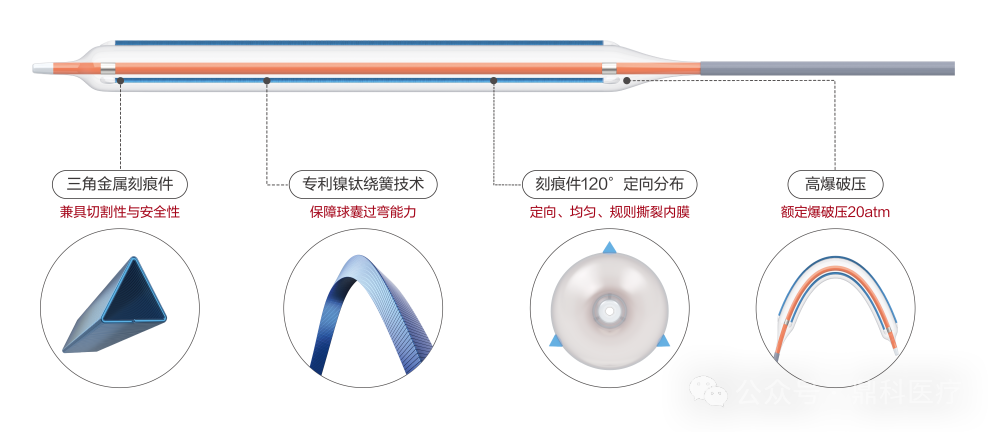

DK Medtech's independently developed DKutting™ High-Pressure Scoring Balloon, featuring an exclusive patented design (CN201810478242.X), boasts numerous advantages such as excellent trackability, uniform expansion, and high burst pressure. In terms of overall product performance, it is referred to as the "hexagonal warrior," marking a significant breakthrough for local companies in innovating and surpassing top-tier imported products.
DK Medtech Special Release[Professor Wan Jia's Team: Balloon Expansion for Lower Limb Thromboangiitis Obliterans] Case Presentation, demonstrating the precise operation of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized procedures during surgery, technical applications, complication prevention, to perioperative management, etc., the aim is to promote the standardization of diagnosis and treatment for vascular stenosis and occlusive diseases, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future diagnosis and treatment, benefiting more clinical patients.
Balloon Expansion for Thromboangiitis Obliterans in the Lower Limbs
Wan Jia, Yunnan University Affiliated Hospital
Patient Information
Basic Information:Male, 71 years old.
Chief Complaint:Coldness and numbness in the right lower limb for over a month.
History of Present Illness:The patient reported that one month ago, without obvious cause, he experienced coldness and numbness in the right lower limb, which worsened after activity and slightly relieved after rest. There was no swelling or pain in the right lower limb, so he didn’t pay much attention to it and received no treatment. Later, the coldness and numbness in the right lower limb gradually worsened, accompanied by skin pigmentation and an ulcer on the anterior tibial area. Today, for further treatment, he came to our department’s outpatient clinic. The outpatient Doppler ultrasound of the lower limb vessels suggested “incomplete thrombosis of the right popliteal artery could not be ruled out.” The outpatient department admitted him with a diagnosis of “thromboangiitis obliterans of the right lower limb.” Since the onset of the disease, the patient's spirit, diet, and sleep have been fine, with normal bowel and bladder functions, and no significant change in body weight.
Past Medical History:Denies history of coronary heart disease, diabetes, and hypertension.
Physical Examination:Pigmentation and ulceration in the right lower limb boot area, with the ulcer crusted over, measuring approximately 1.5cm x 1.5cm. The skin temperature of the right lower limb boot area is low, the toes are cyanotic, and the pulse of the right posterior tibial artery cannot be palpated.
Admission Diagnosis:
Thromboangiitis Obliterans of the Right Lower Limb
Varicose Veins in the Left Lower Limb
Previous interventional treatment
Time | Main Treatment Process |
January 22, 2024 | Lower extremity vascular ultrasound performed during the outpatient visit showed thickened wall, narrowed lumen, and solid echo in the distal part of the right popliteal artery (incomplete occlusion of the right popliteal artery could not be ruled out, further examination recommended), and the patient was admitted to the hospital. |
January 22, 2024 | Lower extremity CTA suggests occlusion of the right popliteal artery and arteriovenous fistula in the right lower limb. |
January 23, 2024 | Treated with clopidogrel, beraprost sodium tablets, and atorvastatin calcium tablets. |
January 24, 2024 | Right femoral artery puncture under local anesthesia, right lower limb arterial angiography + right popliteal artery balloon angioplasty + right lower limb arteriovenous fistula coil embolization. |
January 30, 2024 | Discharged with improvement, and continued oral treatment with Clopidogrel, Beraprost Sodium Tablets, and Atorvastatin Calcium Tablets after discharge. |
March 4, 2024 | The patient has ulcerated and crusted lesions on the right lower limb, with no pain or cold discomfort in the right lower limb. |
Preoperative Analysis
Preoperative Analysis:

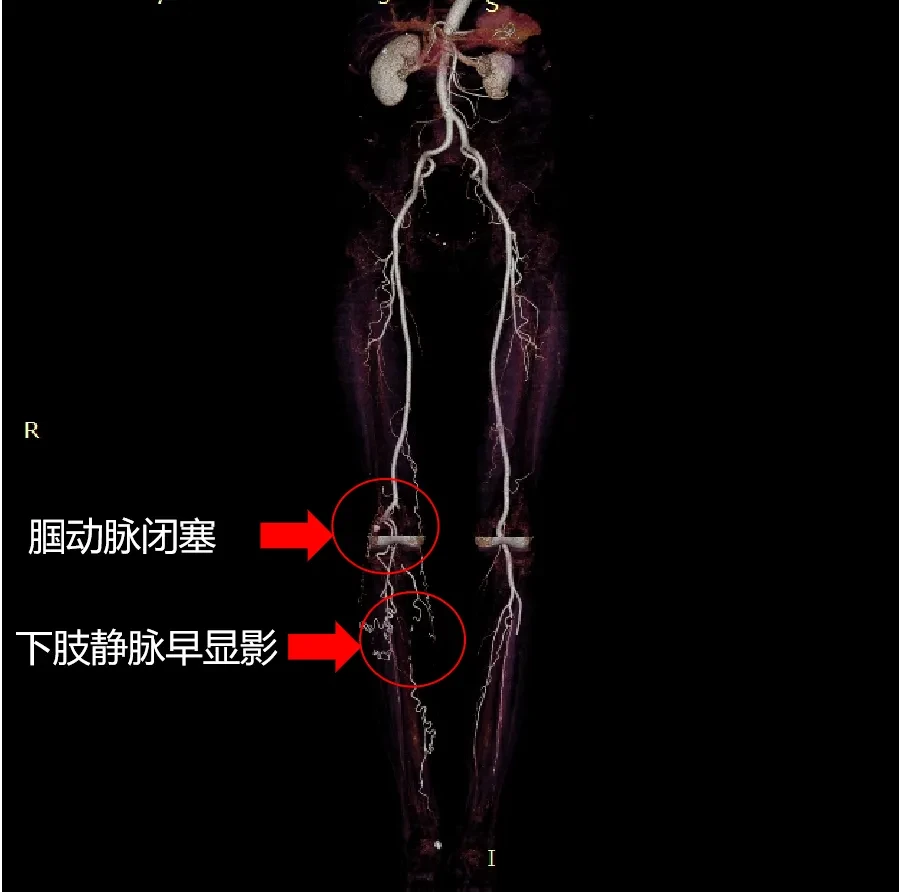

Preoperative CTA showed:Occlusion of the right popliteal artery with collateral circulation formed around it; early visualization of the veins in the right lower leg, suggesting the formation of an arteriovenous fistula.
The patient has occlusive disease in the right popliteal artery, with a high risk of dissection after plain balloon dilation. The lesion is located at the joint, and stent placement after dilation may have long-term patency that remains to be verified. Consider using a scoring balloon to directionally relieve pressure from the hyperplastic intima, reducing the occurrence of flow-limiting dissections. Combined with drug-coated balloons, this approach ultimately aims to minimize the need for graft placement.
Surgical Objective:
Main Objectives:Open the right popliteal artery and embolize the arteriovenous fistula of the right lower limb as much as possible.
Secondary Objectives:Open the right popliteal artery and place a stent at the same time.
Surgical Strategy/Plan:
Antegrade puncture of the right femoral artery, followed by insertion of a 6F short sheath;

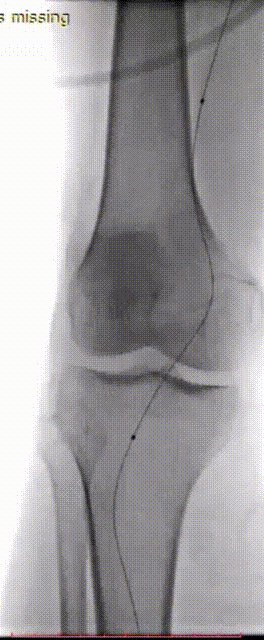

A 150cm guidewire was used in conjunction with a single-bend angiographic catheter to pass through the distal segment of the occluded right popliteal artery and reach the anterior tibial artery.
Application of DKutting™ 4.0mmx80mm to dilate popliteal artery occlusion lesions;
Applied medicated balloon 5.0mmx150mm to dilate the lesion segment;
Embolization of arteriovenous fistula in the calf segment with micro-coils; 6. Occluder closure of the puncture site.
Surgical Procedure
Preoperative angiography showed occlusion of the right popliteal artery with collateral circulation formed around it.
The blood supply to the lower right leg is adequate, with early venous imaging.
4.0mmx80mm DKutting™ Scoring Balloon Catheter performs balloon dilation of the right popliteal artery, with a noticeable notch observed.
Embolization of arteriovenous fistula in the lower right leg.
After pre-dilation, drug-coated balloon angioplasty was performed, restoring blood flow in the popliteal artery with significant improvement in imaging.
Follow-up
Discharge Status:Upon discharge, the patient showed that the crust of the ulcer on the anterior tibia of the right lower limb had fallen off, the wound was healing well, and there was no discomfort such as pain or coldness in the right lower limb. After discharge, the patient continued oral medication treatment with clopidogrel, beraprost sodium tablets, and atorvastatin calcium tablets.
Review after 3 months:No pain, numbness, or cold discomfort in the right lower limb; the ulcer has healed well, and the right lower limb is mobile.
Case Summary
Case Characteristics:Elderly patient, chronic course, right lower limb ischemia leading to pain, coolness, and non-healing ulcers in the right lower limb, with occlusive arterial disease in the right lower limb.
Preoperative Assessment Key Points:Preoperative lower extremity CTA examination to clarify the location, nature, length of the lesion, and collateral circulation.
Surgical Strategy/Technical Key Points:Select an appropriate balloon and prepare the vessel with a suitable balloon diameter. After completion, use a drug-coated balloon to dilate and suppress intimal hyperplasia, extending the duration of patency.
Features/Usage Tips of the Device:The pressure focusing and directional expansion of the scored balloon achieve better lumen results, while the drug-coated balloon suppresses intimal hyperplasia.
