With the vigorous development of China's peripheral vascular intervention market, ordinary peripheral balloons have entered a stage of full competition. However, for the increasing number of highly resistant stenotic lesions, ordinary balloons tend to cause complications such as excessive vascular injury, flow-limiting dissections, and hematomas. On the other hand, pressure-focusing balloons utilize cutting/notching elements positioned between the inner wall of the blood vessel and the outer diameter of the balloon during expansion, enhancing localized pressure and enabling efficient directional dilation. This reduces vascular elastic recoil, representing a new direction in the evolution of vascular intervention balloons.

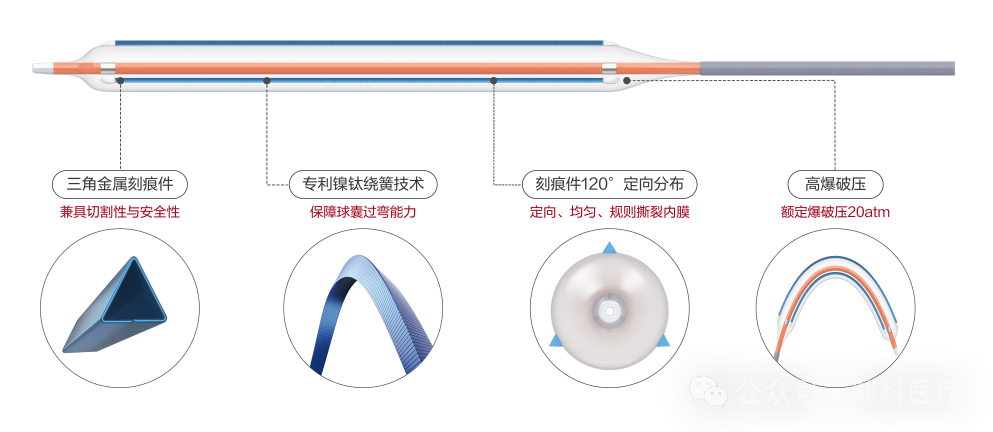

DK Medtech's independently developed DKutting™ High-Pressure Scoring Balloon, featuring an exclusive patented design (CN201810478242.X), boasts numerous advantages such as excellent trackability, uniform expansion, and high burst pressure. In terms of overall product performance, it can be described as a "hexagonal warrior," with virtually no weaknesses. This marks a significant breakthrough for local enterprises in innovating and surpassing top-tier imported products.
DK Medtech Special Release【Professor Jiang Jinquan's Team: Blood Circulation Operation, Effective Treatment for Ulcers】Case Presentation, demonstrating the detailed operations of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, perioperative management, and other aspects, the aim is to promote the standardization of diagnosis and treatment for vascular stenosis and occlusive diseases, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future diagnosis and treatment, benefiting more clinical patients.
Blood Circulation Operation: Effective Treatment for Sores
Jiang Jinquan, First Hospital of Northwest University
Patient Information
Basic Information：Elderly female, 66 years old, from Heyang, Weinan, Shaanxi Province.
Chief Complaint:Ulcer pain in the left lower limb for over a year.
History of Present Illness:Formation of Ulcer on the Left Lower Limb for Over a Year. Present Illness: The patient developed skin ulceration on the left lower limb after scratching it one year ago. There was no improvement after seeking treatment at a local clinic, and the ulcer gradually expanded and deepened with significant pain. Obvious swelling occurred below the knee joint of the left lower limb, and the skin failed to heal. One month ago, the patient visited the wound clinic of our hospital and received local dressing changes and intravenous anti-infection treatment, but the effect was not obvious. Lower limb arterial occlusion was considered as a possibility. For further treatment, the patient was admitted to the hospital with the diagnosis of "Lower Extremity Arteriosclerosis Obliterans? Ulcer on Left Lower Limb." Since the onset of the disease, the patient has been conscious, in good spirits, with normal appetite, sleep, and bowel/bladder function.
Past Medical History:History of "hypertension" for over 10 years, with the highest blood pressure reaching 180/100 mmHg. Currently taking "nifedipine sustained-release tablets and nimodipine tablets" for antihypertensive treatment; blood pressure has not been systematically monitored. Denies history of chronic diseases such as "coronary heart disease, diabetes, cerebral infarction," denies history of acute or chronic infectious diseases such as "hepatitis, tuberculosis," and denies history of surgery, trauma, or blood transfusion. Denies history of vaccinations. Denies history of food or drug allergies.
Physical Examination:A large area of ulceration can be seen on the inner side of the left calf, reaching the muscular layer, with purulent coating covering the surface and a large amount of purulent discharge visible. The area is approximately 10*9 cm in size; the skin temperature below both knees is low, the pulse of the left popliteal artery cannot be palpated, and the pulse of the left dorsalis pedis artery is weak.
Admission Diagnosis:
Atherosclerosis Obliterans of Both Lower Limbs with Large-scale Ulcer on Left Calf;
Hypertension.
Previous interventional treatment
Time | Main Treatment Process |
In the past year | The wound dressing was changed at multiple outpatient clinics both in other hospitals and in our hospital, but the wound did not show significant improvement, and the ulcer area continued to enlarge. |
Preoperative Analysis
Preoperative Analysis:CTA of the patient showed occlusion at the distal portion of the left superficial femoral artery and popliteal artery. The wound had been non-healing for a long time and worsened progressively, with poor blood supply to the wound area. Indications were present for recanalization of the distal left superficial femoral artery and popliteal artery to restore blood flow. The primary skin ulcer was located on the calf, where the wound was mainly supplied by the peroneal artery or collateral circulation from the dominant anterior or posterior tibial arteries. Left peroneal artery dilation could be considered based on angiographic findings. The patient had a history of left lower limb ischemia for over a year, and considering the difficulty in recanalizing the occluded segment, multiple atherosclerotic plaques were found in both lower limbs, some of which were calcified. If necessary, retrograde puncture of the anterior tibial artery might be required to open the occluded segment.
Surgical Objective:
Main Objectives:Open the distal superficial femoral artery and popliteal artery of the left lower limb to restore blood supply;
Secondary Objectives:Discretionary dilation of the left peroneal artery to promote wound healing.
Surgical Strategy/Plan:Angiography of the Left Lower Limb Artery + Balloon Dilation + Thrombus Aspiration.

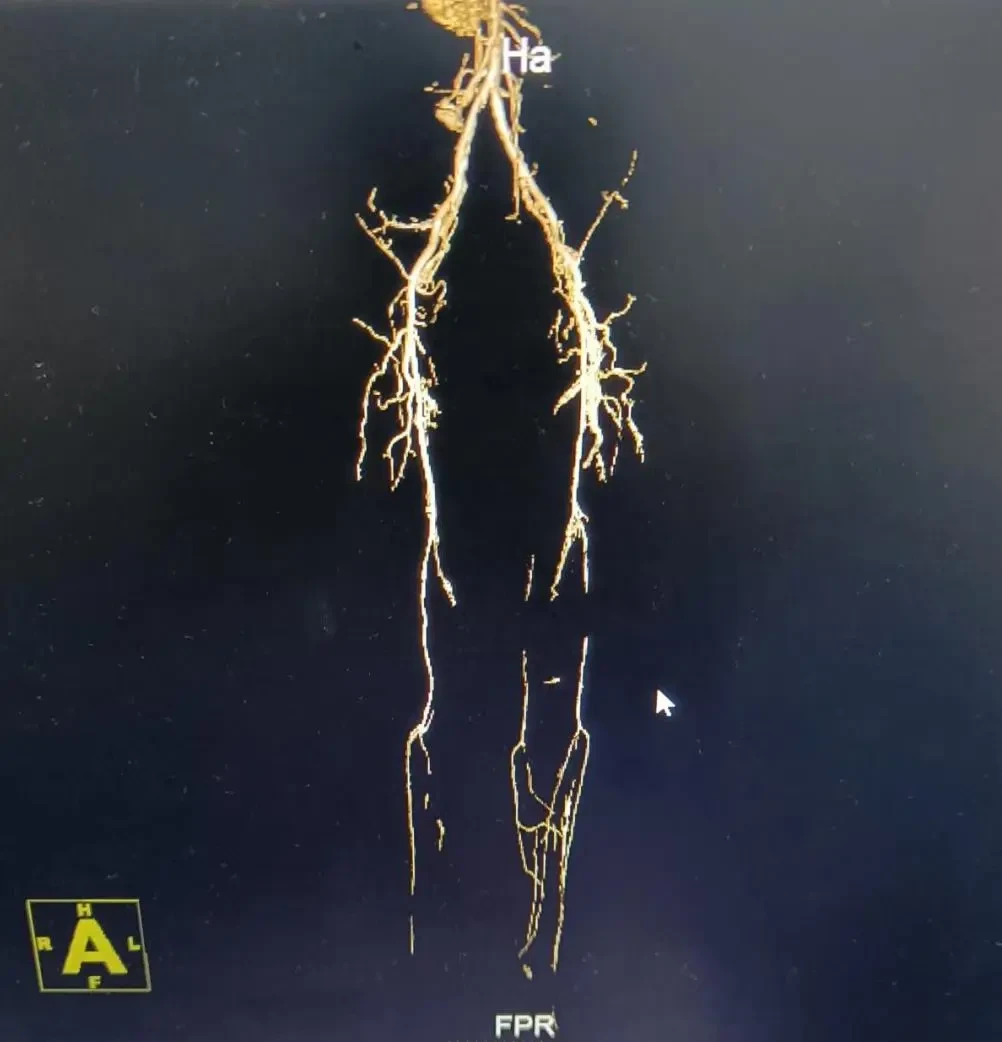

Preoperative CTA:Occlusion of the distal superficial femoral artery and popliteal artery on the left side, with collateral circulation formed between the distal segment of the superficial femoral artery and the popliteal artery; multiple plaques and stenosis in the bilateral femoral arteries, popliteal arteries, anterior tibial arteries, and posterior tibial arteries; proximal stenosis and partial occlusion of the left peroneal artery, with collateral circulation formed due to occlusion of the right peroneal artery and anterior tibial artery.
Surgical Procedure

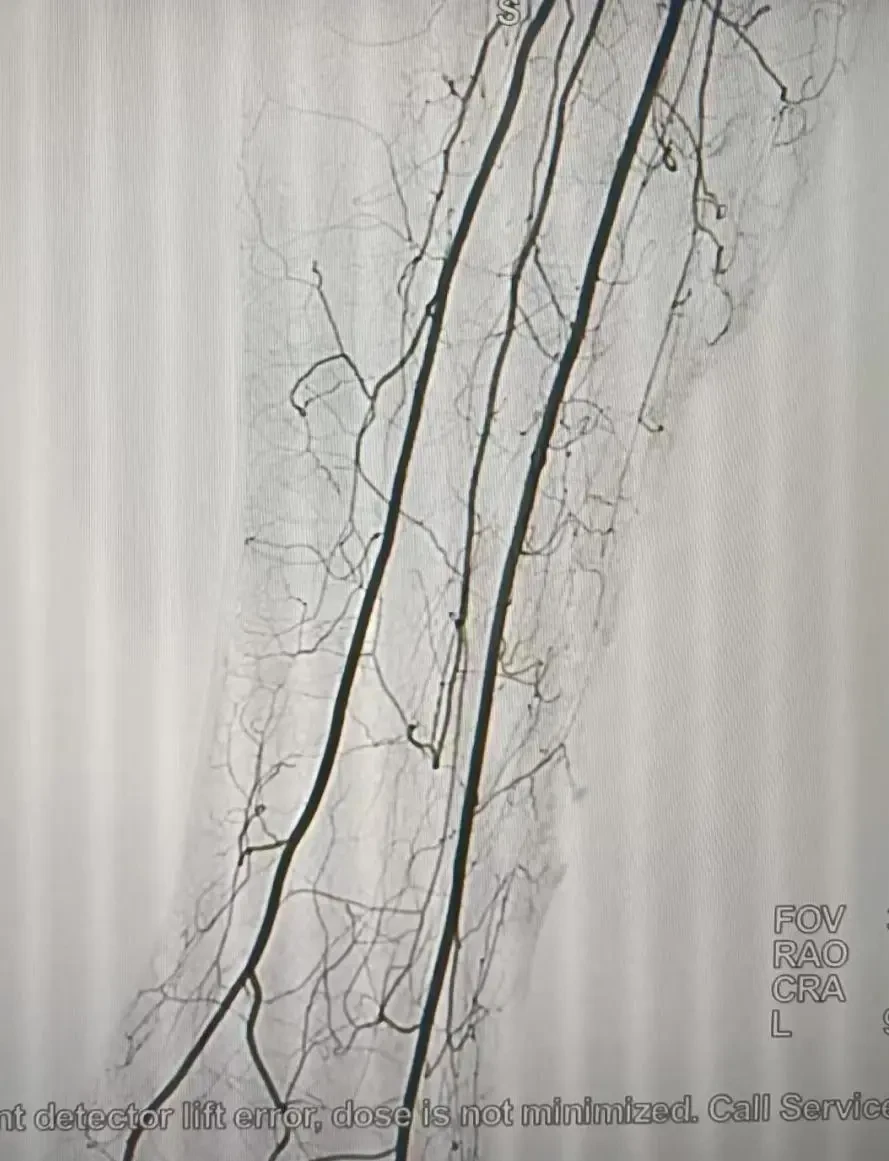

Occlusion of the distal left superficial femoral artery and popliteal artery, with collateral circulation formed between the distal segment of the superficial femoral artery and the popliteal artery; multiple plaques and stenoses in bilateral femoral arteries, popliteal arteries, anterior tibial arteries, and posterior tibial arteries; proximal stenosis and partial occlusion of the left peroneal artery, with collateral circulation formed due to occlusion of the right peroneal artery and anterior tibial artery.

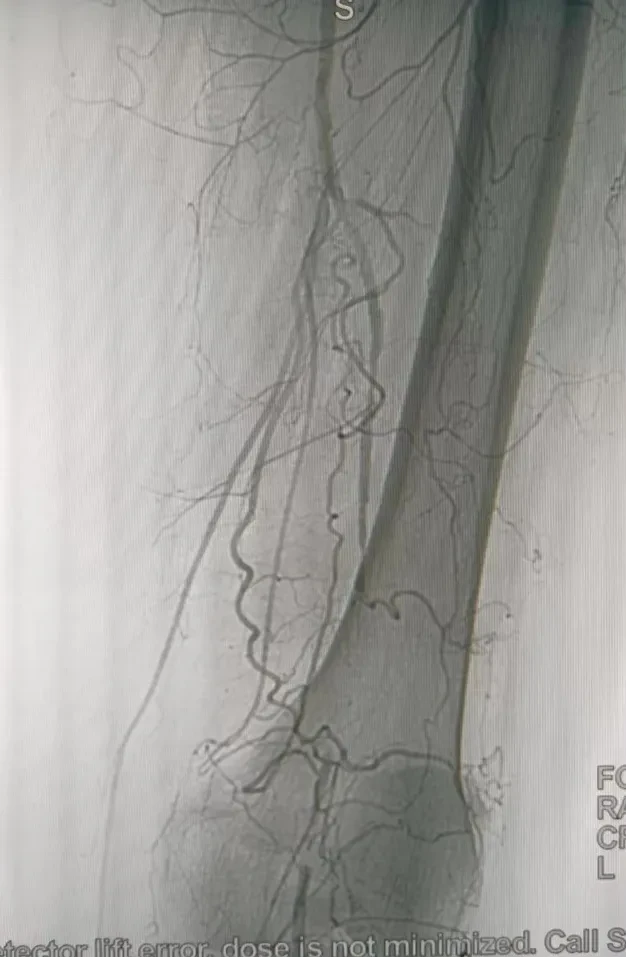

Preoperative angiography showed occlusion of the distal left superficial femoral artery and popliteal artery, multiple stenoses in the superficial femoral artery, and collateral circulation formation between the distal segment of the superficial femoral artery and the popliteal artery.
Preoperative wound condition: poor blood circulation in the wound tissue, non-healing; after months of dressing changes, no significant fresh granulation tissue formation at the wound edges, and after debridement, there is still pus and necrotic tissue.
One week after the surgery, the blood circulation of the wound had significantly improved, with new granulation tissue forming, the wound edges rising, and the wound area shrinking; the purulent coating was relatively easy to clean, and obvious bleeding occurred during debridement.
The patient had vascular calcification. After using a 4mm*8cm DKutting™ high-pressure scoring balloon to dilate the distal superficial femoral artery and popliteal artery, although some stenotic segments were difficult to expand due to hard calcification and residual stenosis remained, the blood flow velocity was acceptable, achieving the surgical goal. If a stent were used here, although luminal gain would be achieved, stent fracture could very likely occur postoperatively due to the movement of the patient’s knee joint.

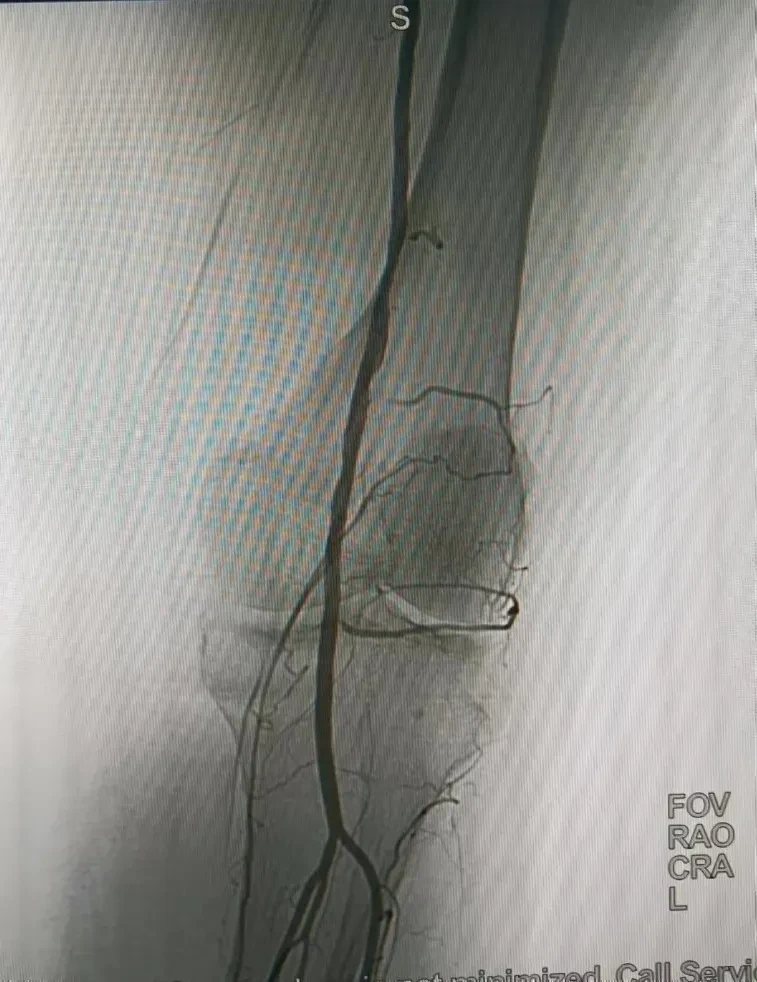

After using a 4mm*8cm DKutting™ high-pressure scoring balloon to dilate the occluded segment, no dissection was formed, and blood flow below the knee also significantly improved compared to before. Although the patient's peroneal artery is slender, both the anterior and posterior tibial arteries branch extensively in the calf; therefore, there is no need to further dilate the slender peroneal artery.
Follow-up
Discharge Status:At discharge, the patient had good pulsation of the left popliteal artery, significantly increased skin temperature of the left lower limb, and notably improved pain in the left lower limb. The wound was dressed at discharge.The blood circulation of the wound has significantly improved, with new granulation tissue forming, the wound edges are raised, and the wound area has shrunk; the purulent coating is relatively easy to clean, and obvious bleeding occurs during debridement.
Discharge Instructions:
Continue to change the dressing at our hospital's wound clinic.
Continue oral administration of Aspirin 100mg/day; Atorvastatin Calcium Tablets 20mg/day; Rivaroxaban 15mg/day.
Follow-up after discharge:Two weeks after discharge, the patient underwent VSD negative pressure wound therapy at our hospital's wound clinic. The purulent coating on the wound had further decreased compared to before, and new granulation tissue had further increased. Due to the large size of the wound, subsequent healing will require a longer period. Skin grafting can be considered once the wound shows further improvement.
Case Summary
Case Characteristics:The patient has experienced long-term occlusion of the left lower limb artery, with the occluded segment occurring at the distal end of the superficial femoral artery and the popliteal artery. Due to ischemia of the tissue below the knee, the wound has continuously expanded over the past year and has remained unhealed despite active dressing changes.
Preoperative Assessment Key Points:The patient's left lower limb arterial occlusion has been present for a long time, which may make it difficult to recanalize or result in poor vascular bed conditions after recanalization. Severe calcification may lead to re-occlusion after opening. Moreover, it is best not to implant a stent at the popliteal artery.。
Surgical Strategy/Technical Key Points:Use V18 guidewire to achieve true lumen opening as much as possible; use DKutting™ high-pressure scoring balloon to dilate the occluded segment, restore the lumen, and avoid dissection formation; if secondary thrombosis occurs, manage the thrombus properly to prevent distal vessel embolism caused by thrombus detachment.
Characteristics/Usage Tips of the Device:The scored balloon effectively dilates the occluded segment, restoring the lumen; no dissection forms throughout the procedure, especially in the popliteal artery segment, avoiding the dilemma of whether to use stent implantation.
