Professor Ji Donghua's First Clinical Application of DKutting® LL Peripheral Scoring Balloon in Below-the-Knee CTO Lesion
DK Medtech
Vascular Interventional Balloon Product Developer
DKutting®LL continues to use DK Medtech's unique patented triangular nitinol winding technology, combined with the actual clinical needs of lower limb arteries, significantly increasing the length of the scoring element (up to 150mm). It has also developed a new fully coaxial balloon delivery system compatible with 0.014"/0.018" guidewires, and enriched the selection of balloon diameters with 0.5mm increments.
DK Medtech's unique directional scoring balloon boasts comprehensive performance with robust radial expansion and flexible axial bending. Its clinical performance has been widely recognized in both the coronary and hemodialysis access fields. The latest development, DKutting...®LL Scoring Balloon Designed Specifically for Lower Limb Arterial Interventions Demonstrates Significant Clinical Advantages in Directional Dilation Mechanism, Setting a New Standard for Peripheral Vascular Pre-dilation.
DK Medtech Special Release[Professor Ji Donghua: DKutting®Debut of LL Peripheral Scoring Balloon in Below-the-Knee Artery CTO Lesions: Case Presentation, demonstrating the fine operations of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized procedures during surgery, technical applications, complication prevention, to perioperative management, etc., the aim is to promote the standardization of diagnosis and treatment for vascular stenosis and occlusive diseases, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future diagnosis and treatment, benefiting more clinical patients.
DKutting®LL Peripheral Scoring Balloon
Debut of Below-the-Knee Artery CTO Lesion
Donghua Ji, First Affiliated Hospital of Dalian Medical University
Patient Information
Basic Information:Female, 89 years old.
Chief Complaint:Cyanosis of the left heel and sole with resting pain for over a month.
History of Present Illness:More than one month ago, the patient developed cyanosis in the left heel and sole without obvious cause, accompanied by pain during nighttime rest, which required painkillers for relief; the foot pain worsened in the past week, prompting the patient to seek medical treatment at the hospital.
Past Medical History:A history of diabetes for over 30 years, hypertension and hyperlipidemia for over 30 years, and left knee replacement surgery 5 years ago.
Physical Examination:The color of the left foot sole is cyanotic, with low skin temperature and poor local perfusion. The pulse of the left femoral popliteal artery is palpable, as is the dorsalis pedis artery, but the distal posterior tibial artery is not palpable.
Admission Diagnosis:Lower Extremity Arteriosclerosis Obliterans (Chronic Severe Threatening Limb Ischemia, Rutherford Grade 4).
Preoperative Analysis
Preoperative Analysis:The patient has Rutherford Grade 4 ischemia, a CLTI case, with the ischemic area located on the sole. The responsible vessel should be the posterior tibial artery.
Surgical Objective:
Main Objectives:Reconstruction of the posterior tibial artery and plantar arch;
Secondary Objective:Reconstruction of the plantar arch using PPL technology via the anterior tibial artery.
Surgical Strategy/Plan:
Through the anterior tibial artery to the dorsal pedal arterial arch, the PPL technique was applied to open the plantar arch;
Retrograde opening of the posterior tibial artery through the anterior tibial artery;
If reverse opening fails, antegrade + retrograde can be applied to complete SAFARI;
Finally, the antegrade reconstruction of the posterior tibial and plantar arch was completed.
The posterior tibial artery is a CTO lesion. If the lumen gain from POBA is unsatisfactory, further application can be considered.DKutting®LL Peripheral Scoring BalloonCompleted PTA
Main Treatment Process
Time | Main Treatment Process |
2024.12.25 | Antegrade puncture of the left femoral artery, angiography after insertion of a 6F sheath showed that the femoral popliteal artery was patent without significant stenosis or occlusion. The posterior tibial artery below the knee was occluded almost throughout, the plantar arch was not visible, the anterior tibial and peroneal arteries were patent, and the dorsalis pedis arterial arch was visible. |
Using the CXI support catheter in conjunction with the Regalia guidewire, access was gained to the anterior tibial artery reaching the dorsal pedal arch. Through the arcuate artery, retrograde entry was made into the lateral plantar arch and extended to the distal posterior tibial artery. The Command ES guidewire was then exchanged and left in place within the posterior tibial artery. Subsequently, the CXI catheter was advanced over the V18 guidewire through the sheath in an antegrade fashion to the origin of the posterior tibial artery, with the intima extending to the distal posterior tibial artery. The SAFARI technique was employed to achieve antegrade and retrograde guidewire rendezvous within the posterior tibial artery. A catheter was advanced antegrade through the plantar arch to the dorsalis pedis artery, and the Command ST guidewire was exchanged. | |
The posterior tibial artery was first treated with a 2.5*150mm balloon dilation. Follow-up angiography showed multiple small dissections and residual stenosis in the posterior tibial artery. | |
Then advance along the guidewireDKutting®LL 3*150mm BalloonFull-length dilation of the posterior tibial artery; | |
Final angiography showed satisfactory lumen gain in the posterior tibial artery, with no obvious dissection or residual stenosis. |
Surgical Procedure

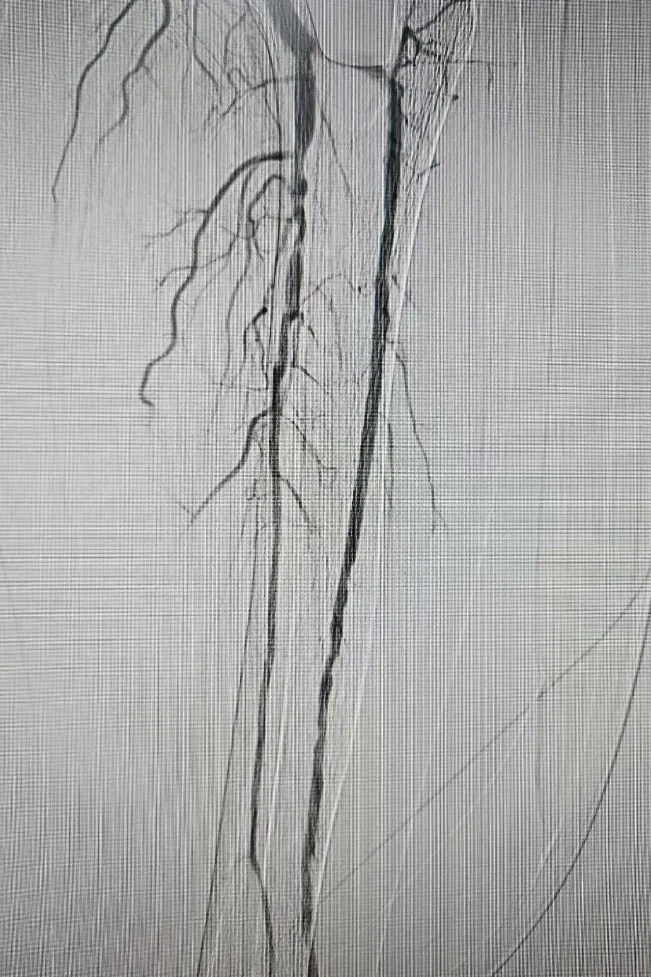

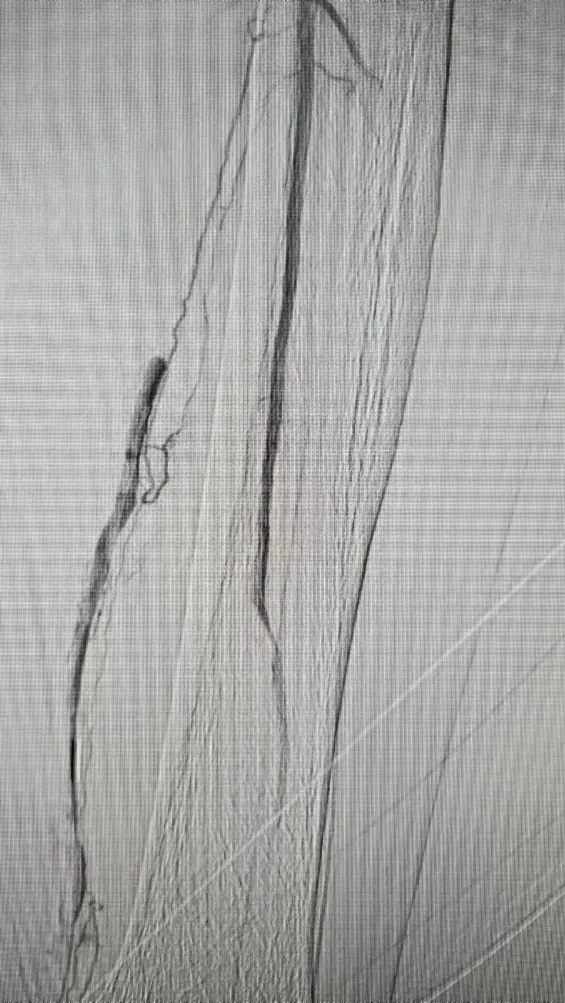

Angiography of the arteries below the knee showed that the posterior tibial artery was not visualized, while the anterior tibial and peroneal arteries were patent with multiple stenoses.

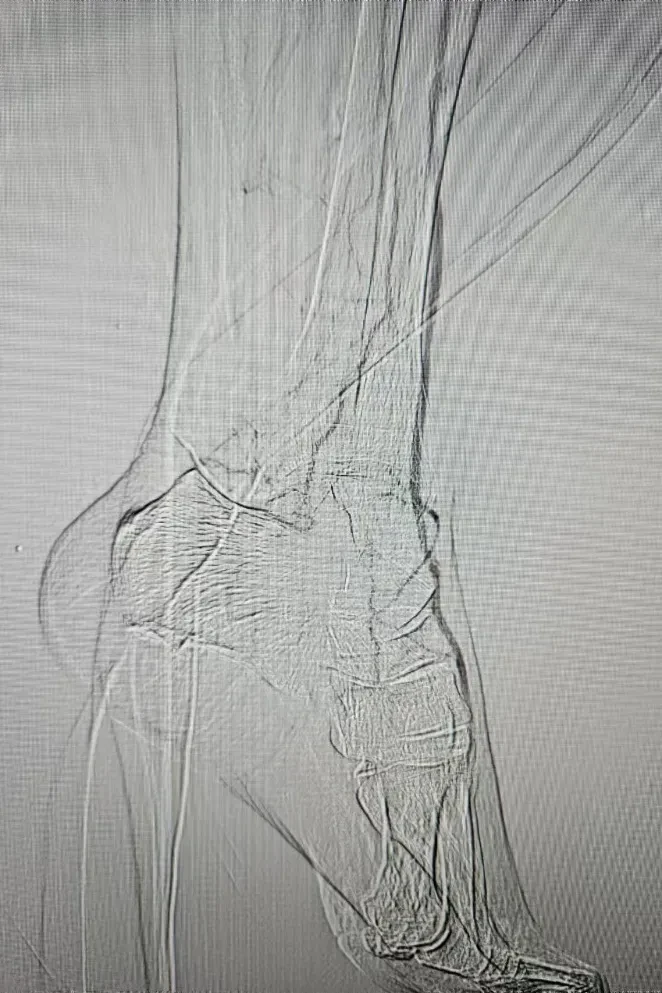

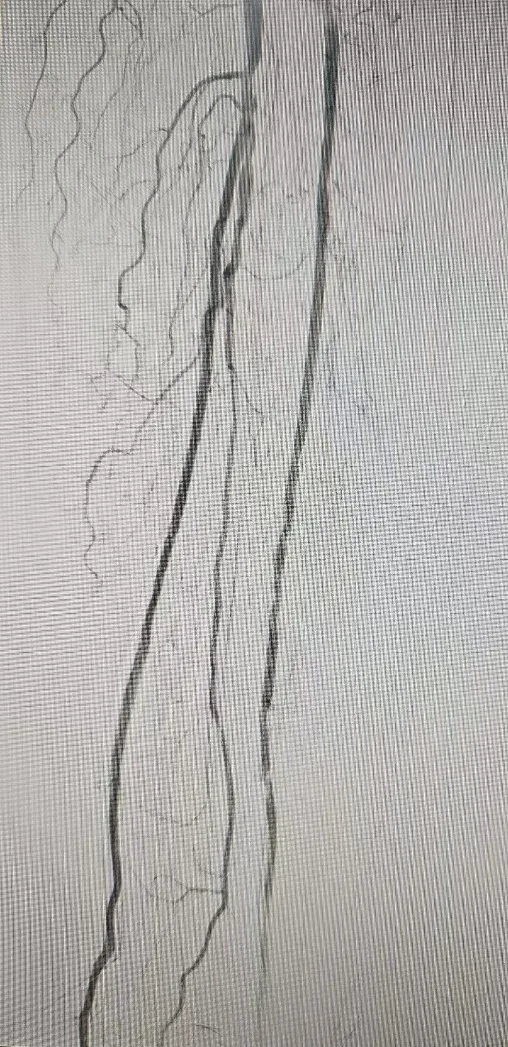

Preoperative angiography showed the anterior tibial and dorsalis pedis arteries, but the posterior tibial and plantar arch were not visible.

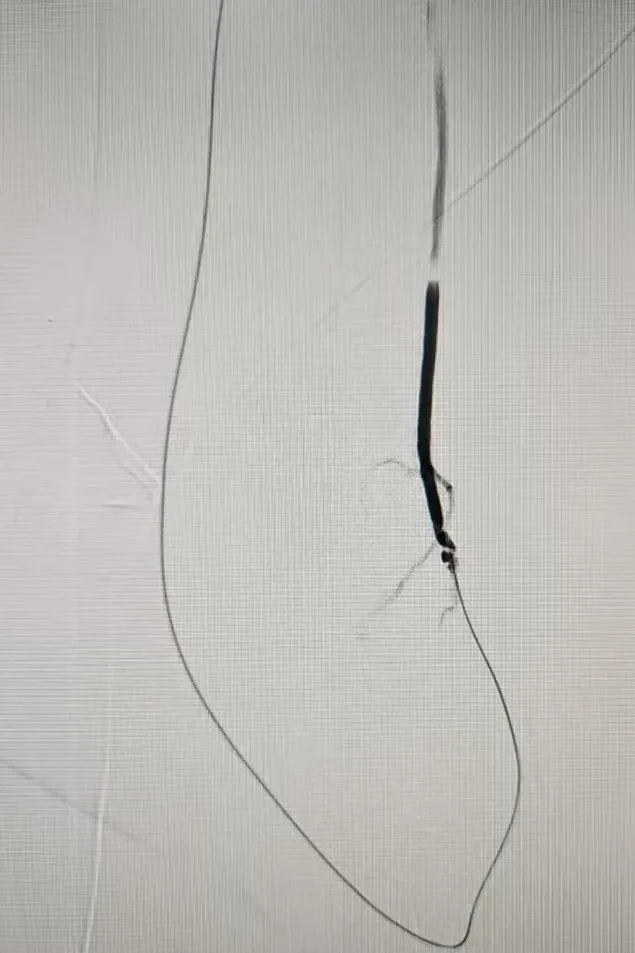

During the surgery, the PPL technique was applied retrograde through the anterior tibial artery and the dorsal pedal arterial arch to access the distal posterior tibial artery, which was confirmed by angiography via the CXI catheter.

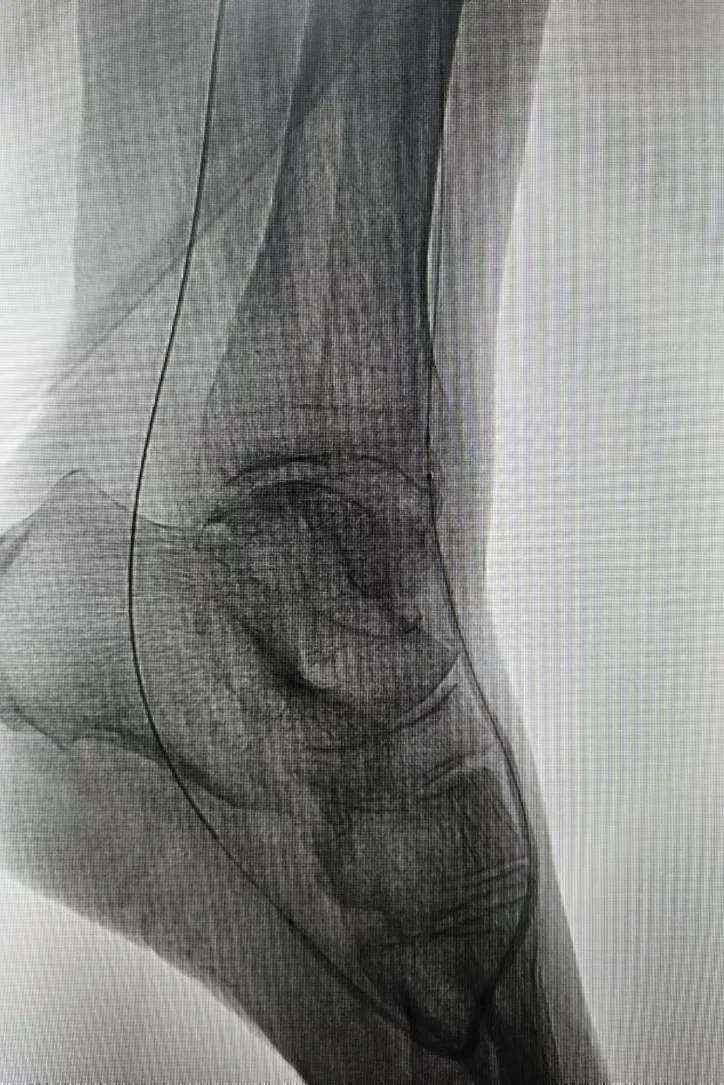

Intraoperatively, a Command ES guidewire was placed and advanced retrograde through the anterior tibial artery into the distal posterior tibial artery, followed by antegrade delivery of a CXI catheter and V18 guidewire to complete the rendezvous of the guidewire and catheter in the distal posterior tibial artery.
After the catheter and guidewire of the posterior tibial artery meet, the CXI catheter retrogrades along the guidewire into the dorsalis pedis artery reaching the distal anterior tibial artery, confirmed by angiography.
A Command ST guidewire was advanced retrograde along the posterior tibial artery into the dorsalis pedis artery, and a 2mm diameter balloon was used to dilate the dorsalis pedis artery and plantar arch.
Posterior Tibial Artery Application of 2.5*150mm Balloon Dilation

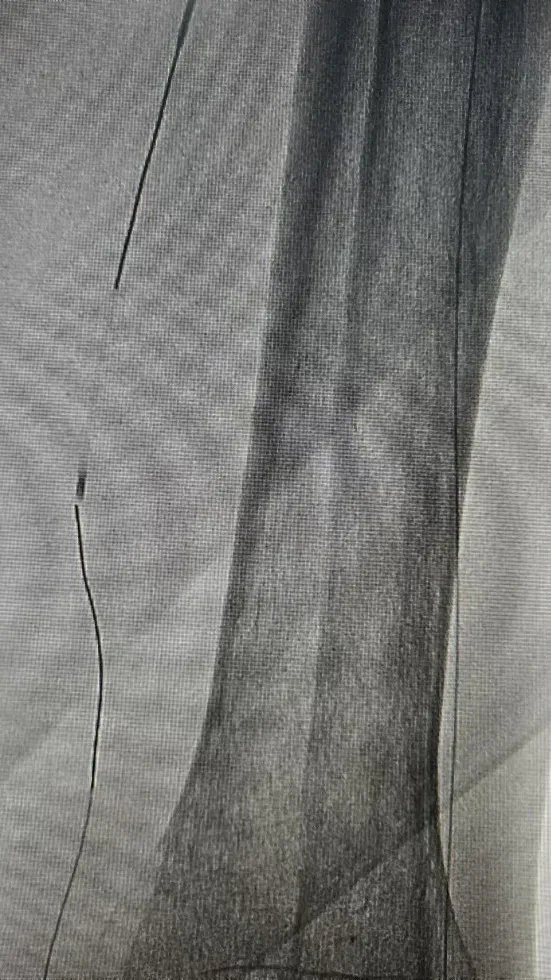

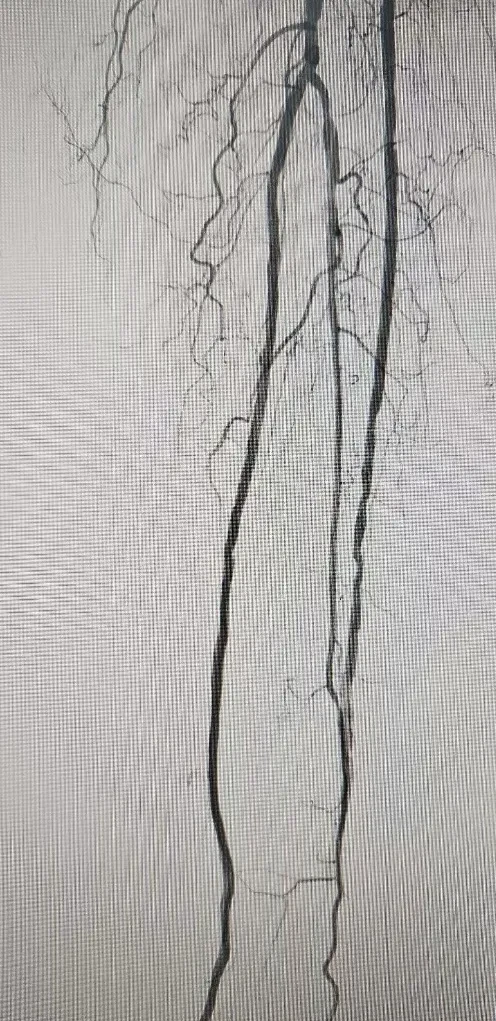

Angiography after the application of a 2.5*150mm balloon dilation on the posterior tibial artery revealed multiple small dissections and residual stenosis, with unsatisfactory luminal gain.

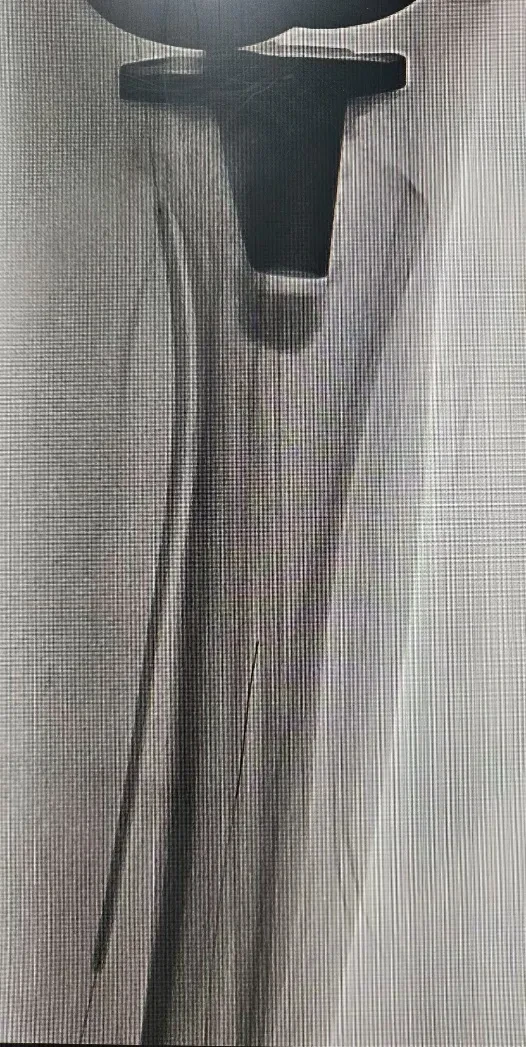

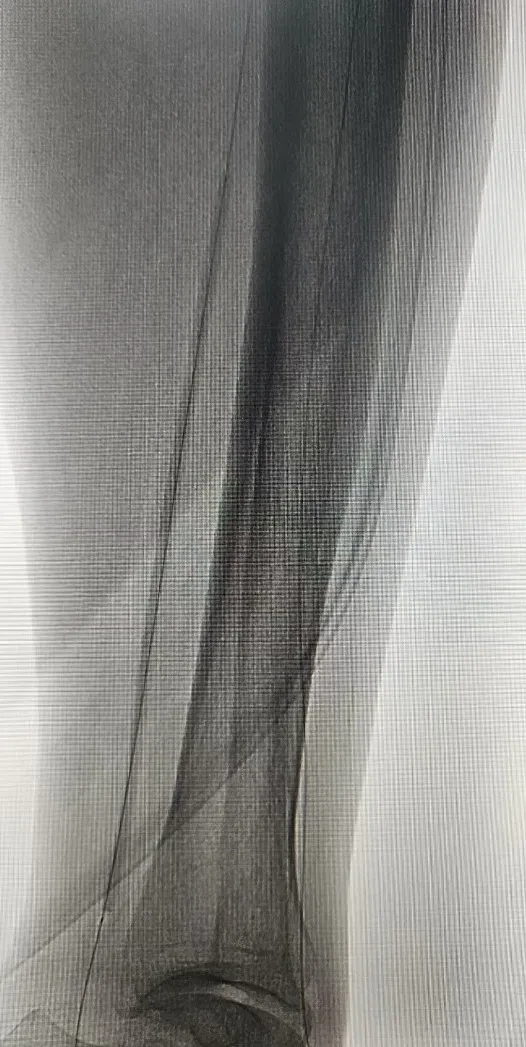

The posterior tibial artery used a 3*150mmDKutting®LL Peripheral Scoring BalloonFull-length dilation of the posterior tibial artery

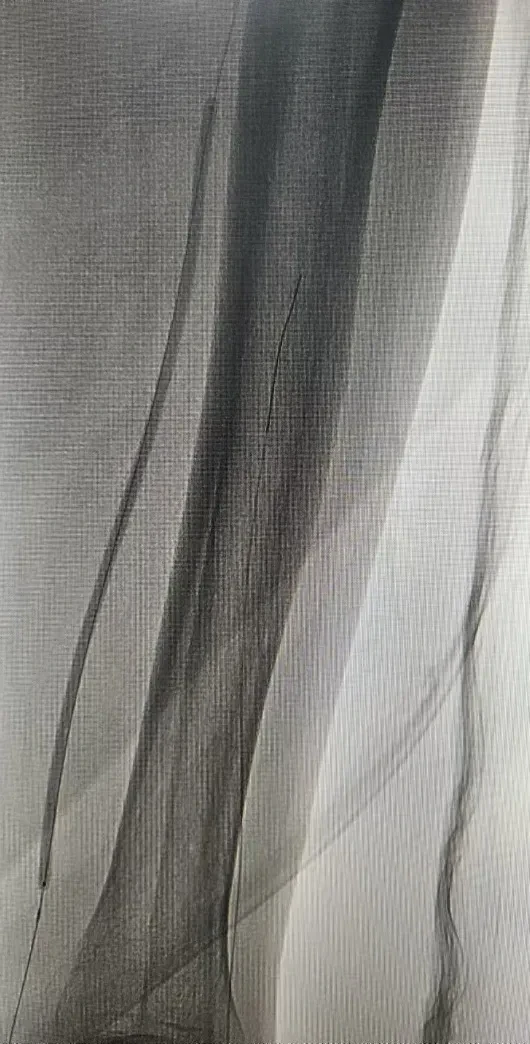

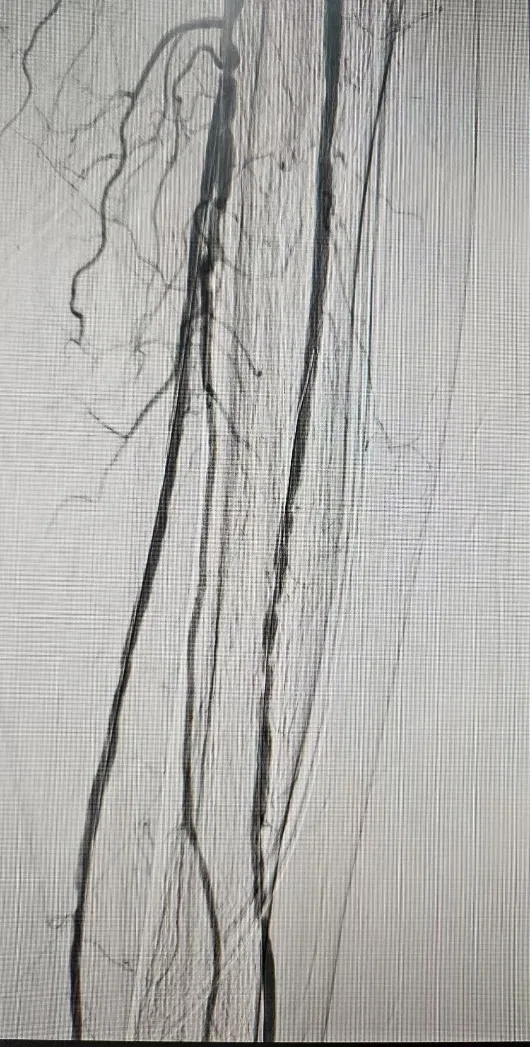

The posterior tibial artery used a 3*150mmDKutting®LL Peripheral Scoring BalloonDilation of the Posterior Tibial ArteryAngiography results from two angles show no significant residual stenosis or dissection, with satisfactory lumen gain.
Case Summary
Case Characteristics:CTO lesion of the posterior tibial artery, dissection and residual stenosis occurred after plain balloon dilation,DKutting®LL Peripheral Scoring BalloonThe lumen was satisfactorily expanded, and the stenosis disappeared.
Features/Usage Tips of the Device:DKutting®LL Peripheral Scoring BalloonExcellent performance in achieving lumen gain in infrapopliteal arteries, with good pushability, trackability, and recoil of the entire device (It is recommended to pre-dilate with a small balloon before application in occlusive lesions).
