Stenosis of autologous/artificial arteriovenous fistula (AVF/AVG) is the most common complication in hemodialysis patients. Percutaneous transluminal angioplasty (PTA) has become the primary method for maintaining dialysis access. However, the blunt and irregular tearing of the intima and part of the media by traditional balloons during PTA can cause excessive damage to the endothelial vessels, leading to intense proliferation of vascular smooth muscle cells and macrophages, which quickly results in restenosis.
In recent years, there has been continuous international exploration and clinical research on drug-coated balloons and other devices for PTA treatment of dialysis access. DK Medtech has developed the Dissolve™ AV Scoring Drug Balloon, which integrates three features—"scoring," "high-pressure," and "drug-coating"—and is the world's first third-generation drug balloon:
Directional Scoring: Uniform and regular tearing of the intima to reduce damage from blunt splitting.
High Burst Pressure: For high-resistance lesions, improving technical success rate.
Paclitaxel Coating: Effectively Inhibits Excessive Proliferation of Smooth Muscle Cells.
DK MedtechSpecially launched[Shanxi Bethune Hospital - Professor Chen Hua, Professor Wu Zhenghua: Jin Good Jin Beauty —— The First Application of Scored Drug-Coated Balloon in Shanxi] Case Presentation, demonstrating the precise operation of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, to perioperative management, etc., the aim is to promote the standardization of diagnosis and treatment for hemodialysis access stenosis, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for the future diagnosis and treatment of hemodialysis access, benefiting more clinical patients.
Jinshan Jinmei —— The First Application of Scored Drug Balloon in Shanxi
Shanxi Bethune Hospital, Chen Hua, Wu Zhenghua
Basic Information NO.1
Basic Information:Male, 80 years old.
Chief Complaint:Insufficient blood flow during dialysis for 3 days.
History of Present Illness:The patient was hospitalized 22 years ago due to symptoms of reduced urine output accompanied by generalized edema and was diagnosed with chronic nephritis. The patient underwent regular follow-up examinations, and in December 2018, a hospital check due to bilateral lower limb edema revealed abnormally elevated serum creatinine levels. Conservative treatment proved ineffective, and as serum creatinine continued to rise, dialysis treatment was initiated. The patient reported that three days ago, during hemodialysis treatment, the blood flow rate was below 180 ml/min, and they noticed a significant weakening of the thrill in the arteriovenous fistula, with a pulsatile sensation palpable near the fistula site. The patient came to the hospital for diagnosis and treatment.
Past Medical History:History of hypertension for more than ten years, with a history of arteriovenous fistula formation surgery.
Physical Examination:Nephropathy facies, anemic appearance, arteriovenous fistula in the left forearm, pulsation can be felt near the fistula site, and weak vascular murmur with thrill can be palpated proximal to the elbow near the heart.
Admission Diagnosis:Chronic kidney disease stage 5, stenosis of arteriovenous fistula in the left forearm, thrombosis of arteriovenous fistula in the left forearm, renal anemia, hemodialysis status, etc.
Patient History NO.2
Time | Main Treatment Process |
January 5, 2022 | Left Forearm Arteriovenous Fistula Balloon Dilation Procedure |
December 26, 2022 | Left Forearm Arteriovenous Fistula Balloon Angioplasty |
Preoperative Analysis NO.3
Preoperative Analysis:Preoperative ultrasound evaluation of the fistula condition revealed significant stenosis in the inflow segment and the fistula body segment.
Surgical Objective:
Main Objective: Relieve Stenosis
Secondary Objective: Inhibition of Intimal Hyperplasia
Surgical Strategy/Plan:Ultrasound-guided distal radial artery puncture of the left upper limb, followed by high-pressure scoring drug-coated balloon angioplasty for vascular stenosis dilation.
Surgical Procedure NO.4
Imaging Description:Fistula Photos

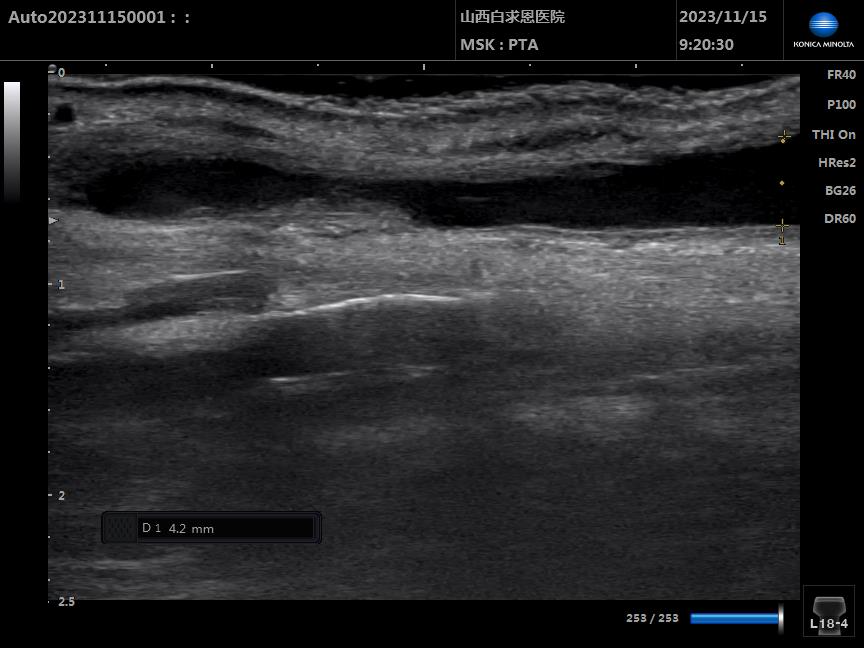

Imaging Description: Pre-stenotic Segment

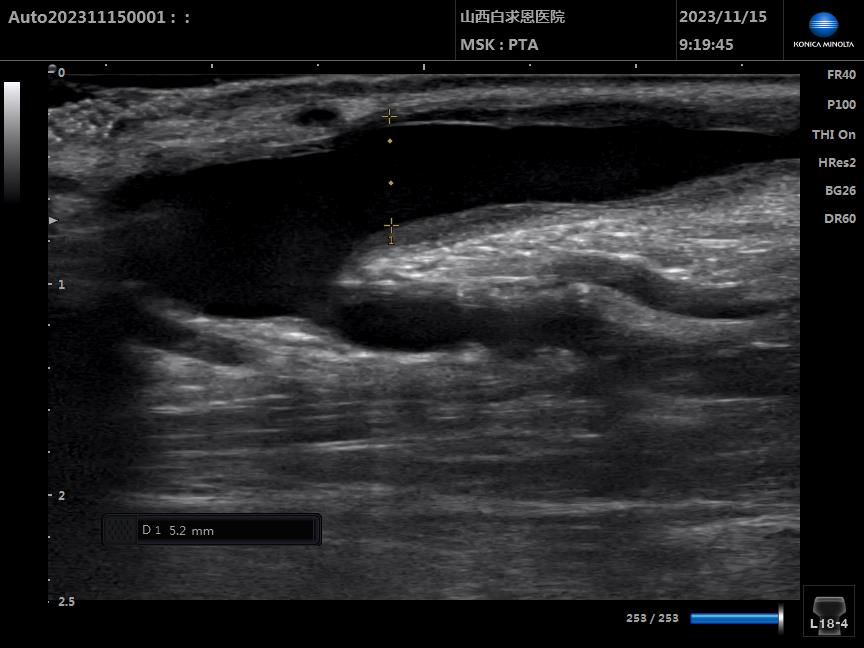

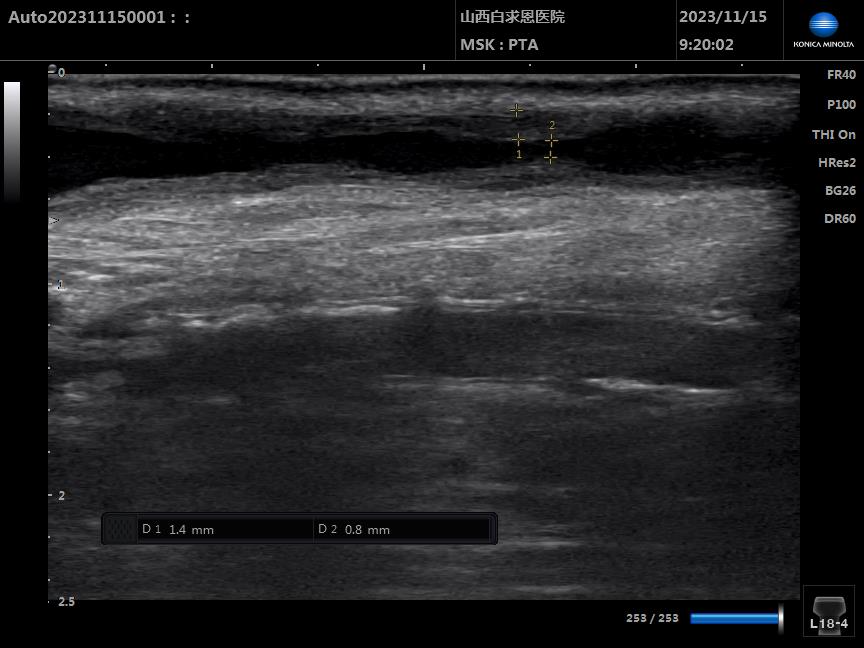

Imaging Description: Mid-segment stenosis
Imaging Description: Post-stenotic Segment

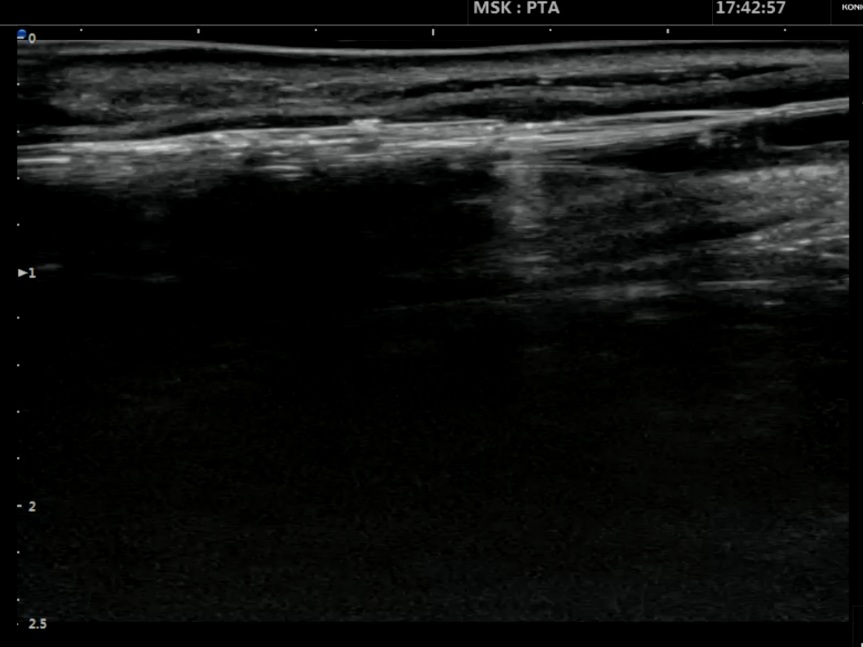

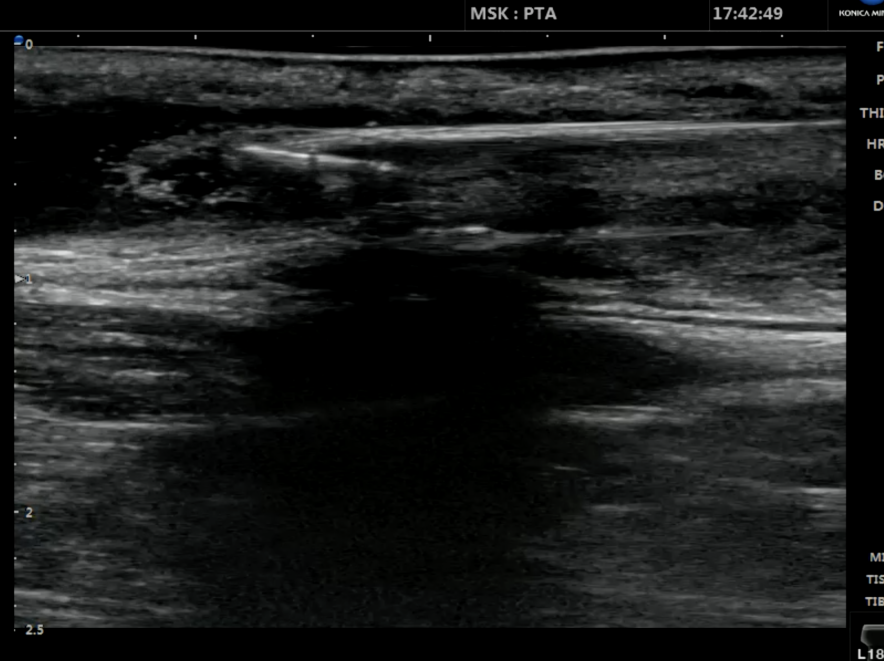

Imaging Description:Balloon Tip Position
Image Description: Balloon Tail Position
Imaging Description: Pressurization Process
Imaging Description: Pressure Holding Process

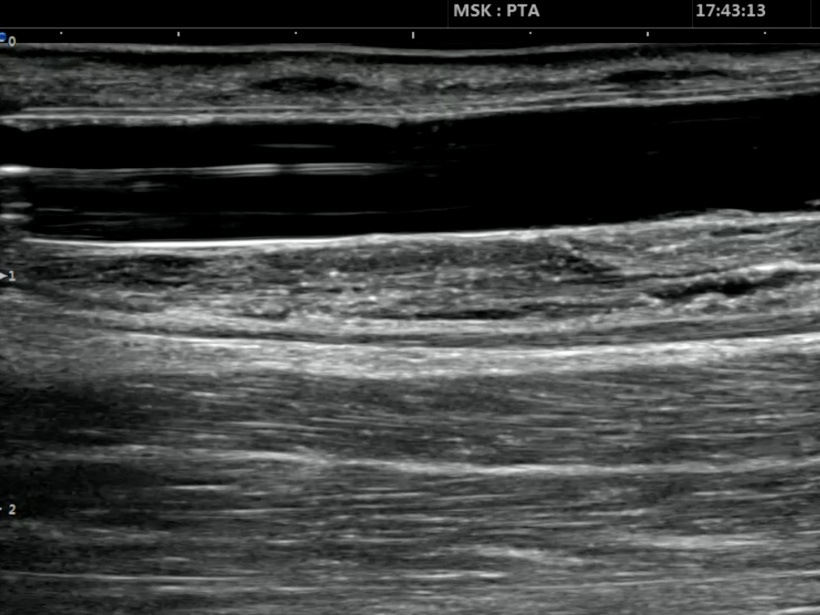

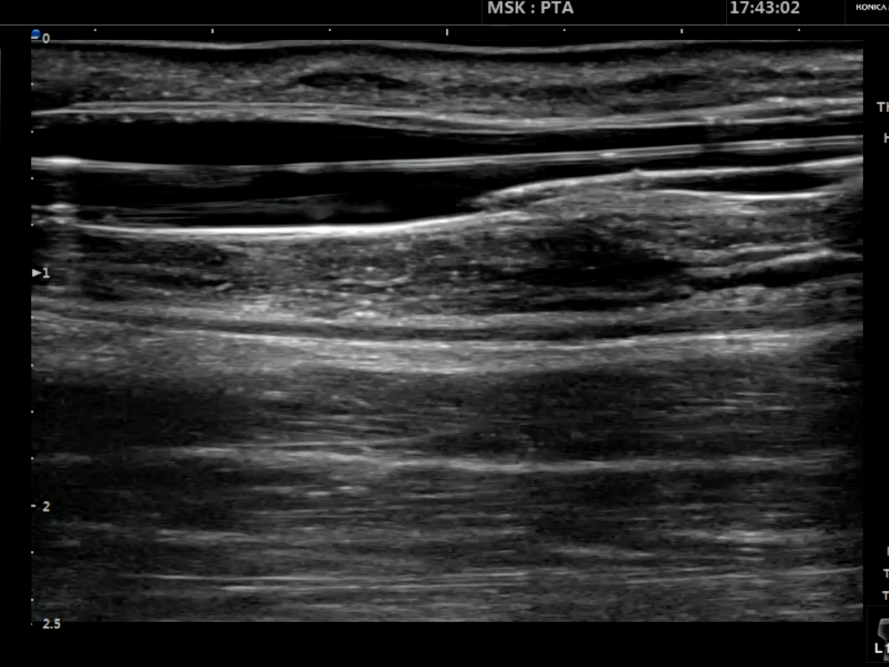

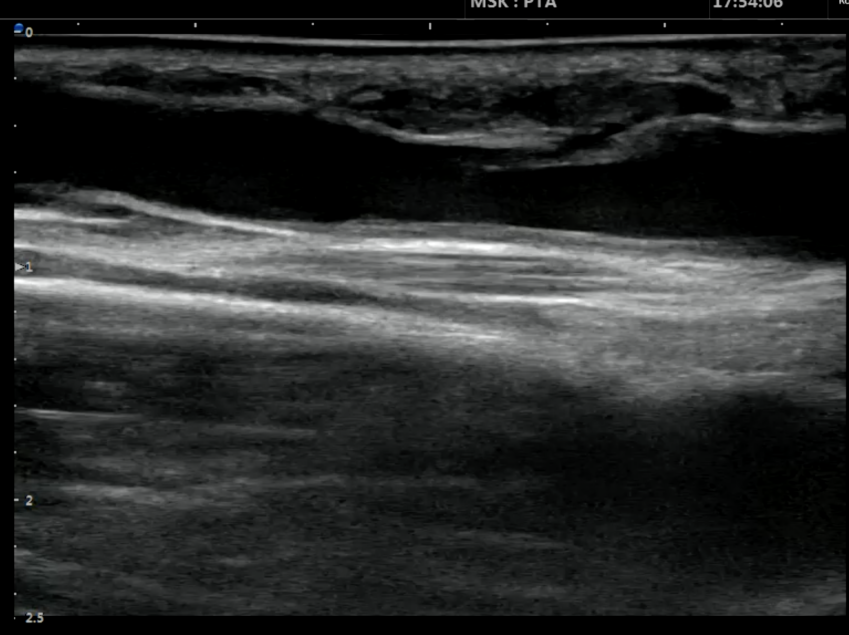

Imaging Description:In-plane image after dilation

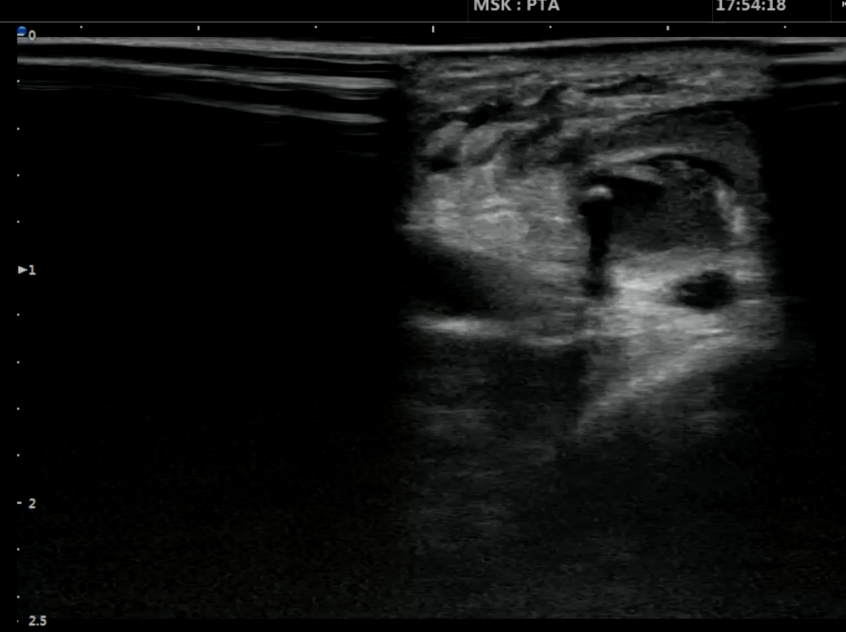

Imaging Description: Out-of-plane image at the rupture site

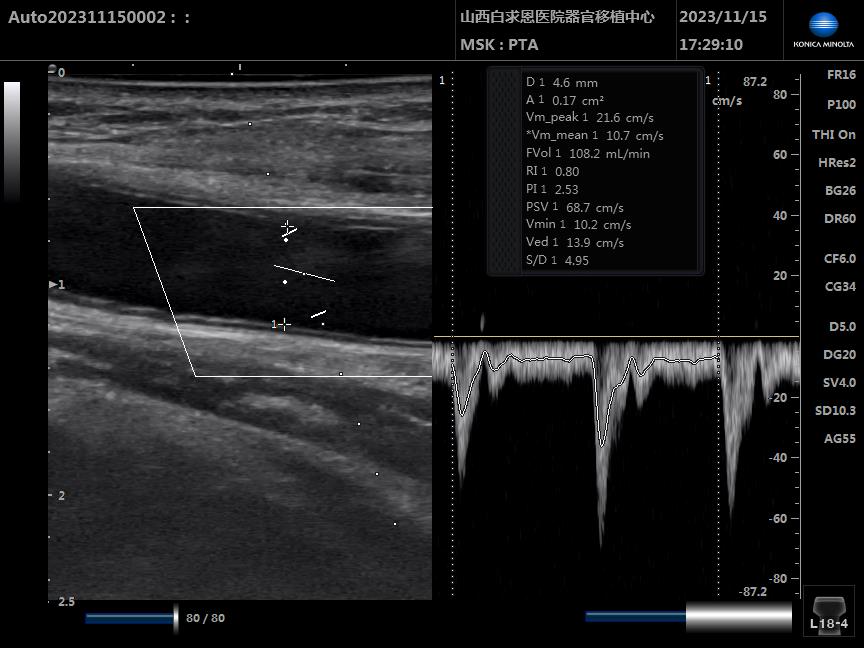

Imaging Description: Brachial Artery Blood Flow Before Treatment

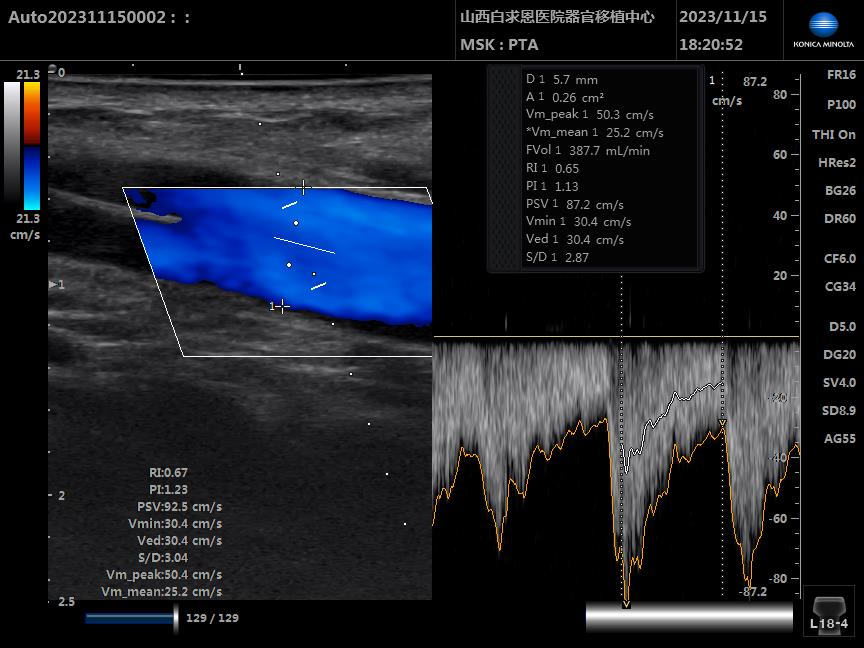

Imaging Description: Brachial Artery Blood Flow After Treatment
Follow-up NO.5
Discharge Status:Postoperatively, the patient was arranged to use the internal fistula for hemodialysis treatment. The use of the internal fistula was assessed to be in good condition. Postoperative ultrasound examination showed that the blood flow in the internal fistula was unobstructed without obvious thrombosis. Palpation revealed good thrill in the left forearm arteriovenous fistula, and a blowing murmur could be heard. There were no complaints of discomfort after dialysis. The patient was informed of precautions and given treatment plans to adjust general condition, improve cardiac function, and regulate blood pressure, etc. The patient was then discharged with regular follow-up arranged.
Case Summary NO.6
Case Characteristics:Elderly male, low blood pressure, loose subcutaneous tissue in the arm, ultrasound examination shows severe intimal hyperplastic stenosis in the inflow segment and fistula segment vessels.
Preoperative Assessment Key Points:The patient's blood pressure condition, reference vessel diameter, and vessel stenosis length.
Surgical Strategy/Technical Key Points:1. Size of the introducer sheath; 2. Avoid contact and wetting of the balloon portion; 3. Operate quickly and accurately; 4. Pay attention to dilation pressure, beware of vascular rupture; 5. Ensure contact time.
Device Features / Usage Tips:Correct use of protective sheaths, avoidance of overly thin introducer sheaths, complete coverage of lesions by the balloon, and ensuring sufficient drug contact.
Introduction of Experts
Professor Hua Chen
Surgical Guidance
Deputy Director of the Organ Transplant Center at Shanxi Bethune Hospital.
Proficient in establishing and maintaining various types of blood purification access, conservative and surgical treatment of SHPT in end-stage renal disease, kidney transplantation, pancreas transplantation for both adults and children.
Social Appointments:President of the Organ Transplant Physicians Branch of the Shanxi Province Medical Association;Member of the Vascular Access Group, Chinese Hospital Association;Member of the Pediatric Organ Transplantation Professional Committee of the Chinese Medical Doctor Association;Member of the Transplantation Technology Branch of the China Medical Biotechnology Association;Member of the Transplantation and Dialysis Branch of the Chinese Society of Biomedical Engineering;Chairman of the Hemodialysis Access Group, Organ Transplant Physicians Branch, Shanxi Province Medical Association;Chairman of the Youth Committee of the Organ Transplant Physicians Branch of the Shanxi Province Medical Association;Member of the Organ Transplantation Professional Committee of the Shanxi Medical Association;Vice Chairman of the Interventional Nephrology Professional Committee of the Shanxi Province Medical Doctor Association;Editorial Board Member of Chinese Journal of Organ Transplantation;Editorial Board Member of the Chinese Journal of Cells and Stem Cells.
Awarded the 2017 Shanxi Province May 1 Labor Medal.
Professor Wuzhenghua
Surgeon of this medical record
Deputy Chief Physician of the Organ Transplant Center at Shanxi Bethune Hospital.
Proficient in establishing and maintaining various types of blood purification access, conservative and surgical treatment of SHPT in end-stage renal disease, kidney transplantation, and pancreas transplantation for both adults and children.
Social Appointments:Vice President of the Organ Transplant Physicians Branch of the Shanxi Province Medical Association;Member of the Transplantation Technology Branch of the China Medical Biotechnology Association;Member of the Youth Alliance for Hemodialysis Access of the Asia-Pacific Vascular Academic Union;Vice Chairman of the Organ Transplantation Rehabilitation Health Management Committee of the Shanxi Province Health Management Association;Vice Chairman of the Hemodialysis Access Group, Organ Transplant Physicians Branch, Shanxi Province Medical Association;Member of the Interventional Nephrology Committee of the Shanxi Province Medical Doctor Association;Standing Committee Member of the Youth Committee of the Organ Transplant Physicians Branch of the Shanxi Province Physicians Association;Honorary Chairman of the Nursing Group, Professional Committee on Blood Purification Access, Branch of Organ Transplant Physicians, Shanxi Province Medical Association;Honorary Chairman of the Datong Group, Professional Committee on Blood Purification Access, Branch of Organ Transplant Physicians, Shanxi Province Medical Association.
Department Introduction
The Organ Transplant Center of Shanxi Bethune Hospital is one of the "three major medical centers" that the National Regional Medical Center focuses on building.
The center carries out kidney transplantation, pancreas transplantation, lung transplantation, and multi-organ combined transplantation. It also conducts fundamental theoretical research on organ transplantation, including transplant pathology, biochemistry, transplant immunology, organ preservation, as well as the screening and application of immunosuppressants.
Committed to the "integrated" treatment of chronic kidney disease, we carry out various sub-specialty works targeting complications arising from end-stage renal disease. Among these, our work in establishing and maintaining hemodialysis access, as well as conservative and surgical treatments for secondary hyperparathyroidism, leads within the province. We have an independent hemodialysis access operating room equipped with a fully automatic angiography machine, Doppler ultrasound imaging system, and surgical transmission system. Additionally, we are the Hemodialysis Access Training Base of the Shanxi Province Physicians Association and are responsible for hemodialysis access technical training throughout the province.
