Another Success Case: Domestic Coronary IVL Technology Demonstrates Clinical Excellence

Jan 09, 2024 08:52 CST Updated 08:52

SONOSEMI

Active Vascular Implantable and Interventional Medical Device R&D and Manufacturer

Source of the article:Cardiology Department of Aerospace Center Hospital；Editor: Bai Xiaofei

Reprint Requirements: If the source of the article is indicated at the beginning of the text, it can be reprinted directly.

Heart Future

Recently, Su Gong, Deputy Director of the Cardiology Department at the Aerospace Center Hospital, led the coronary team in utilizingSONOSEMISelf-developedTheLiqMagic C14 Shock Wave Coronary Balloon，Successfully performed coronary interventional revascularization treatment for complex coronary heart disease patients with chronic coronary occlusion, severe calcification, and left main stem lesions, fully demonstratingAerospace Center HospitalThe strong strength of the coronary team has also becomeChinese Coronary Shockwave Balloon TechnologyInChina General Technology Group National Heart CenterFirst Application。

# Case Summary

The patient is a 63-year-old male who presented to a local hospital with recurrent chest pain on exertion for 6 years, worsening over 3 days. He was diagnosed with triple-vessel coronary artery disease and was referred for further treatment.ComeAerospace Center HospitalMedical consultation.

Coronary angiography shows: Left Main + Triple Vessel Disease

Left Main - Proximal Left Anterior DescendingSevere Calcification with Severe StenosisThe circumflex artery is relatively small with diffuse lesions in the middle segment. The proximal to middle segment of the right coronary artery has chronic occlusion.

# Surgical Plan

After clinical evaluation, it was recommended that the patient opt for coronary artery bypass grafting (CABG). After communicating with the patient and their family, they expressed understanding but refused the bypass treatment. This surgical case involvesTwo Key Difficulties：OneThe right coronary artery has a chronic occlusion, with the distal end relying on retrograde blood supply from the left coronary artery; therefore, the right coronary artery must be opened first before considering interventional treatment for the left coronary artery., LeftSevere calcification lesion in the main trunk-left anterior descending artery, combined with tortuosity of the left anterior descending artery.The patient has obvious ischemic symptoms, severe and complex coronary artery disease, and the surgical risk is extremely high.。

Considering the inability to fully expand with a non-compliant balloon during surgery, the application of coronary rotational atherectomy poses significant challenges and high risks, with a higher likelihood of intravascular complications. After discussion, the surgical team, consisting of Chief Physician Su Gong, Attending Physicians Wang Huaiqiang and Han Xiongyi, decided to make recommendations.Fractional Staged Interventional Therapy。

# Surgical Procedure

The First Interventional Surgery: Successful recanalization of the chronic total occlusion lesion in the right coronary artery on the day of angiography, with 2 stents implanted in the right coronary artery.

The Second Interventional Surgery: One month later, the patient came to the Aerospace Center Hospital for treatment of left main + anterior descending branch lesions.

Director Su's team decided to adoptChina-Produced Coronary Shockwave Balloon TechnologyJointIntravascular Ultrasound (IVUS)AndCoronary Angiography FusionTechnical Solution, and prepare backup plans such as coronary rotational atherectomy, intra-aortic balloon pump mechanical circulatory support, etc.

Under the coordination of the catheterization laboratory and the nursing team led by Haiyan Liu,Chinese-produced Shockwave Balloon Precisely Targets Coronary Artery Calcification Lesions,Efficiently and SafelyDisrupted superficial and deep calcifications in coronary arteries, significantly improving vascular compliance.Under the guidance of IVUS, the stent was accurately positioned and released, successfully completing the revascularization of the left main anterior descending artery. Postoperative examination indicated complete stent expansion and good wall apposition. The patient's vital signs were stable during the procedure, with no discomfort reported.

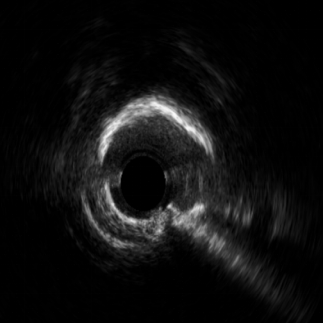

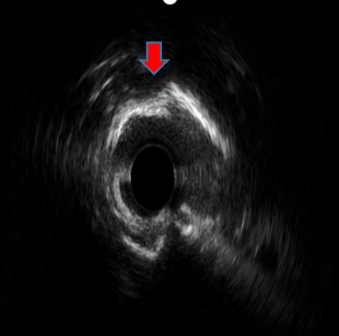

Left: IVUS before shock wave balloon treatment shows severe calcified plaque; Right:IVUS Shows Calcified Plaque Fracture After Shockwave Balloon Treatment

▲Image SourceSelfAerospace Center Hospital

# LiqMagic C14 Shockwave Coronary Balloon Catheter

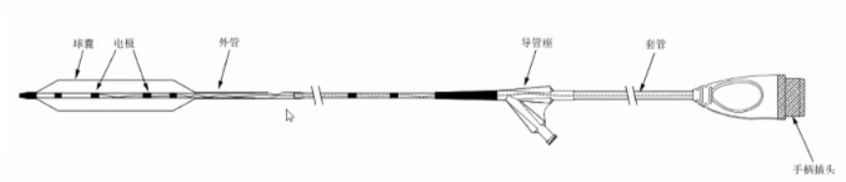

LiqMagic C14 Shock Wave Coronary Balloon Catheter adopts the classic design of coronary balloonRapid Exchange (Rx) Design, mainly composed of a balloon, shock wave electrodes, an outer balloon tube, a catheter hub, a cannula, and a handle plug (as shown in the figure below).

▲Image SourceFromCompany Official Website

The balloon has the following four characteristics:：

（1）Higher Burst Pressure

RBP can reach 14 atm, which effectively compensates for the impact of shock waves on the balloon's burst pressure during pulse discharge, preventing balloon rupture and significantly enhancing surgical safety.

（2）Excellent Pushability

The distal end is coated with a smooth hydrophilic coating to enhance the lubricity of the catheter surface, thereby improving the trackability of the balloon catheter and minimizing frictional damage to blood vessels during catheter delivery as much as possible.

（3）Longer Lifecycle

By optimizing the electrical performance of discharge pulses and the electrode structure, the electrode's wear during the discharge process is effectively reduced, thereby increasing the number of discharges.

（4）More Balloon Models

The balloon specifications are 2.5/2.75/3.0/3.25/3.5/3.75/4.0*12 (mm), with a wide range of applications.
