Intimal hyperplasia at the AVG venous anastomosis is the primary cause of AVG stenosis. Additionally, intimal hyperplasia in the outflow tract is also a contributing factor to AVG stenosis and dysfunction. Current guidelines consistently recommend PTA as the first-line treatment for AVG stenosis. Dense fibrosis in the stenotic vein segment or scar tissue proliferation at puncture sites makes it difficult to fully dilate some lesions with standard-pressure balloons. This is particularly true for refractory and long-segment stenoses, which are the main reasons for surgical failure and low patency rates. The underlying causes may be related to irregular and forceful tearing of the intima and parts of the neotissue in the media by the balloon during PTA, leading to endothelial vascular injury and intense proliferation of vascular smooth muscle cells and macrophages. In recent years, there has been growing international exploration and clinical research on the use of high-pressure balloons, scoring balloons, and drug-coated balloons for PTA treatment of dialysis access. DK Medtech specializes in the research, development, and production of vascular interventional medical products, with a focus on innovative balloon technologies. They have developed the Dissolve™ AV Scoring Drug Balloon, which integrates "high pressure," "scoring," and "drug coating" to address multiple key challenges associated with hemodialysis access stenosis.
DK MedtechSpecially launched[Professor Xu Yong, Professor Liu Xinxin, Professor Ling Jie from Xiangyijia Nephrology Doctors Group, Changsha Jieao Hospital: Management of Recurrent Stenosis in AVG Outflow Tract] Case Presentation, demonstrating the detailed operations of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, perioperative management, and other aspects, the aim is to promote the standardization of diagnosis and treatment for hemodialysis access stenosis, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future hemodialysis access diagnosis and treatment, benefiting more clinical patients.
Repeated Stenosis Management of AVG Outflow Tract
Xiang Yi Jia Nephrology Doctors Group - Changsha Jie Ao Hospital: Xu Yong, Liu Xin Xin, Ling Jie
Basic Information NO.1
Patient:Male, 48 years old.
Chief Complaint:Regular hemodialysis for 18 years, high dialysis venous pressure for half a month.
History of Present Illness:18 years ago, he was diagnosed with chronic kidney disease at the uremic stage due to fatigue and poor appetite in another hospital, and then started regular hemodialysis. During this period, he visited our hospital multiple times due to access issues. Half a month ago, he experienced high venous pressure during dialysis, which reached over 300mmHg at its highest, and after dialysis, it took more than 2 hours to stop bleeding by needle compression, so he came for consultation.
Past Medical History:Previous history includes "reduction, bone grafting, and internal fixation with a plate for a right intercondylar and supracondylar femoral fracture due to trauma," a history of temporary neck catheter placement surgery, a history of arteriovenous fistula formation surgery in both forearms, and a history of parathyroidectomy.
Physical Examination:Body Temperature: 36.3°C, Pulse: 98 beats/min, Respiration: 20 breaths/min, Blood Pressure: 128/88 mmHg. A thrill and a firm lump can be palpated at the anastomosis of the arteriovenous fistula, with faint vascular murmur audible.
Admission Diagnosis:Preoperative Diagnosis: 1. Stenosis of arteriovenous fistula 2. Chronic renal insufficiency, uremic stage, uremic cardiomyopathy, renal anemia, renal hypertension.
History of Vascular Access NO.2
Time | Main Treatment Process |
2005 | Initiate Arterial Direct Puncture Dialysis |
2008 | Left forearm AVF |
2010 | Left AVF dysfunction, establish right forearm AVF |
2019 | Dysfunction of the forearm AVF, reconstructed at another hospital |
2020 | Right-sided outflow tract stenosis of the internal fistula, underwent patch surgery |
July 2021 | The right AVF was completely occluded from the anastomosis to the elbow, and PTA + thrombectomy surgery was performed at our hospital. |
November 2021 | The right AVF was completely occluded again, so the second PTA + thrombectomy surgery was performed. |
July 2022 | High Tension in Internal Fistula Makes Hemostasis Difficult During the Third PTA Surgery |
September 2022 | Re-occlusion led to thrombectomy + artificial vascular grafting (outflow tract) |
November 2022 | Due to the high tension of the internal fistula, it was difficult to stop the bleeding, and the patient visited our hospital for the 5th time. |
January 2023 | The 6th Time: Restenosis of the Outflow Tract, Treated with Drug-Coated Balloon + Thrombectomy |
November 2023 | The 7th Time: Restenosis of the Outflow Tract, Treated with High-Pressure Scoring Drug-Coated Balloon + Thrombectomy |
Preoperative Analysis NO.3
Surgical Objective
Main Objectives:Clinical Manifestations of High Venous Pressure During Dialysis Resolution for More Effective Dialysis
Secondary Objectives:Extend the Service Life of Dialysis Access, Reduce Intervention Frequency
Surgical Strategy/Plan
Balloon dilation (using high-pressure scored drug-coated balloon) + incision and thrombectomy
Abandon the internal fistula and switch to artificial blood vessels.
Long-term Care
Surgical Procedure NO.4

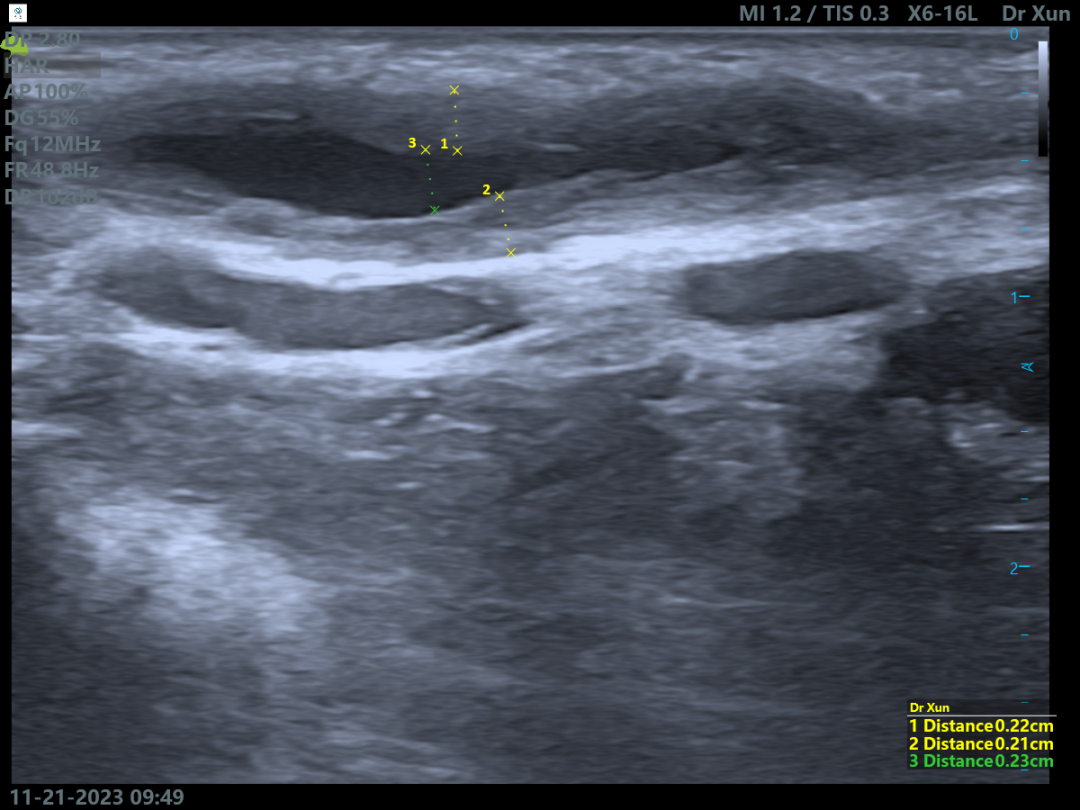

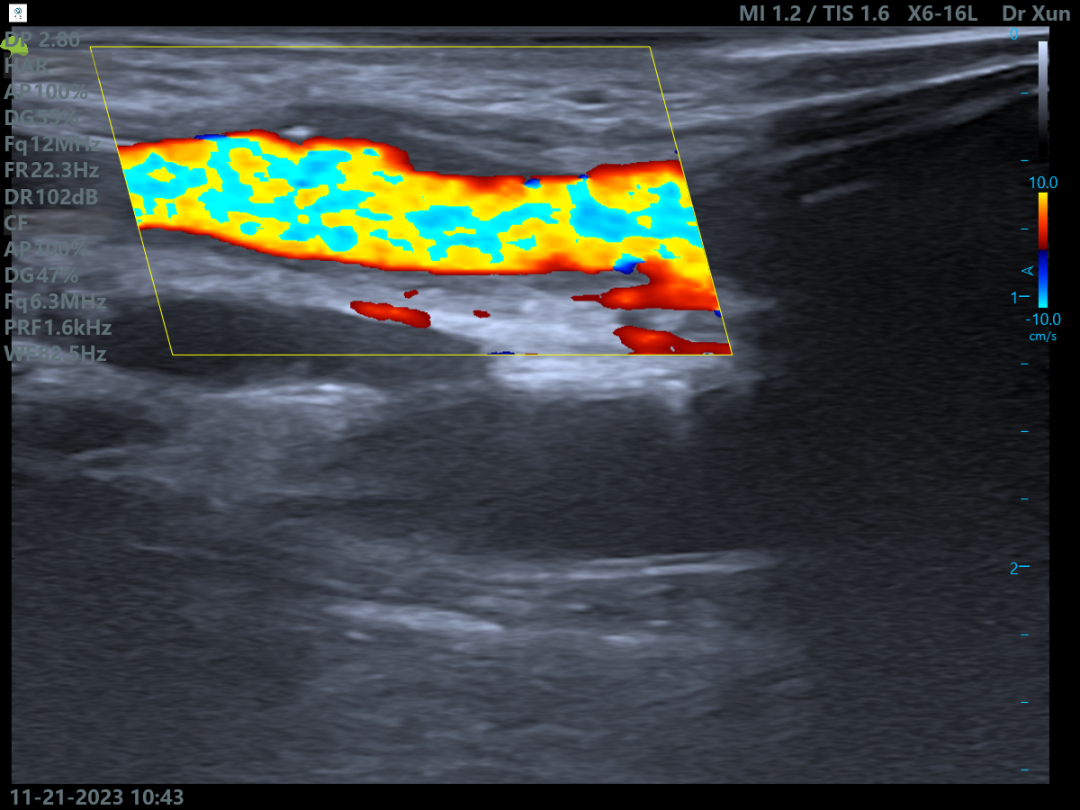

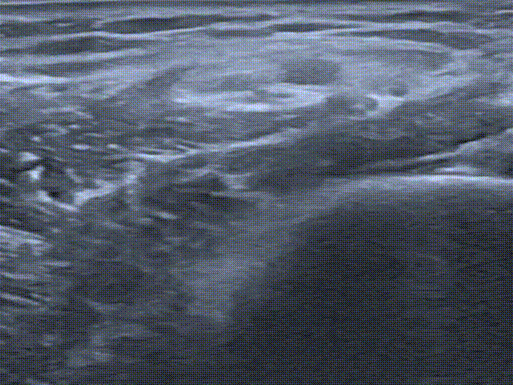

Preoperative assessment showed aneurysmal dilation and intimal thickening, with multiple PTA surgeries performed.
An 8F short sheath was placed into the aneurysm-like dilation, and a .35 guidewire was inserted, smoothly passing through the stenotic segment.
The balloon was placed into the stenotic segment and began to expand, maintained for 90 seconds, repeated two to three times.

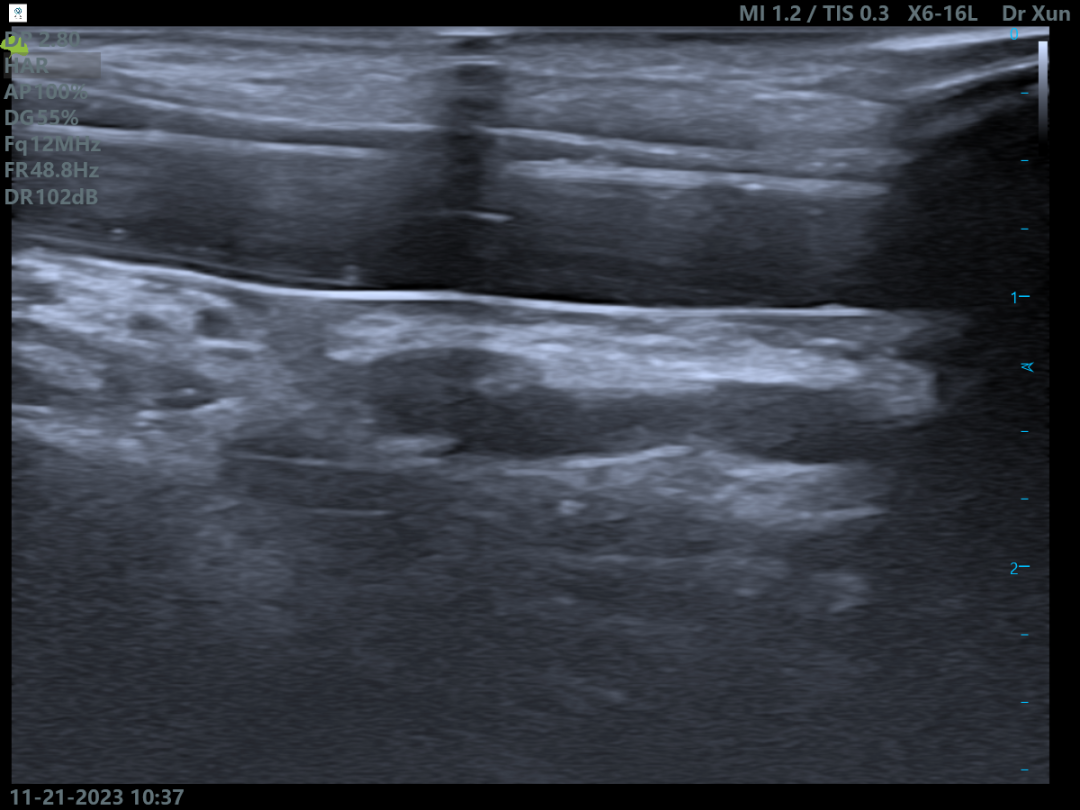

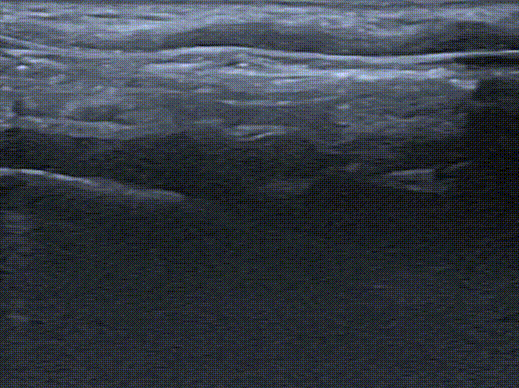

After dilation, the narrowed segment of the blood vessel is visible, with a significantly increased effective lumen.

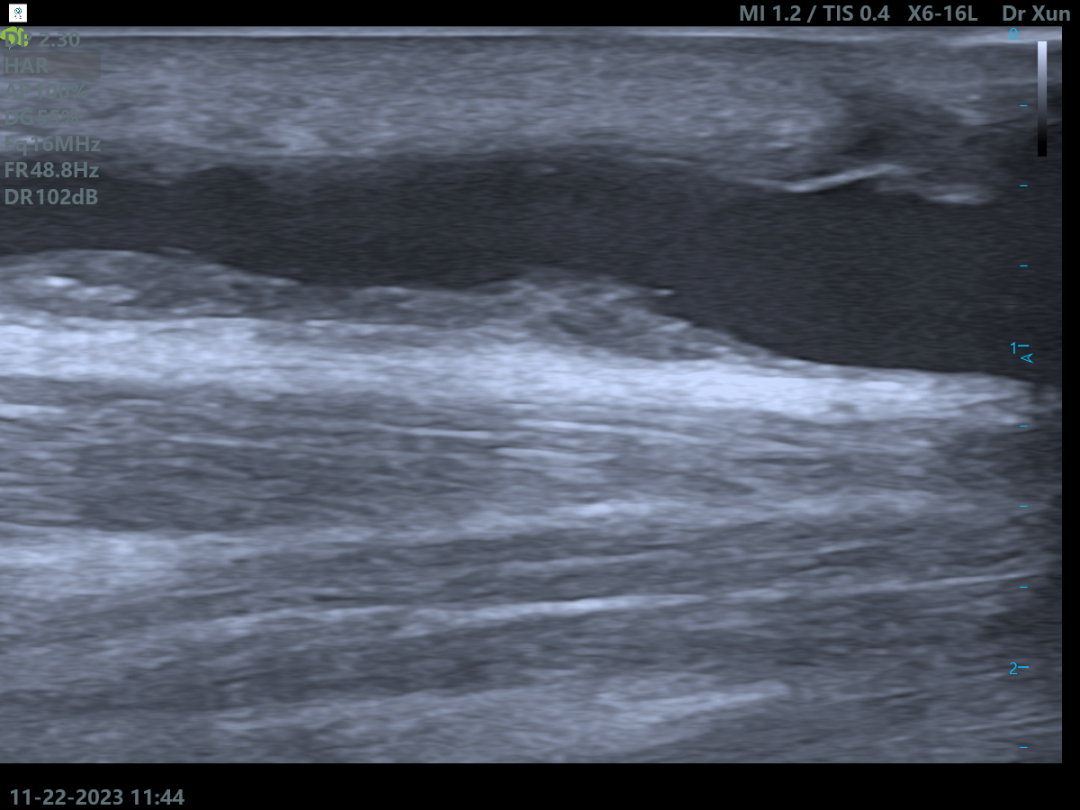

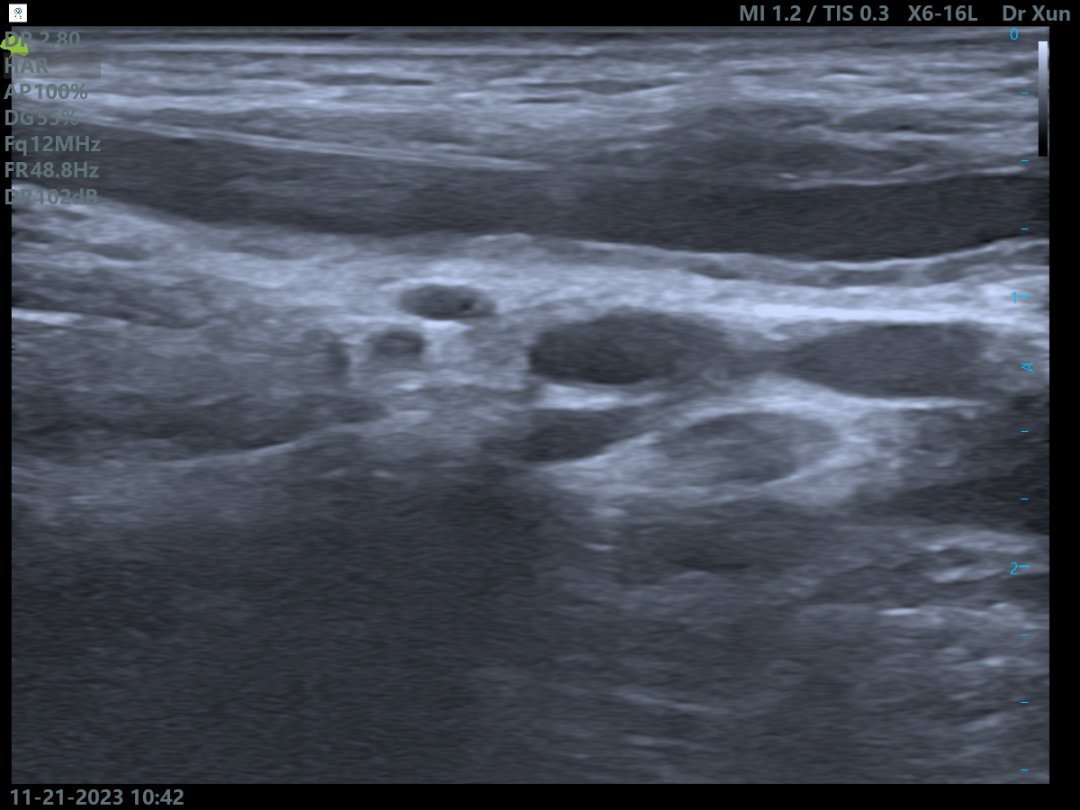

On the second day after the operation, the复查showed that the vascular cavity's intima had significantly improved compared to immediately post-operation.
Follow-up NO.5

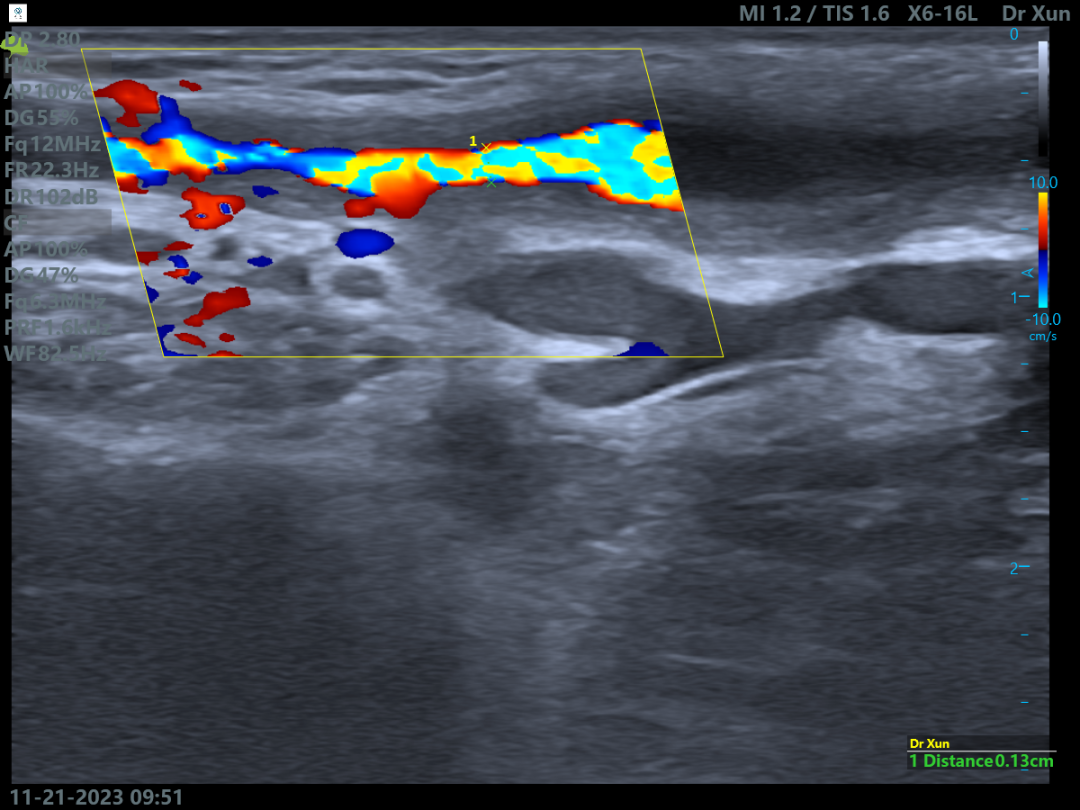

Discharge Status:The patient's condition is stable. Re-examination of the color Doppler ultrasound of the arteriovenous fistula in the right upper limb shows: RI 0.5, blood flow 1122 ml/min (preoperative 275 ml/min). The venous pressure during dialysis is around 100 mmHg, and bleeding can be stopped with 20 minutes of compression after needle removal post-dialysis.
Case Summary NO.6
Case Characteristics:Long-term dialysis patient with multiple access surgeries.
Preoperative Assessment Key Points:Based on the patient's own vascular conditions, a suitable surgical plan is generally formulated.
Surgical Strategy/Technical Key Points:It is planned to insert the sheath from the arterial puncture site, pass through with a .35 guidewire towards the heart, and after reaching the lesion site, place the balloon for dilation.
Device Features / Usage Tips:Reduce the contact between the balloon body and the external environment (select an 8F short sheath; do not remove the protective sleeve from the balloon body, advance the balloon along the guidewire to the sheath opening until it is snugly fitted), minimizing drug loss; before starting dilation, ensure the balloon is positioned at the lesion site; maintain balloon dilation for 90-120 seconds; after releasing pressure, rotate the balloon 60° and dilate again; during expansion, minimize coverage of the normal vessel wall.
