Case Report by Prof. Cao Hanhua's Team: Management of Complex Cephalic Arch Stenosis with Recurrent Thrombosis in Arteriovenous Fistula

Cao Hanhua, Kecheng District People's Hospital

Surgical Objective

• Main Objectives:Increase vascular diameter through PTA treatment with a scored drug-coated balloon;

• Secondary Objective:Inhibit intimal hyperplasia and improve the patency rate of arteriovenous fistulas.

Surgical Strategy/Plan:Upper Limb Vein and Central Venous Angiography + Balloon Dilatation for Stenosis of Left Cephalic Vein and Left Subclavian Vein (Dissolve™ AV) under DSA.

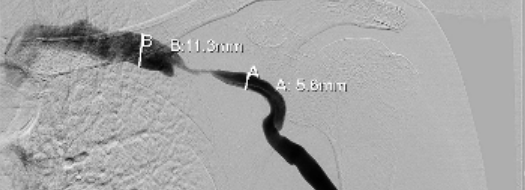

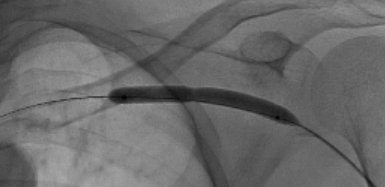

After puncturing the cephalic vein of the upper arm, a 7F vascular sheath was inserted. The guidewire passed through the tortuous segment of the cephalic vein, and the catheter was advanced into the superior vena cava via the cephalic vein. A 5mm high-pressure balloon was used for dilation at 18 ATM, maintained for 2 minutes. Post-procedure angiography showed rebound of the stenotic lesion.

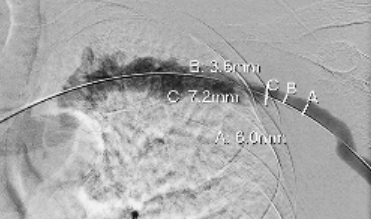

Post-procedure angiography showed improvement in the stenotic lesion, no contrast extravasation, and a minimum lumen diameter of 3.6 mm at the most narrowed site.

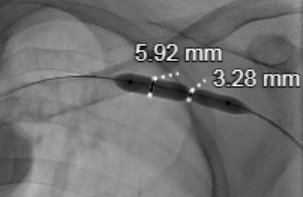

A 7mm high-pressure balloon was inserted through a guidewire exchange and repeatedly dilated at the stenotic lesion located at the junction of the left cephalic vein and subclavian vein. The balloon was difficult to fully expand, and repeated dilations were performed twice at 16ATM, with a maintenance time of 2 minutes.

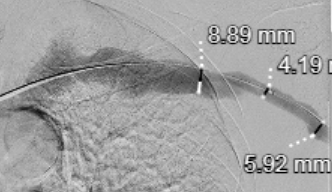

Post-procedure angiography showed improvement in the stenotic lesion, no contrast extravasation, and a minimum lumen diameter of 4.19 mm at the most narrowed site.

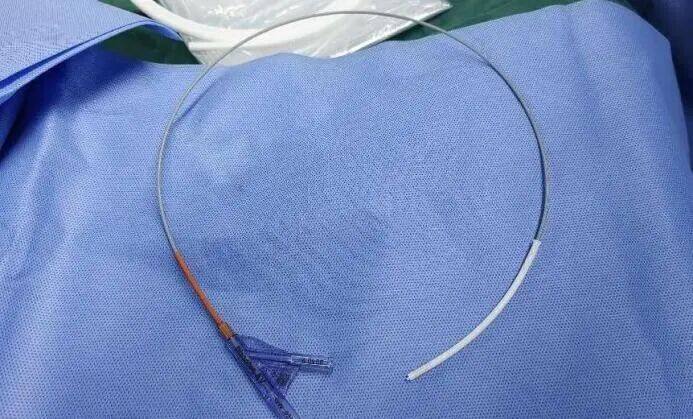

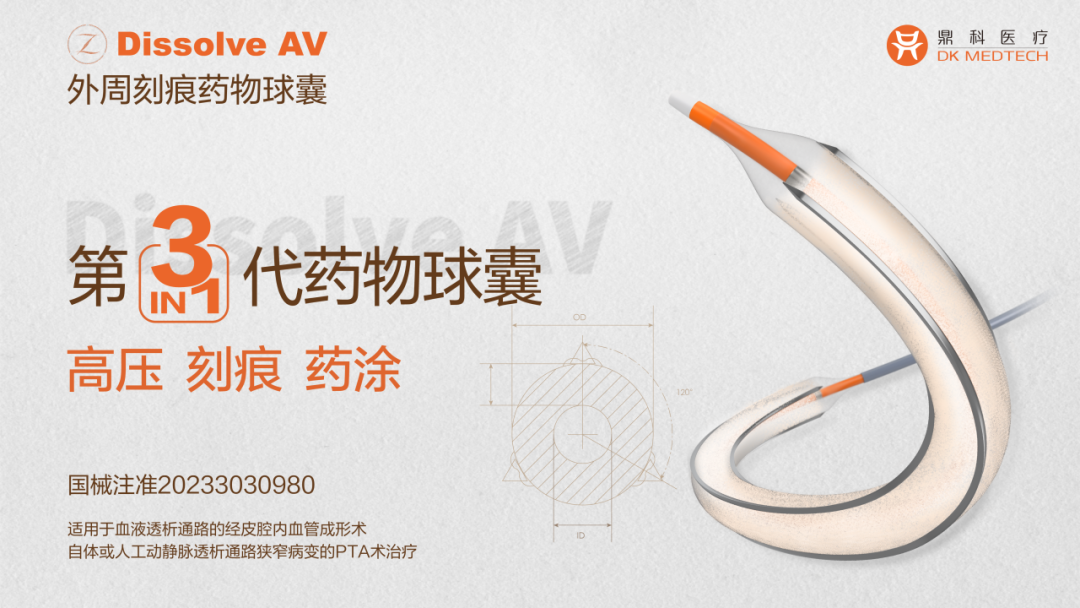

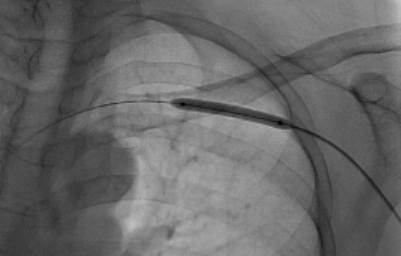

Heparin saline pre-flush preparation ready: 6mm×6cm scored drug-coated balloon (DK Medtech Dissolve™ AV) was exchanged over the guidewire and positioned. The scored drug-coated balloon (DK Medtech Dissolve™ AV) was then inflated at 22-26 ATM for a duration of 2 minutes and 30 seconds.

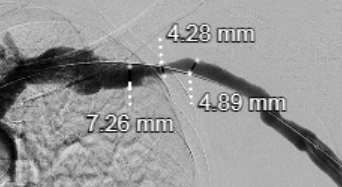

Post-procedure angiography showed significant resolution of the stenotic lesion, with the narrowest point measuring 4.28 mm in diameter.

Discharge Status:Good postoperative thrill of the internal fistula, no abnormal pulsation was palpated. Postoperative dialysis went smoothly with a dialysis flow rate of 260ml/min and venous pressure of 98mmHg. No pain was reported at the internal fistula site during dialysis.

Device Features/Usage Tips:

1. Preoperative balloon needs only to be flushed with saline in the balloon catheter lumen; soaking of the balloon end is not recommended to avoid drug loss.

2. Do not remove the coating protective sleeve; advance the balloon along the guidewire to the sheath opening until it is locked at the sheath opening.

3. If the lesion has been fully dilated before the filling pressure is less than RBP, please maintain the pressure for 2 minutes to ensure adequate drug adhesion. If the lesion has not been fully dilated when the filling pressure reaches RBP, still maintain the pressure for 2 minutes, then release the pressure and rotate the balloon approximately 60° before re-dilating to RBP, and maintain the pressure for 1 minute. If there is significant residual stenosis or elastic recoil in the lesion, post-dilation can be performed using an ultra-high-pressure balloon or a high-pressure balloon with a diameter 1mm larger than Dissolve AV.

1. 2023-06-15 Revascularization of Left Upper Arm Cephalic Vein Arch Stenosis Occlusion + Catheter-directed Thrombolysis of Upper Limb Veins + 5mm High-pressure Balloon Dilation + Cephalic Vein Arch Reconstruction

The patient lies in a supine position. Preoperative color Doppler ultrasound examination showed that the entire length of the arteriovenous fistula from the anastomosis to the cephalic vein arch in the upper arm was tortuous, dilated, and thrombosed. After routine disinfection and draping, a 6F vascular sheath was inserted towards the anastomosis at the site of fistula dilation in the middle of the upper arm. Under vascular ultrasound guidance, a 0.35 super-smooth guidewire was advanced to the brachial artery. A Boston Scientific MUSTANG 5*40mm dilation balloon (produced by Boston Scientific) was then advanced over the guidewire. After withdrawing the guidewire, 100,000 units of urokinase were injected into the balloon. A 6F vascular sheath was placed 5 cm upstream from the anastomosis towards the proximal end under vascular ultrasound guidance with a 0.35 super-smooth guidewire. However, the guidewire could not pass through the tortuous segment in the upper-middle part of the upper arm. A Boston Scientific MUSTANG 5*40mm dilation balloon was advanced over the guidewire, and after withdrawing the guidewire, 100,000 units of urokinase were injected into the balloon. The balloon was used to compress the thrombus, and most of it dissolved, restoring blood flow. The 6F vascular sheath in the middle of the upper arm was removed, and the puncture site was sutured with a 5.0 vascular suture. Again, a 6F vascular sheath was inserted towards the proximal end at the tortuous part of the upper arm under vascular ultrasound guidance with a 0.35 super-smooth guidewire. The guidewire could not pass through the cephalic vein arch. A Boston Scientific MUSTANG 5*40mm dilation balloon was advanced over the guidewire, and after withdrawing the guidewire, 100,000 units of urokinase were injected into the balloon. The balloon was used to compress the thrombus, and most of it dissolved, restoring blood flow. However, the occluded segment of the cephalic vein arch still could not be passed through. Another attempt was made to pass through the stenotic segment of the cephalic vein arch using the balloon in conjunction with the guidewire. A 0.14 guidewire was used but still could not pass through. During an attempt with the 0.35 guidewire, the guidewire became lodged and fractured, leaving a residual fragment at the cephalic vein arch, where a thrombus formed again in the cephalic vein arch. After informing the patient's family, open surgery was performed.

The patient underwent brachial plexus anesthesia, followed by re-disinfection and draping. A 3 cm surgical incision was made in the middle segment of the upper arm to free a 2 cm length of the cephalic vein, which was controlled with a rubber band to stop blood flow. A 7 cm incision was then made 1 cm below the mid-clavicle to bluntly dissect the cephalic vein arch. The cephalic vein arch was found to be tortuous and dilated, with a stenosis of approximately 3 cm at the junction with the subclavian vein. The vessel was transected at the stenotic site, and a complete 5 cm long segment of 0.35 guidewire tip was removed. Upon releasing the blood flow, a thrombus measuring about 10 x 0.8 cm was expelled. Color Doppler ultrasound confirmed no residual thrombus within the arteriovenous fistula. A Boston Scientific 5*40mm angioplasty balloon (MUSTANG) was used to dilate the cephalic vein arch near the subclavian vein. After dilation, a 2 cm oblique incision was made to trim the stenotic area and valves. The tortuous cephalic vein was repaired with a 7.0 vascular suture patch. Following restoration of blood flow, the vessel diameter measured approximately 0.4 cm. Color Doppler ultrasound showed smooth blood flow. After thorough hemostasis, the vascular sheath was removed, and the incisions were sutured layer by layer. The operation was completed.

2. Upper Limb Venous Catheter Thrombolysis + Surgical Thrombectomy + Cephalic Vein Arch Reconstruction + 6mm High-Pressure Balloon Dilation on 2023-06-16

The patient lies in a supine position, exposing the left upper limb. Preoperative color Doppler ultrasound examination showed thrombosis throughout the arteriovenous fistula anastomosis to the cephalic vein arch. After routine disinfection and draping, the original mid-upper arm skin incision was separated to expose the cephalic vein. A 0.5 cm longitudinal venotomy was performed, and a vascular clamp was used to remove the thrombus. Blood flow was restored, ejecting multiple small thrombi. The vessel was sutured with 7-0 vascular sutures. Simultaneously, the original mid-clavicle skin incision was separated to expose the cephalic vein arch. The vessel was disconnected at the original suture site, and a long segment of thrombus was removed with a vascular clamp. Heparin saline was used for flushing, and the proximal vessel was found to be patent upon exploration. The tortuous part of the cephalic vein was trimmed and anastomosed with 7-0 vascular sutures. After restoring blood flow, re-thrombosis of the distal arteriovenous fistula was observed, and stenosis was visible in the cephalic vein near the shoulder. The original vascular suture in the mid-upper arm was incised again, and the thrombus was removed with a vascular clamp. A 6F vascular sheath was inserted into the mid-upper arm, and 100,000 units of urokinase were injected before inserting a 0.35 super-slip guidewire. A Boston Scientific MUSTANG 6*40mm dilation balloon was advanced along the guidewire to compress the thrombus. The direction of the vascular sheath was adjusted, and the guidewire was advanced proximally. A Boston Scientific MUSTANG 6*40mm dilation balloon was then inserted along the guidewire to the stenotic area of the cephalic vein near the shoulder. The stenosis was dilated three times at 16-20 ATM, expanding from 2mm to 4mm. The balloon was removed, and the blood flow signal increased. Bleeding occurred again at the cephalic vein near the mid-clavicle, likely due to vascular sclerosis and thin vessel walls. The area was resutured with 7-0 vascular sutures. Color Doppler ultrasound confirmed continuous arteriovenous fistula blood flow without significant thrombosis, and thrill was palpable. The vascular sheath was removed, and the subcutaneous tissue and skin of the mid-upper arm and mid-clavicle were sutured successively. Sterile dressings were applied.

3. Upper extremity venography + Superior vena cava venography + Catheter-directed thrombolysis of upper extremity veins + Catheter aspiration thrombectomy + 5mm high-pressure balloon dilation on 2023-08-21

The patient lies in a supine position. After routine disinfection and draping, the puncture site is selected near the shoulder on the left cephalic vein of the upper arm. Successful puncture is achieved towards the distal end. Heparin is administered intravenously for prophylactic anticoagulation, and an 8Fr vascular sheath is inserted. Under ultrasound guidance, the guidewire is adjusted and, with the assistance of a balloon catheter, passes smoothly through the thrombus in the cephalic vein of the upper arm and successfully reaches the anastomosis site. The guidewire is then withdrawn, and urokinase is injected locally into the thrombus via the balloon for thrombolysis. After local massage to partially dissolve and soften the thrombus, the guidewire is exchanged to insert and connect the thrombectomy catheter (AcoStream by Aortec) system. Under ultrasound guidance, repeated thrombus aspiration begins within the thrombus, aspirating most of the thrombus distal to the puncture site. With increased pressure in the proximal lumen, an 8Fr vascular sheath is subsequently inserted from the lower segment of the upper arm towards the proximal end. Attempts are made to pass through the tortuous lumen of the mid-upper arm to reach the proximal thrombus site via the guidewire, but repeated attempts fail. The proximal sheath is then reversed towards the proximal end, and a guidewire is inserted through the sheath. With the aid of the guidewire, the thrombectomy catheter is placed at the occluded cephalic vein arch and thrombus is aspirated from the proximal to the distal end. Afterwards, a guidewire and a 5*60mm balloon are inserted through the sheath and successfully passed through the occluded lesion of the cephalic vein arch into the left subclavian vein. Gradual dilation is performed repeatedly at 8-22 ATM, restoring flow in the locally occluded lesion and the confluence of the subclavian vein. Post-dilation, the lumen is recanalized, and blood flow is partially restored. Follow-up ultrasound indicates residual thrombus near the anastomosis area in the middle and lower segments of the upper arm. An 8Fr vascular sheath is again inserted towards the distal end in the mid-cephalic vein, and the thrombectomy system is inserted through the sheath for thrombectomy. Most of the thrombus is aspirated, and thrombus detachment occurs, drifting to the cephalic vein arch. Thrombectomy is again performed using the thrombectomy system via the proximal sheath, combined with biopsy forceps for thrombus removal. Subsequently, a 5*60mm balloon is used to dilate at the cephalic vein arch, with the longest sustained inflation time being one minute. After completion, the local lumen is recanalized, and ultrasound shows a minimum inner diameter of 3mm. Angiography through the sheath confirms recanalization of the cephalic vein in the upper arm, the cephalic vein arch, the left subclavian vein, the left brachiocephalic vein, and the superior vena cava. Significant thrill is noted in the cephalic vein of the upper arm. The balloon, guidewire, and vascular sheath are sequentially removed, and the puncture site is sutured with 5-0 PROLENE thread. Hemostasis is achieved, followed by dressing application, concluding the procedure.
