Stenosis of autologous/artificial arteriovenous fistula (AVF/AVG) is the most common complication in hemodialysis patients. Percutaneous transluminal angioplasty (PTA) has become the primary method for maintaining dialysis access. However, the blunt and irregular tearing of the intima and part of the media by traditional balloons during PTA excessively damages the endothelial vessels, causing intense proliferation of vascular smooth muscle cells and macrophages, which quickly leads to restenosis.

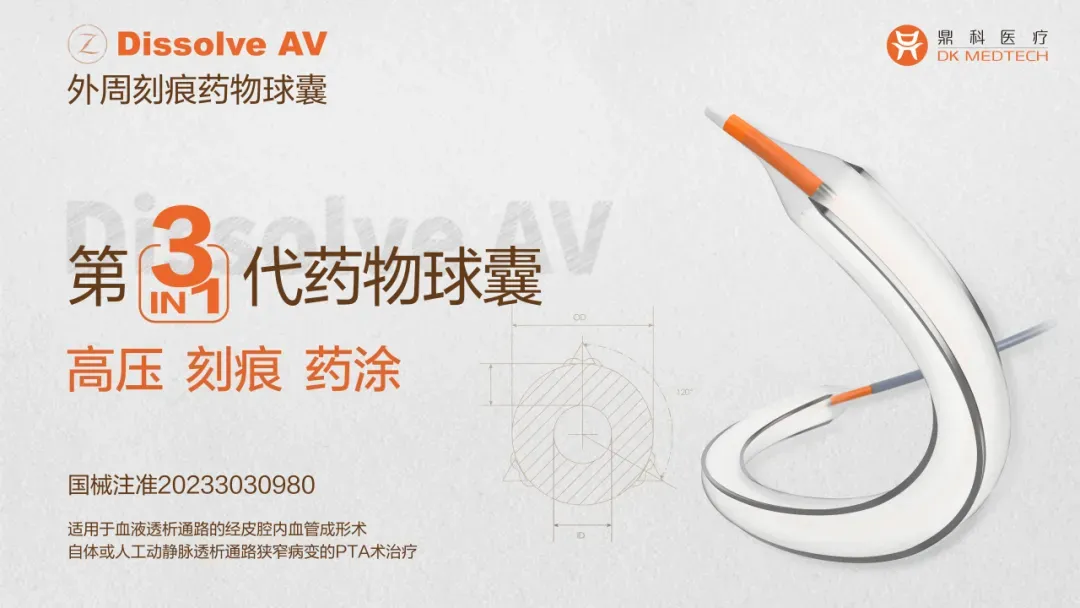

In recent years, there has been continuous international exploration and clinical research on drug-coated balloons and other devices for PTA treatment of dialysis access. DK Medtech has developed the Dissolve™ AV Scoring Drug Balloon, which integrates three features—"scoring," "high-pressure," and "drug-coating"—and is the world's first third-generation drug balloon:
Directional scoring: Uniform and regular tearing of the intima reduces damage from blunt rupture.
High Burst Pressure: For high-resistance lesions, improving technical success rate.
Paclitaxel Coating: Effectively Inhibits Excessive Proliferation of Smooth Muscle Cells.
DK Medtech Special Release[Professor Yang Jun's Team: Scored Drug-Coated Balloon for the Treatment of Recurrent AVF Intimal Hyperplastic Stenosis] Case Presentation, demonstrating the detailed operations of each case and the clinical application of advanced equipment and instruments. From the formulation of treatment strategies for different cases, standardized intraoperative procedures and technical applications, complication prevention, perioperative management, and other aspects, the aim is to promote the standardization of diagnosis and treatment for vascular stenosis and occlusive diseases, strengthen technical exchanges and experience sharing among doctors, with the hope of providing new ideas and methods for future diagnosis and treatment, benefiting more clinical patients.
Scored Drug-Coated Balloon Therapy
Recurrent AVF Intimal Hyperplastic Stenosis
Yang Jun, First Affiliated Hospital of Xinxiang Medical University
Patient Information
Basic Information:Female, 34 years old.
Chief Complaint:Elevated serum creatinine for 12 years, arteriovenous fistula stenosis detected half a day ago.
History of Present Illness:Twelve years ago, a physical examination revealed elevated serum creatinine, with the highest level reaching 390 umol/L. There were no symptoms of nausea, vomiting, hematuria, or foamy urine. The patient intermittently took medication but did not undergo regular follow-up examinations during this period. Over four years ago, the patient visited the local county hospital due to nausea and vomiting. Renal function tests showed a creatinine level of 900 umol/L. After ruling out surgical contraindications, the patient underwent an "autologous arteriovenous fistula formation + long-term internal jugular vein catheter placement" in September 2019. Following discharge, the patient received regular hemodialysis three times per week. Due to recurrent fistula stenosis, the patient underwent "arteriovenous fistula balloon angioplasty" multiple times on 2019-12-26, 2020-04-15, 2020-09-11, 2021-03-17, 2021-09-15, 2022-04-12, 2022-09-15, 2023-10-30, and 2024-03-20. A recent outpatient ultrasound examination performed half a day prior revealed arteriovenous fistula stenosis, leading to admission to our department. On July 3, 2024, the patient is scheduled to undergo a cutting balloon drug treatment.
Past Medical History:Hypertension for 5 years, currently treated with oral antihypertensive medication, blood pressure is under reasonable control.
Physical Examination:Increased pulsation and weakened thrill at the autologous arteriovenous anastomosis site in the left upper arm.
Admission Diagnosis:Stenosis of autologous arteriovenous fistula, chronic kidney disease stage 5, obstructive nephropathy, on hemodialysis, hypertension.
Previous interventional treatment
Time | Main Treatment Process | |
2019-12-26 | 7mm High-Pressure Balloon Catheter | |
2020-04-15 | 6mm Ultra-High Pressure Balloon Catheter | |
2020-09-11 | 6mm High-Pressure Balloon Catheter | |
2021-03-17 | 6mm Ultra-High Pressure Balloon Catheter | |
2021-09-15 | 6mm Ultra-high Pressure Balloon Catheter | |
2022-04-12 | 6mm Ultra-High Pressure Balloon Catheter | |
2022-09-15 | 6mm Peripheral Cutting Balloon Catheter | |
2023-05-15 | Drug-Coated Balloon (External Hospital) | |
2023-10-30 | 7mm Notched Balloon Catheter | |
2024-03-20 | 6mm Notched Balloon Catheter |
Preoperative Analysis
Preoperative Analysis:More than four years ago, the patient was hospitalized for arteriovenous fistula stenosis and low blood flow, and underwent balloon angioplasty for the artificial arteriovenous fistula. Post-surgery, restenosis occurred intermittently, averaging once every six months. The patient's previous use of high-pressure balloon dilation had unsatisfactory results. For this hospitalization, a plan is in place to treat the lesion using a high-pressure scoring drug-coated balloon.
Preoperative Assessment:Radial artery-cephalic vein arteriovenous fistula, with intimal hyperplastic stenosis at the outlet tract origin.
Surgical Objective:
Short-term Goals:Solve the problem of stenosis in patients' internal fistulas to meet the blood flow requirements for dialysis.
Secondary Objectives:Prolong the restenosis time of patients' internal fistulas and reduce the number of interventions for patients.
Surgical Strategy/Plan:Using 6.0mm * 60mm DK Medtech Dissolve™ AV Scoring Drug-Coated Balloon and 5.0mm * 40mm Peripheral High-Pressure Balloon to dilate arteriovenous fistula stenosis.
Surgical Procedure

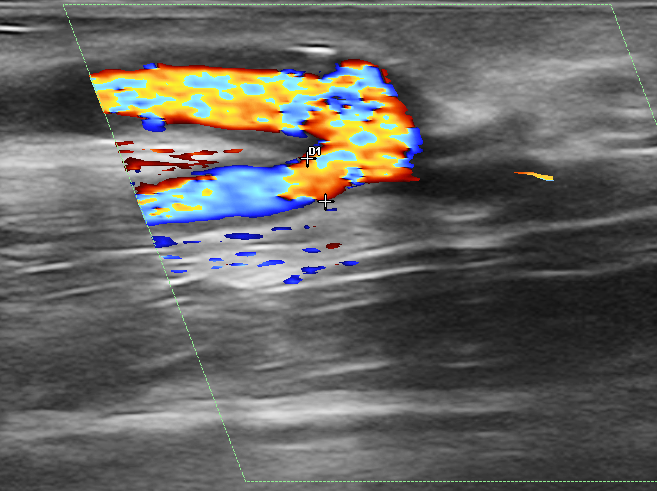

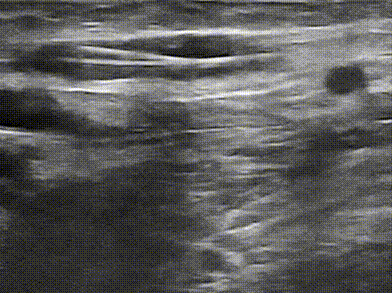

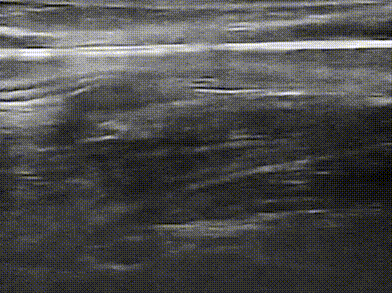

Preoperative assessment: Color Doppler ultrasound showed stenosis at the origin of the outflow tract in the left upper limb, with a minimum inner diameter of approximately 1.5 mm, length of 37 mm, and intimal thickness of 1.4 mm.
The patient lies in the supine position, with the left forearm in external rotation. After routine disinfection and draping, 2% lidocaine is used for infiltration anesthesia on the venous outflow side near the elbow of the left arm. The puncture needle is inserted, and once the blood flow from the arteriovenous fistula is observed, the guidewire is advanced. The needle is withdrawn, the skin is punctured, and a 7F sheath is inserted. Heparin 20mg is administered intravenously. The guidewire passes through the lesion.

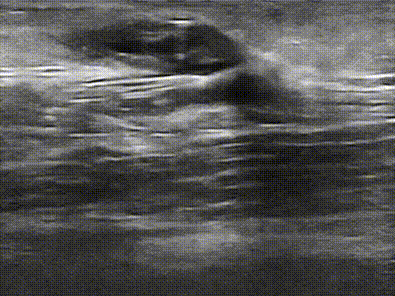

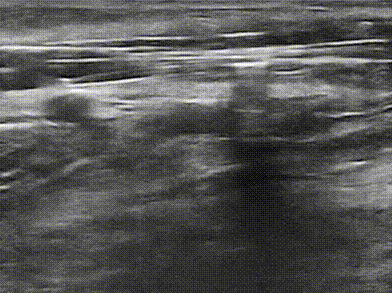

Use 6.0mm * 60mmDK Medtech Dissolve™ AV Scoring Drug-Coated Balloon, the balloon reaches the lesion site, slowly inflating to 14atm, and continues to maintain pressure until 120 seconds.
Stenosis improved in the late dilation phase, and pressure was released after 120 seconds.

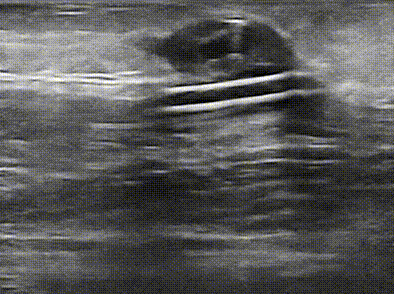

After rotating the balloon 60°, it reached the lesion site again and was dilated again at 14atm for 60 seconds.
Assessment after dilation, postoperative inner diameter 4.1mm.
The puncture site was selected at the distal radial artery. After infiltration anesthesia with 2% lidocaine, the puncture needle was inserted. Upon observing the outflow of arteriovenous fistula blood, a guidewire was advanced, the needle was withdrawn, the skin was incised, a 5F sheath was inserted, and 20mg of heparin was administered intravenously.The guidewire passed through the lesion into the proximal radial artery.。

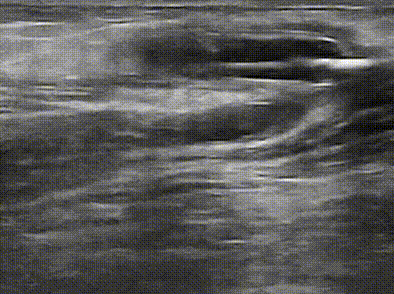

Use 5.0mm * 40mm peripheral high-pressure balloon, the balloon reaches the proximal end of the radial artery and is slowly pressurized to 8 atm for dilation, continuing to maintain pressure until 30 seconds.
The assessment was performed after dilation, with the inner diameter increasing from 2.1mm preoperatively to 3.2mm postoperatively.

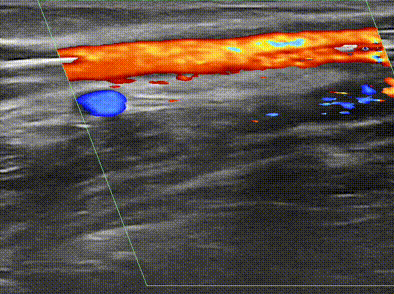

The scored drug-coated balloon and sheath used during the surgery showed a blood flow rate of 1688 ml/min measured by ultrasound on the first day after the operation.
Follow-up

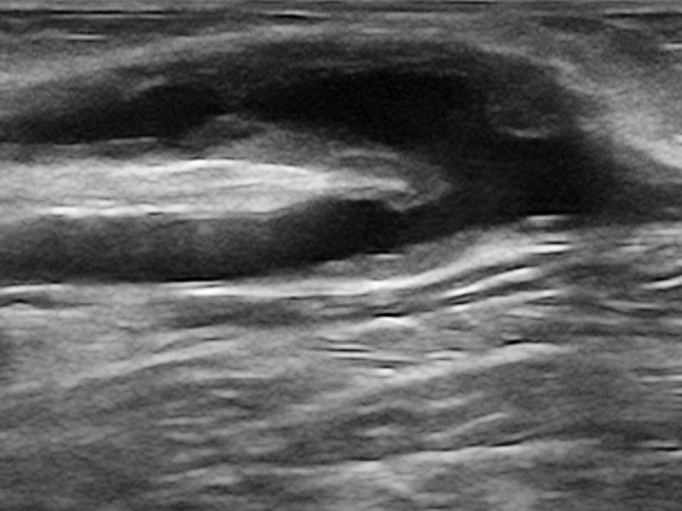

Discharge Status:The patient was discharged smoothly, and the blood flow of the arteriovenous fistula met the requirements for dialysis in the local area. In August, a follow-up examination showed intimal thickening, with the distal vein measuring 3.7mm and a flow rate of 1574ml/min.
Case Summary

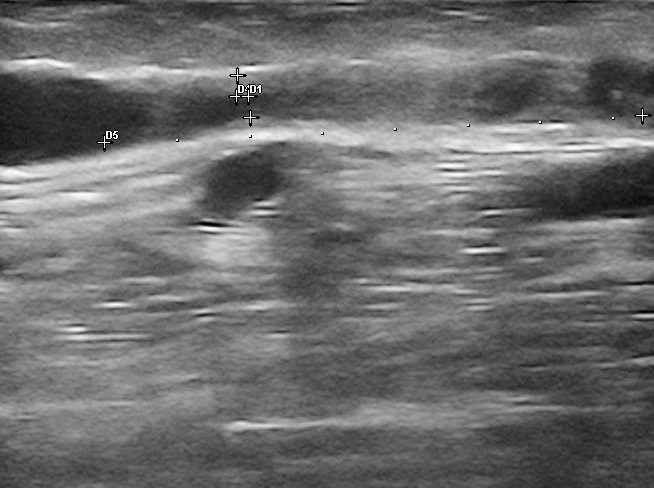

Preoperative Assessment Key Points:Preoperative ultrasound evaluation showed that the color Doppler ultrasound revealed stenosis at the origin of the outflow tract in the left upper limb, with the narrowest inner diameter approximately 1.5mm, intima thickness 1.4mm, and fistula flow rate 320ml/min.
Surgical Strategy/Technical Key Points:
In December 2019, this patient underwent balloon angioplasty for arteriovenous fistula stenosis. The use of a high-pressure balloon dilation yielded unsatisfactory results, with recurrent stenosis occurring during the period.
DK Medtech Dissolve™ AV Scoring Drug-Coated BalloonIn addition to having high-pressure characteristics, the dilatation catheter also features a scoring element on its surface that focuses pressure for effective and precise incision of the intima and fibrous ring, improving dilatation efficiency and increasing lumen gain. The balloon surface is coated with paclitaxel, which effectively inhibits intimal hyperplasia at the lesion site, enhancing long-term patency rates.
In this case, it can be seen that the lesion was fully opened when pressurized to 14atm.
Characteristics/Usage Tips of the Device:
DK Medtech Dissolve™ AV Scoring Drug-Coated BalloonThree nickel-titanium alloy triangular scribed components are attached to the surface of the dilation catheter, and the balloon surface is coated with a paclitaxel drug coating. After fully dilating the lesion, paclitaxel is used to inhibit the hyperplastic intima. In this case, after using the balloon once, the balloon was rotated approximately 60 degrees and then used again to dilate the lesion, allowing for more thorough expansion treatment of the stenotic lesion.
DK Medtech Dissolve™ AV Scoring Drug-Coated BalloonDuring the use of the dilation catheter, it is important to note that when pressurizing up to 8 atm, the pressure should be increased by 2 atm every 3 seconds. Avoid pressurizing too quickly to prevent complications such as vascular rupture and dissection to the greatest extent.
For lesions that are resistant to initial dilation, maintaining the burst pressure for a period of time can fully utilize the function of the scoring wire, and there is still an opportunity to completely dilate the stenosis.
